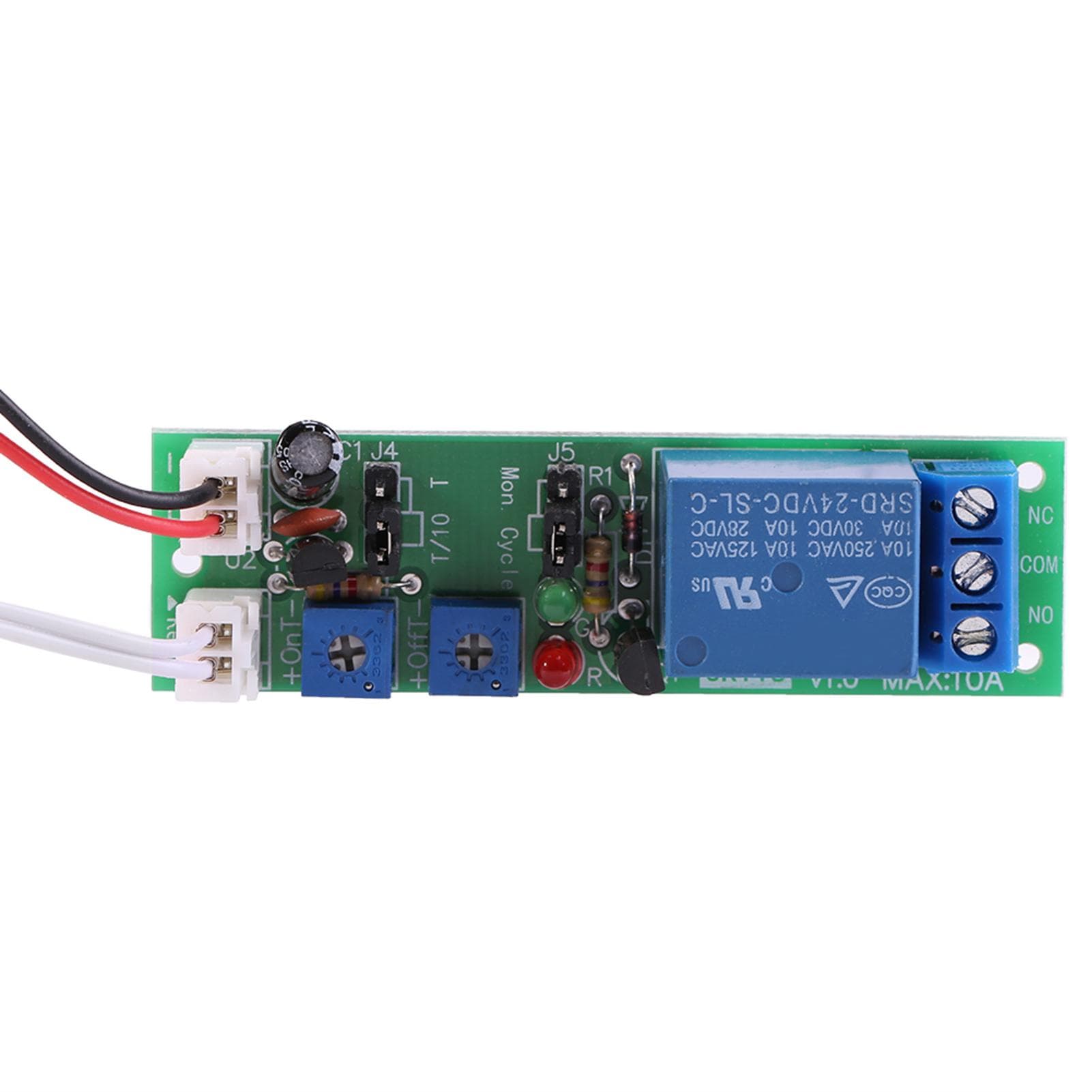

Adjustable Cycle Timer Delay OnOff Switch Relay Module (DC24V,030min)

About this item

• Features: It is a timer relay module with high precision, stable and reliable performance . S u pport 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper . Co nnect 2 wires of K ey if you need modu le to work recurrently after power on . T here are many voltage and tim e range f or your choice, b oth on time and off time are adjustable . W idely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc. Specifications: Type: DC5V,030minDC5V,024hrDC12V,0120minDC12V, 024hrDC24V,015minDC24V,030min (Optional) Quiescent Current: <10mA Dynamic Current: 45mA@12V; 90mA@5V; 30mA@24V Contact: 1 group NO+NC Load Capacity: 10A(AC0250V, DC030V) Size: 70*20*18mm 2.75*0.78*0.7 Time Accuracy: Max value*0.001 Mon. Mode: 1. The module Poweron, When triggered the relay is switched on, timer delay off. 2. When triggered on the delay process, ag ain triggered, it will immediately interrupt the delay. Cycle Mode: 1. The module Poweron, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay on. Such cycle. T1 and T2 are set by two adjustable resistors, respectively. 2. When trig gered on the delay process, again triggered, it will immediately interrupt the delay. Package Includes: 1 x Timer Relay Module .It is a timer relay module with high precision, stable and reliable performance Support 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper Connect 2 wires of Key if you need module to work recurrently after power on There are many voltage and time range for your choice, both on time and off time are adjustable Widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc
