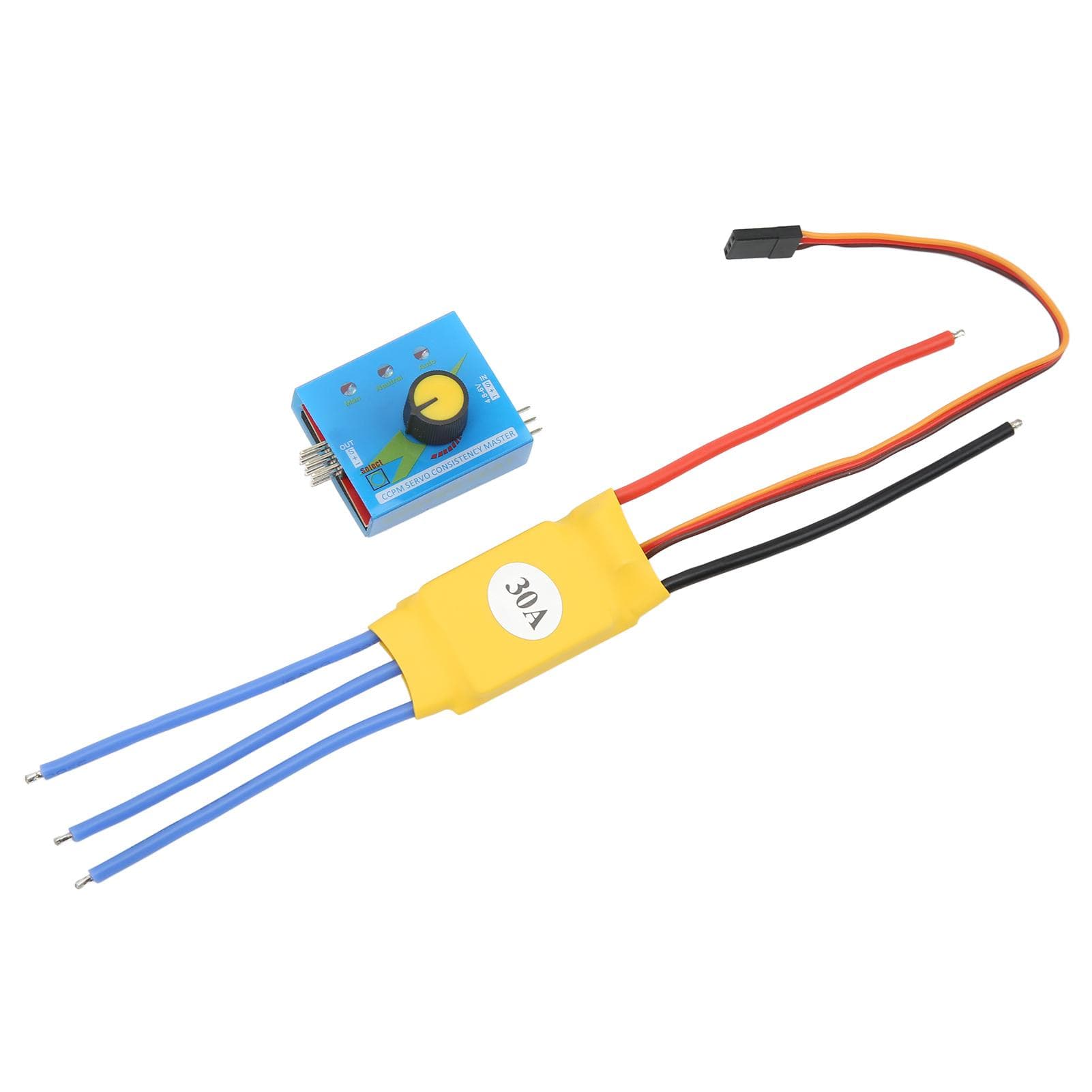

360W 30A HighPower 12V DC Brushless Motor Speed Control PWM Controller

About this item

• Description: This controller is designed for high power brushless motor. It is small but has many functions, including steering gear test function. Feature: With micro single chip system, this speed control can achieve simple system programming, which can suit better highspeed high power brushless motors. It has several functions: 1.Safety Startup: To avoid any injury, the motor will not start up immediately if the potentiometer of speed controller is not at the lowest gear, which is necessary for highspeed highpower motor to protect user s safety. 2. Temperature Protection: The speed control has aluminum heat sink, which allows it work at 30 A continuously. When temperature reaches 110 celsius , temperature detect system will send a protection signal and system will auto decrease 60percent power output to protect speed control and motor. It will back to normal power after temperature is decreased. To protect the actuator module, please dissipate heat during longtime using. 3. The signal loss prevention: Auto shut down when there is no signal detected from PWM signal generator(potentiometer ). 4. Power Identification System: The speed control has power identification system, which is designed for high speed high power motors such as in model plane. It is not suitable for lowpower brushless motors. 5, Programming Functions: With singlechip control system, some functions could be altered: a, Startup: Flexible slow startupdirect startup b, Braking: Reverse load quick brakingfree braking c, Adjustable Timing: Smallmediumlarge d, Low Voltage Protection: Lowmediumhigh e, Battery Types: Lithium nickel chromeNIMHplumbic acid 6. Back to Factory Settings: Wrong operation can be cleared 6. Other Function(please ignore if only used for motor drive ) : The external PWM signal generator can send signal to control speed or to turn steering gear, therefore it can test steering gears less than 55 g. Specifications: Rated Voltage: DC 612.8 V (12 V suggested, no higher than 12.8 V) Rated Current: 30A(no higher than 40 A) Rated Power: 5 V 0.5 A Temperature Protection: 110 celsius speed Control Range: 8percent 98percent Suitable Number of Poles: 218 Startup Methods: Flexible slow startupdirect startup Braking Mode: Reverse load brakingwithout braking speed Control Signal: 8 KHz 16 KHz fixed frequency PWM Steering Gear Test Function: Below 55 g Packaging list: 1 x Speed Controller 1 x Electric Control Board Note : Newstyle and oldstyle are shipped randomly. .Designed for high?power brushless motor Rated Voltage:DC6?12.8 V, Rated current: 30A Rated power:5V 0.5A, Temperature protection:110 celsius Speed control range:8percent 98percent Speed control signal:8 KHZ 16 KHZ fixed frequency PWM
