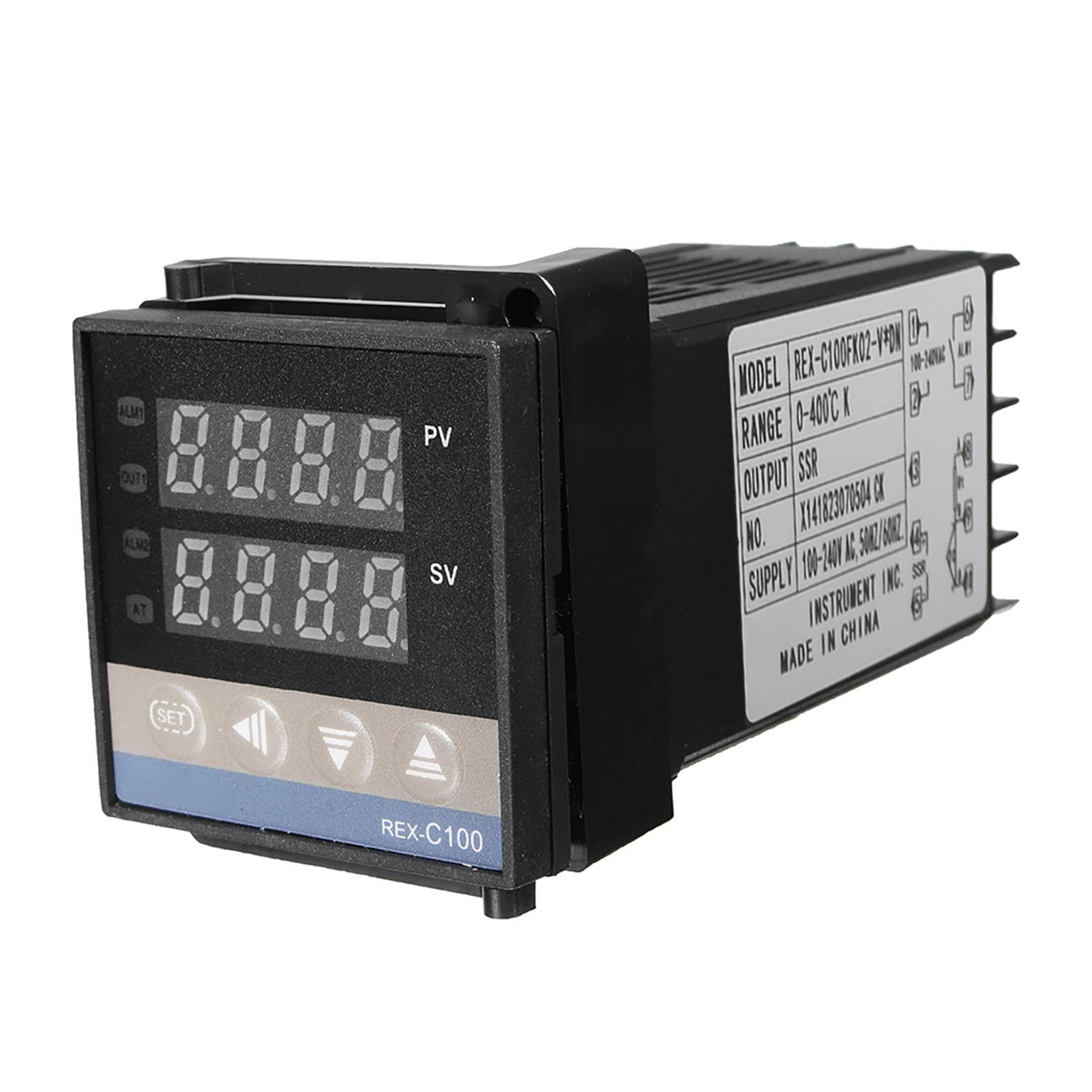

REX C100 Digital PID Temperature Controller Set with 40A SSD 1m K Thermocouple Probe Cable 1 set

About this item

• Feature: 1. PID controller set comes with digital PID REXC100 temperature controller + max.40A SSR + K Thermocouple for your use. 2. This PID temp control is specially designed for one phase solid state relay. 3. Proportional Band (P): 0~full range (ONOFF control when set to 0). 4. Integral time (I): 0~3600 sec (no integral action when set to 0), derivative time (D): 0~3600 sec (no derivative action when set to 0). 5. Setting value (SV) is identical to measuring range (PV). Specification: REX C100 Temperature Controller: 1.3 Digit setup values 2.Measuring accuracy: +0.5percent 3.Cold end compensation tolerance: +2 celsius (can be modified by software in 050 celsius ) 4.Resolution: 14 bit 5.Sampling cycle: 0.5 Sec 6.Power: AC 100240V 5060HZ 7.Process value (PV), Setting value (SV) 8.Output, and selftuning can be indicated by: LED 9.PIN control (including ON OFF, step type PID and continuous PID) 10.Self tuning control 11.Relay output: contact capacity 250V AC 3A (resistive load) 12.Proportional band (P): 0full range (ON OFF control when set to 0) 13.Detective temperature range: 0 to 400 celsius 14.Insulation resistant: >50M ohm(500V DC) 15.Insulation resistant: 1500V ACmin 16.Insulation resistant: Power Consumption < 10 VA 17.Service environment: 050 celsius 18.Environment with no corrosive gas 3085percent RH K Thermocouple Probe Cable: 1.Length: 1M 2.Sensor diameter: 4.5mm 3.Temperature range: 0400 celsius 4.Internal Insulation: Fiberglass 5.External Shielding: Insulated Shielding Maximum 40A SSR: 1.Output Current: 40A 2.Input Voltage: DC 332V 3.Output Voltage: 24380V AC 4.Output Voltage Range: Standard Type Item Size: 48 x 12 x 12mm 1.89 x 0.47 x 0.47in Package List: 1 x PID Temperature Controller 1 x K Type Probe Sensor 1 x Maximum 40A SSR PID controller set comes with digital PID REXC100 temperature controller + max.40A SSR + K Thermocouple for your use. This PID temp control is specially designed for one phase solid state relay. Proportional Band (P): 0~full range (ONOFF control when set to 0). Integral time (I): 0~3600 sec (no integral action when set to 0), derivative time (D): 0~3600 sec (no derivative action when set to 0). Setting value (SV) is identical to measuring range (PV).
