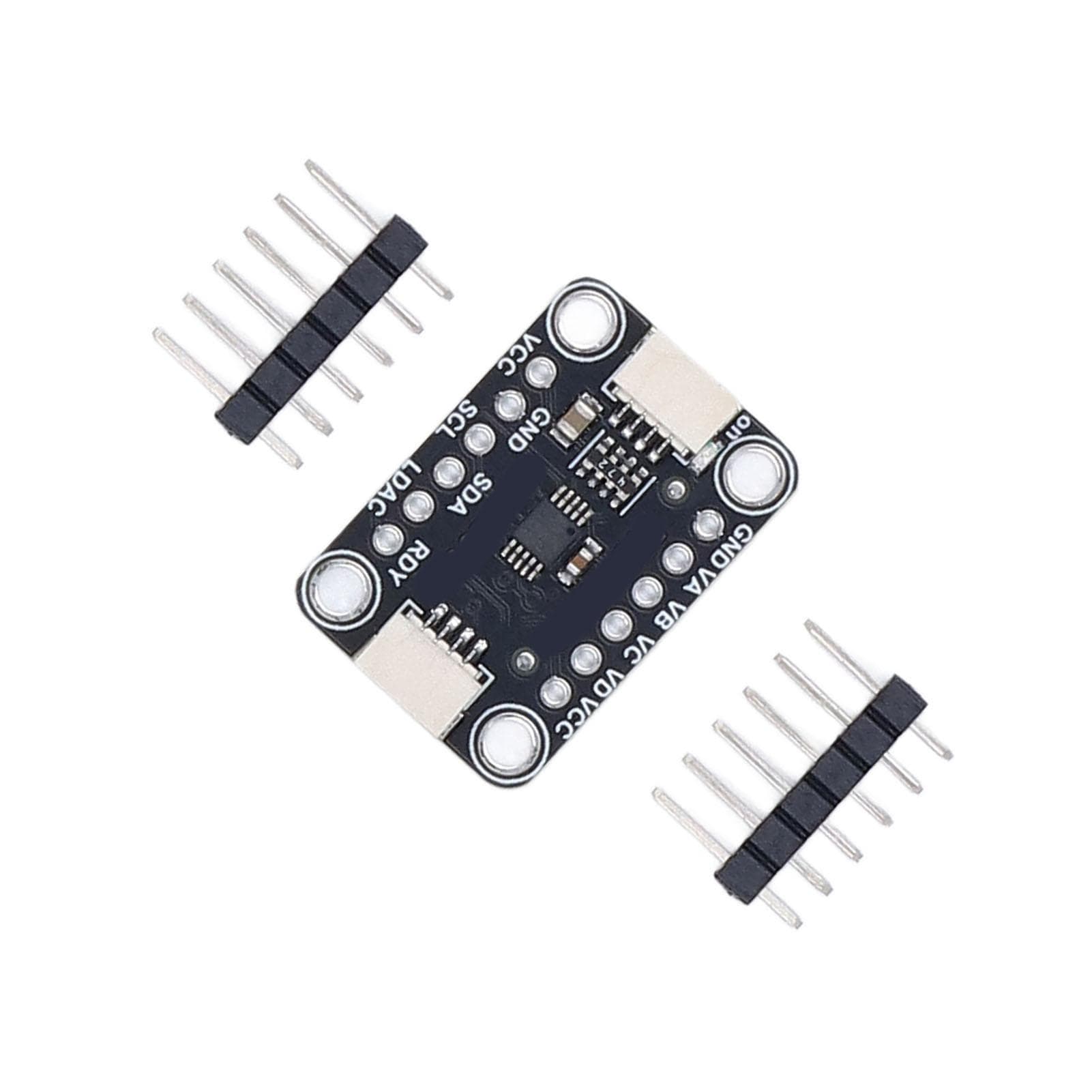

4 Way Digital to Analog Converter Module 12 Bit Quad DAC Board MCP4728 with EEPROM for Stemma QT

About this item

• Feature: 1. WITH MEMORY: 4 Way digital to analog converter module with on board non volatile memory(EEPROM) for DAC code and I2CTM address bits, very convenient 2. 12 BIT: The MCP4728 has four 12 bit Dacs in a small package to meet any of your voltage setup needs. In addition, the DAC Settings can be stored in the internal EEPROM. Once saved to internal non volatile memory, the Settings will load by default when the DAC is powered on, all via I2C 3. OPERATING VOLTAGE: Going one step further, the MCP4728 allow you to choose between two reference voltage sources: the input voltage used to power on the VCC pin, or the internal 2.048V reference voltage. If you use an internal reference voltage (Vref in DAC), you can choose 1X or 2X output gain, resulting in a voltage range of 0V to 2.048 or 0V to 4.096V depending on your application requirements 4. FLEXIBLE AND ADJUSTABLE: By default, you will use the input voltage as the Vref, allowing you to adjust the voltage depending on the input voltage in the range of 0V?3.3V or 5V. Alternatively, use 2.048V Vref for about 3.3V usage and 4.096Vref for about 5V usage 5. TECHNICAL PARAMETERS: Quad digital to analog converter board has 6 us(typical value) fast stability time, 2.7V to 5.5V single power operation, default I2C address 0x60, with 2 pins Specification: Item Type: 4 Way Digital to Analog Converter Module 12 bit voltage output DAC with four buffer outputs Output Voltage Range: Use Internal VREF(2.048V): 0.000V to 2.048V, gain set=1 0.000V to 4.096V, gain set=2 Use External VREF(VDD): 0.000V to VDD +0.2 Least significant(LSB) differential nonlinearity(DNL) (typical value) Fast Stabilization Time: 6 us(typical value) Single Power Supply Operation: 2.7V to 5.5V Default I2C Address: 0x60. Package List: 1 x Converter 2 x Pin HeadersWITH MEMORY: 4 Way digital to analog converter module with on board non volatile memory(EEPROM) for DAC code and I2CTM address bits, very convenient 12 BIT: The MCP4728 has four 12 bit Dacs in a small package to meet any of your voltage setup needs. In addition, the DAC Settings can be stored in the internal EEPROM. Once saved to internal non volatile memory, the Settings will load by default when th OPERATING VOLTAGE: Going one step further, the MCP4728 allow you to choose between two reference voltage sources: the input voltage used to power on the VCC pin, or the internal 2.048V reference voltage. If you use an internal reference voltage (Vref in FLEXIBLE AND ADJUSTABLE: By default, you will use the input voltage as the Vref, allowing you to adjust the voltage depending on the input voltage in the range of 0V?3.3V or 5V. Alternatively, use 2.048V Vref for about 3.3V usage and 4.096Vref for about TECHNICAL PARAMETERS: Quad digital to analog converter board has 6 us(typical value) fast stability time, 2.7V to 5.5V single power operation, default I2C address 0x60, with 2 pins
