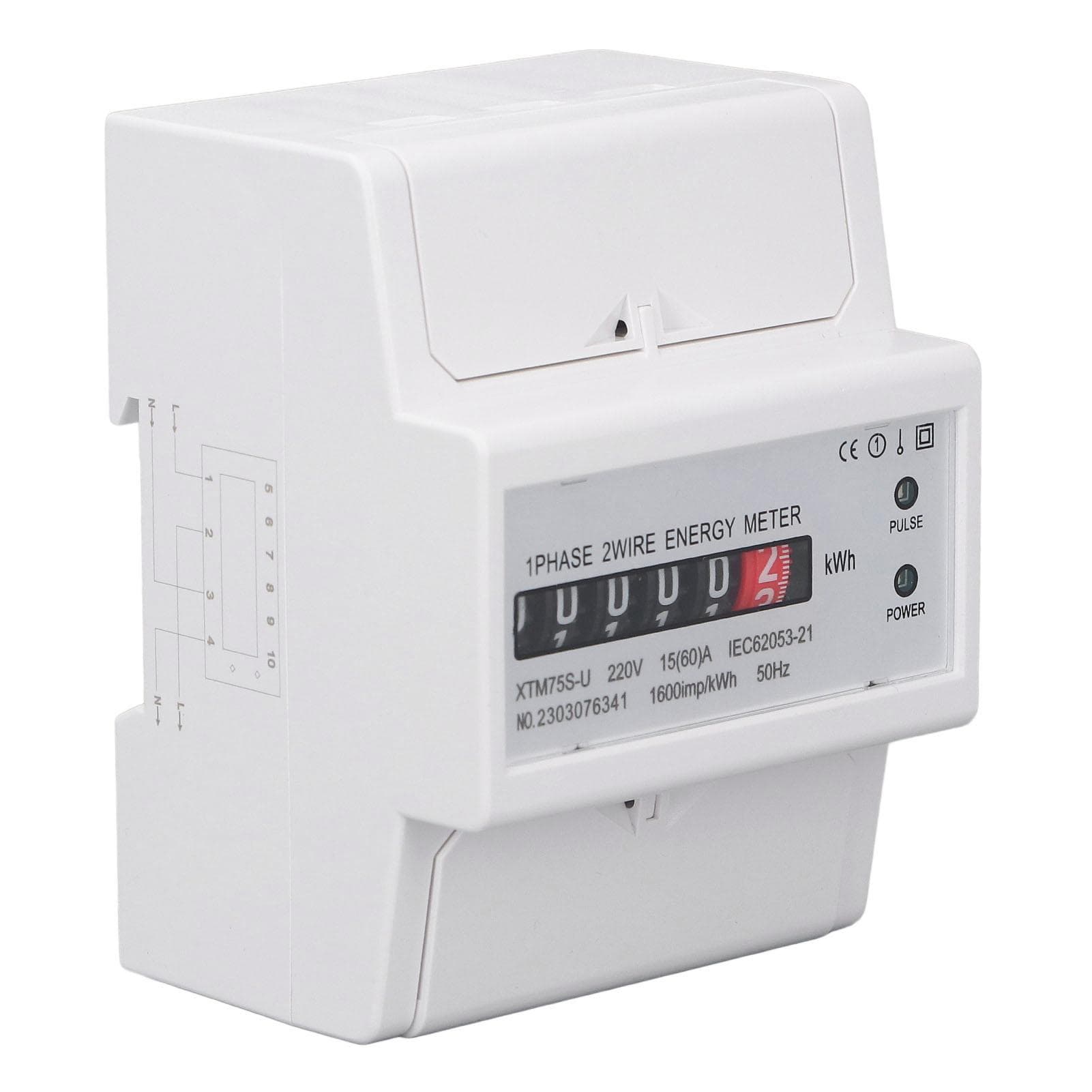

DC220V Single Phase Energy Meter Digital Display 4P 35mm Rail Mount Electricity Power Meter

About this item

• Feature: 1. ENERGY METER: Single phase 4P energy power meter, 5+1 digit counter display, precise measurement of active power consumption. 2. LESS INTERFERENCE: Adopts large scale integrated circuit and precise SMT technology, with strong resistance to electromagnetic interference. 3. COPPER TERMINAL: Adopting pure copper terminal, with good conductivity, ductility, corrosion resistance, ensuring high current operation. 4. 35MM RAIL MOUNT: The energy meter uses 35mm guide rail mounting, easy to install, stable and reliable, can achieve accuracy of up to level 1. 5. EASY CONNECTION: This energy meter has an optoelectronic coupling type energy pulse test output port, which is easy to connect and operate. Specification: Item Type: Energy Meter Model: XTM75S U Voltage Specification: 220V Frequency: 50Hz Current Specification: 15(60)A Working Humidity: less than 75percent Storage Humidity: less than 95percent Accuracy: Level 1 Indicate Current Specification: Reference Current (maximum current) Insulation Performance: AC voltage 4KV, 1 minute, 1.250us waveform impulse voltage 6KV Display Method: Digital Display Installation Method: 35mm Rail Mount Test Method: The electric energy meter has an optoelectronic coupling type electric energy pulse test output port, located on the terminal box. Connect the+5VDC of the test equipment to terminal 9 (positive) and the signal wire S to terminal 10 (negative).. Package List: 1 x Energy Meter1 x User Manual Note: 1. When installing the instrument, follow the wiring diagram in the user manual and install it in a dry and stable place. It can be installed indoors, avoiding direct sunlight, moisture, heat, mould, smoke, dust, sand, and corrosive gases2. After testing the sealing, it can be installed and used. If it is not sealed or stored for a long time, the testing instrument will be replaced3. Only experienced electricians or professional technicians can install instruments. Please read the manual4. Must be installed on a fire resistance wall and not easily shaken5. It is recommended to use copper wire input during wiring to avoid poor contact that may cause the meter to burn6. After the instrument is correct, the indicator light will light up, and the load capacity of the meter is between 0.05lb and lmax. If the capacity exceeds the limit, it will cause burnoutENERGY METER: Single phase 4P energy power meter, 5+1 digit counter display, precise measurement of active power consumption. LESS INTERFERENCE: Adopts large scale integrated circuit and precise SMT technology, with strong resistance to electromagnetic interference. COPPER TERMINAL: Adopting pure copper terminal, with good conductivity, ductility, corrosion resistance, ensuring high current operation. 35MM RAIL MOUNT: The energy meter uses 35mm guide rail mounting, easy to install, stable and reliable, can achieve accuracy of up to level 1. EASY CONNECTION: This energy meter has an optoelectronic coupling type energy pulse test output port, which is easy to connect and operate.
