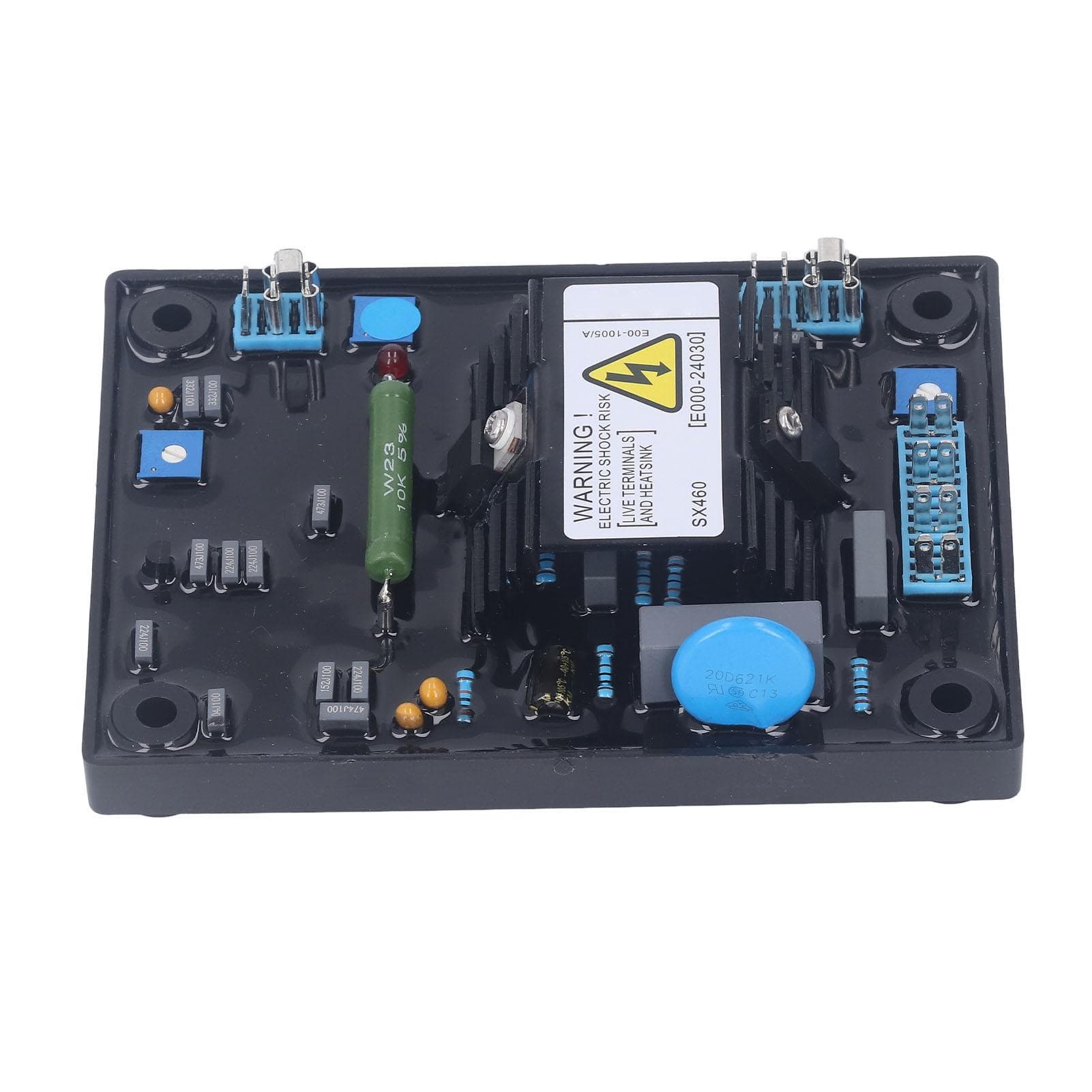

Automatic Voltage Regulator AVR 95?132V 190?264V AC Input 1 Phase for 8KW Brushless Motor

About this item

• Feature: 1. OUTPUT VOLTAGE: 90V DC maximum at 207V AC input, 4A DC continuous, 6A intermittent for 10 seconds, minimum 15ohms resistance. 2. AUTOMATIC REGULATOR: The SX460 is a half wave phase controlled thyristor type automatic voltage regulator AVR that is part of a brushless alternator excitation system. 3. INPUT VOLTAGE: Jumper selectable 95132V AC or 190264V AC, frequency 5060Hz nominal, phase for single phase. 4. EXCELLENT PERFORMANCE: Made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability. 5. EASY TO INSTALL: With a compact size and a light weight as well, the automatic voltage regulator for 8KW brushless generator is very easy to install. Specification: Item Type: Automatic Voltage Regulator Model: SX460 Detection and Power Input Voltage: 95132V or 190264V AC Features: Single phase two wire to choose from jumper copper. Magnetic Field Output: Maximum 90V DC at 207 VAC input. Voltage Regulation Accuracy: +1percent System Requirements: For brushless generator within 80KW. Phases: Single phase Voltage: 90V DC maximum at 207V AC. Input Current: 4A continuously, 6A maximum intermittently in 10 seconds. Working Temperature: 40 celsius ~ +70 celsius Maximum Humidity: Up to 95percent . Package List: 1 x Automatic Voltage Regulator1 x User ManualOUTPUT VOLTAGE: 90V DC maximum at 207V AC input, 4A DC continuous, 6A intermittent for 10 seconds, minimum 15ohms resistance. AUTOMATIC REGULATOR: The SX460 is a half wave phase controlled thyristor type automatic voltage regulator AVR that is part of a brushless alternator excitation system. INPUT VOLTAGE: Jumper selectable 95132V AC or 190264V AC, frequency 5060Hz nominal, phase for single phase. EXCELLENT PERFORMANCE: Made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability. EASY TO INSTALL: With a compact size and a light weight as well, the automatic voltage regulator for 8KW brushless generator is very easy to install.
