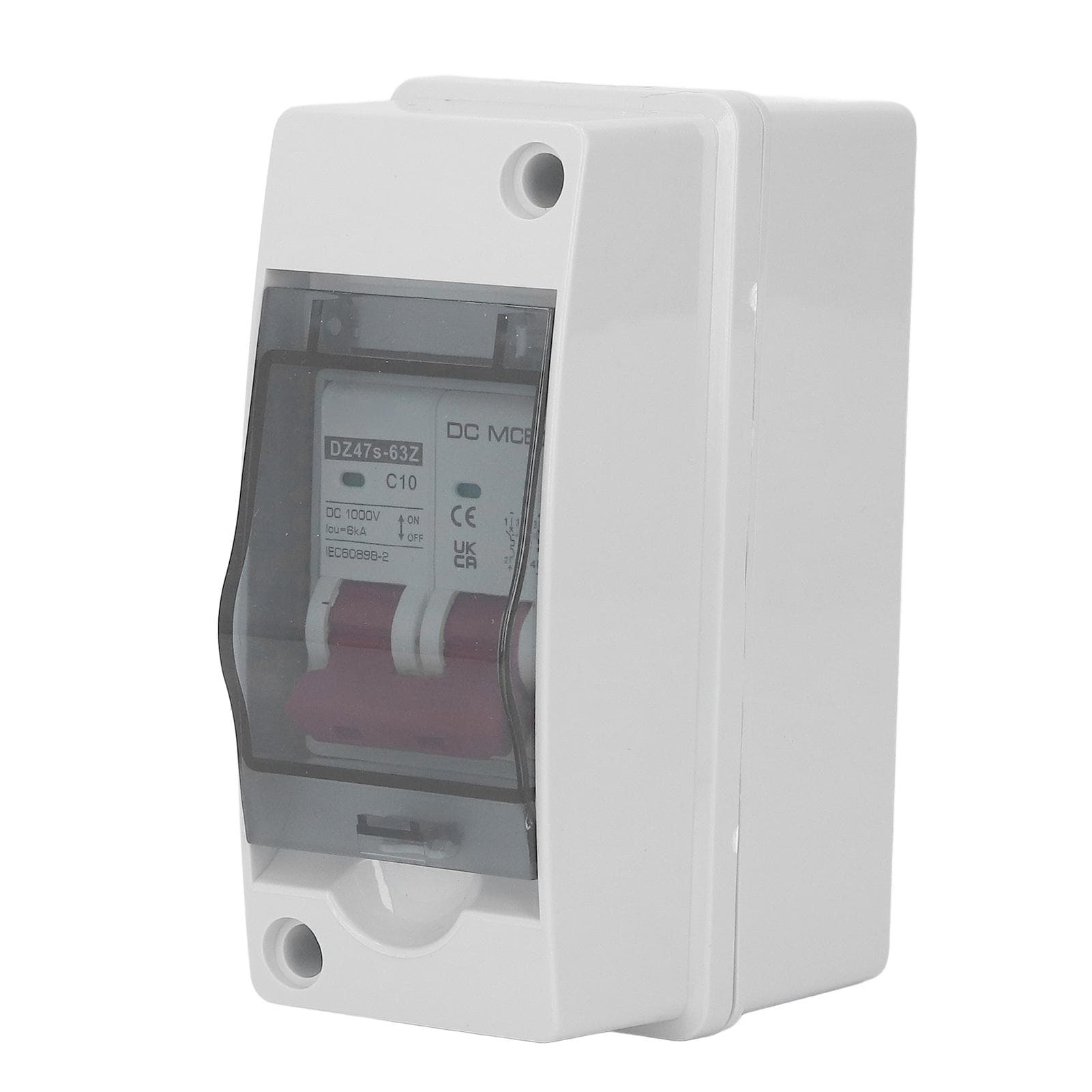

2P DC Circuit Breaker IP65 Waterproof Miniature DC Isolator Switch for Solar PV System 1000V 10A

About this item

• Feature: 1. Suitable Cable: The miniature circuit breaker is suitable for 6 to 8.7mm Diameter 7 to 5 AWG cables, has a wide range of uses. 2. IP65 Grade: Our miniature circuit breaker is IP65 protection grade, waterproof and dust prevention, ideal for indoor and outdoor use. 3. Transparent Cover: The transparent cover plate is convenient for you to check the status of the circuit breaker. 4. Easy Installation: The DC circuit breaker is modular design, very convenient for installation and removal, simple to maintain. 5. Applicable Scenes: The circuit breaker is applicable to PV solar panel grid connected and off grid system, solar power generation system, photovoltaic array, RV, etc. Specification: Item Type: DC Circuit Breaker Material: Pa66 Model: DZ47s 63Z Rated Current: 10A Rated Voltage: DC1000V Rated Ultimate Short Circuit Breaking Capacity (Household Icn): 6000A. Package List: 1 x DC Circuit Breaker (Upper and Lower Parts)1 x Electric Tape2 x Waterproof Cap2 x Waterproof Connector2 x Ring2 x Waterproof Ring6 x Screw4 x Anchor4 x Connection TerminalSuitable Cable: The miniature circuit breaker is suitable for 6 to 8.7mm Diameter 7 to 5 AWG cables, has a wide range of uses. IP65 Grade: Our miniature circuit breaker is IP65 protection grade, waterproof and dust prevention, ideal for indoor and outdoor use. Transparent Cover: The transparent cover plate is convenient for you to check the status of the circuit breaker. Easy Installation: The DC circuit breaker is modular design, very convenient for installation and removal, simple to maintain. Applicable Scenes: The circuit breaker is applicable to PV solar panel grid connected and off grid system, solar power generation system, photovoltaic array, RV, etc.
