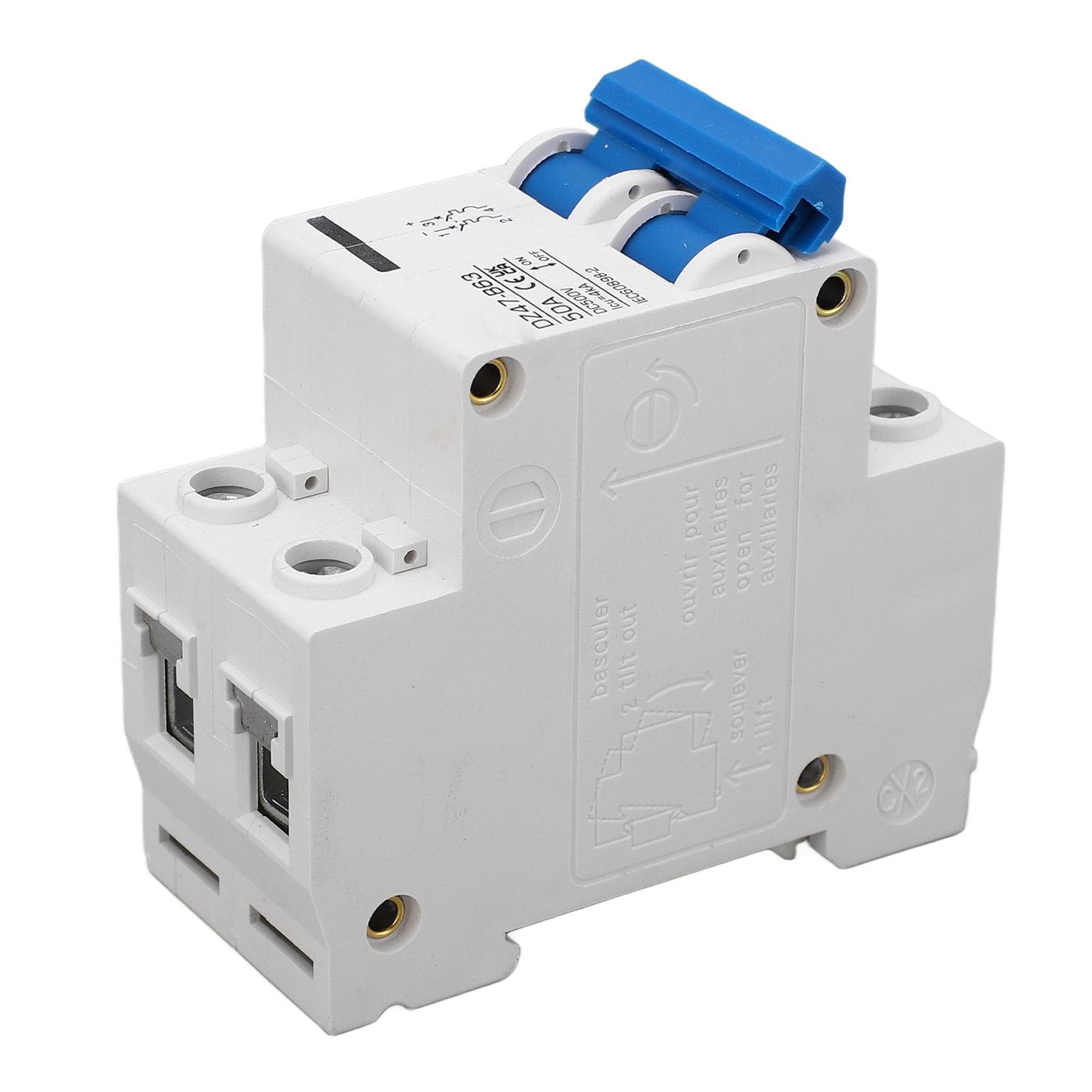

DC 500V 2P Mini Circuit Breaker DIN Rail Mount Low Voltage Circuit Breaker for Solar System B Type

About this item

• Feature: 1. MAIN PURPOSE: The circuit breaker is used to protect distribution facilities from overload and short circuit damage, can also be used for control and isolation. 2. FAST TRIPPING: The electromagnetic tripping system can trip immediately in case of short circuit to protect the circuit safety, stable and reliable. 3. WORK PARAMETERS: The rated voltage current is DC 500V 50A, with 4000A high breaking capacity, which helps greatly improve the working efficiency. 4. MULTIPLE USAGES: Widely used in DC power system, ship power system, solar PV system or other DC systems, with a wide range of applications. 5. DIN RAIL MOUNT: The 2P circuit breaker is of modular structure, with screw clamp wire, 35mm DIN rail installation to ensure a stable structure. Specification: Item Type: 2P Circuit Breaker Model: DZ47 B63 Material: Pa66 Rated Current: 50A Rated Ultimate Short Circuit Breaking Capacity (Household Icn): 4000A Purpose: Solar photovoltaic electric motorcycle, electric vehicle Mechanical Life: 20000 times Applicable Temperature: 3570 celsius . Package List: 1 x Circuit Breaker Note: Type B circuit breaker is more sensitive than type C.MAIN PURPOSE: The circuit breaker is used to protect distribution facilities from overload and short circuit damage, can also be used for control and isolation. FAST TRIPPING: The electromagnetic tripping system can trip immediately in case of short circuit to protect the circuit safety, stable and reliable. WORK PARAMETERS: The rated voltage current is DC 500V 50A, with 4000A high breaking capacity, which helps greatly improve the working efficiency. MULTIPLE USAGES: Widely used in DC power system, ship power system, solar PV system or other DC systems, with a wide range of applications. DIN RAIL MOUNT: The 2P circuit breaker is of modular structure, with screw clamp wire, 35mm DIN rail installation to ensure a stable structure.
