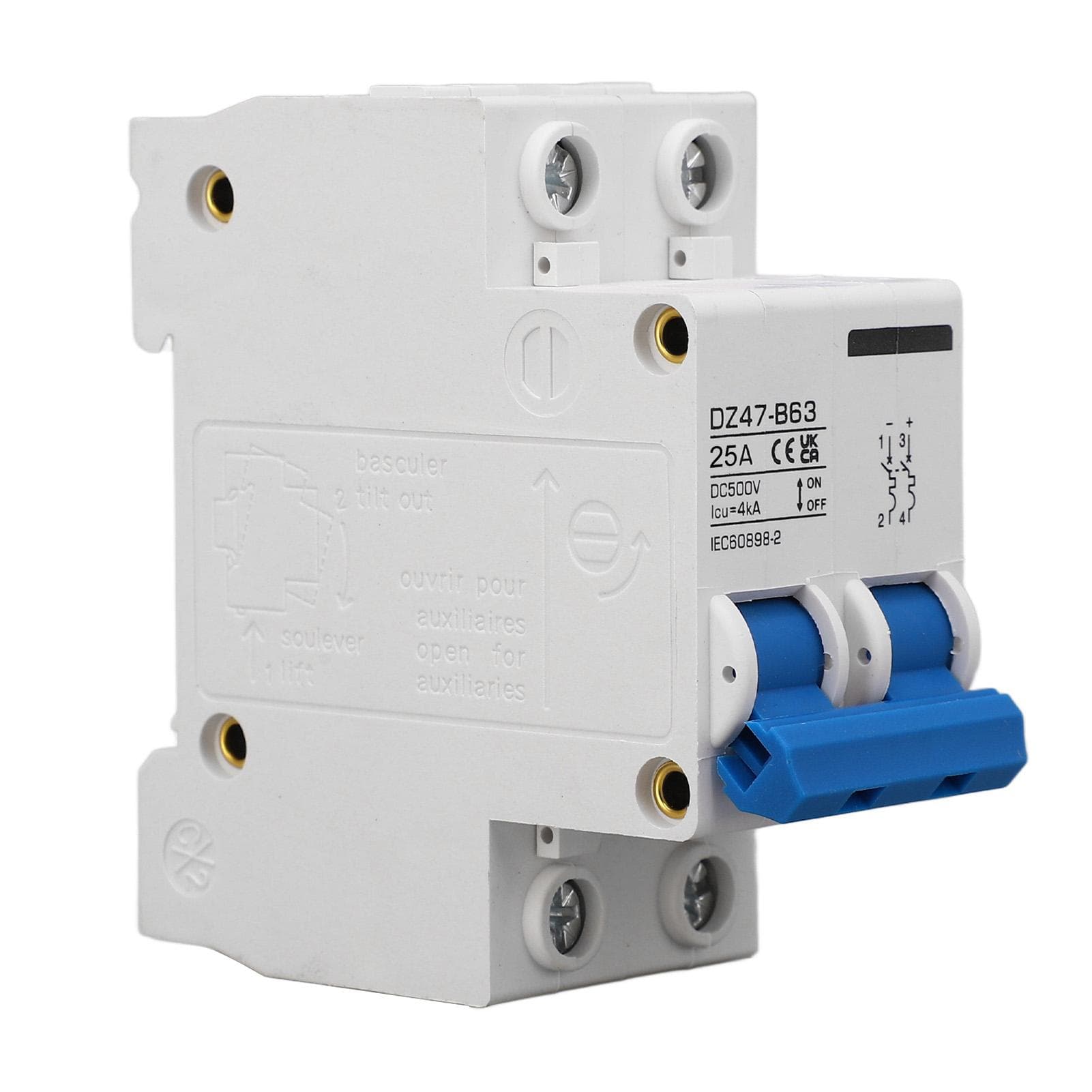

2P DC Miniature Circuit Breaker B Type 25A DIN Rail Circuit Breaker for Solar Photovoltaic System

About this item

• Feature: 1. [Circuit Protector] Circuit breakers can be used to ensure low voltage electrical systems from overcurrent damage caused by overloads or short circuits. 2. [Pa66 Housing] Our circuit breaker is made of nylon material Pa66, which has excellent flame retardant safety performance. 3. [Breaking Capacity] The rated ultimate short circuit breaking capacity of our circuit breakers is 4000A, which is very suitable for home use. 4. [Easy Installation] The circuit breakers are modular in construction with screw clamp wires and can be installed via 35mm DIN rails. 5. [Wide Application] The circuit breaker can be used in DC power system, ship power system, solar photovoltaic system or other DC system. Specification: Item Type: 2P DC Miniature Circuit Breaker Material: Pa66 Rated Current: 25A Rated Voltage: DC 500V Rated Limit Short Circuit Breaking Capacity (Industrial Icn): 4000A Use: Solar energy Photovoltaic special electric motorcycle, electric car special Mechanical Life: 20000 times Applicable Temperature: 35 celsius 70 celsius . Package List: 1 x 2P DC Miniature Circuit Breaker Note: Type B circuit breakers are more sensitive than type C circuit breakers[Circuit Protector] Circuit breakers can be used to ensure low voltage electrical systems from overcurrent damage caused by overloads or short circuits. [Pa66 Housing] Our circuit breaker is made of nylon material Pa66, which has excellent flame retardant safety performance. [Breaking Capacity] The rated ultimate short circuit breaking capacity of our circuit breakers is 4000A, which is very suitable for home use. [Easy Installation] The circuit breakers are modular in construction with screw clamp wires and can be installed via 35mm DIN rails. [Wide Application] The circuit breaker can be used in DC power system, ship power system, solar photovoltaic system or other DC system.
