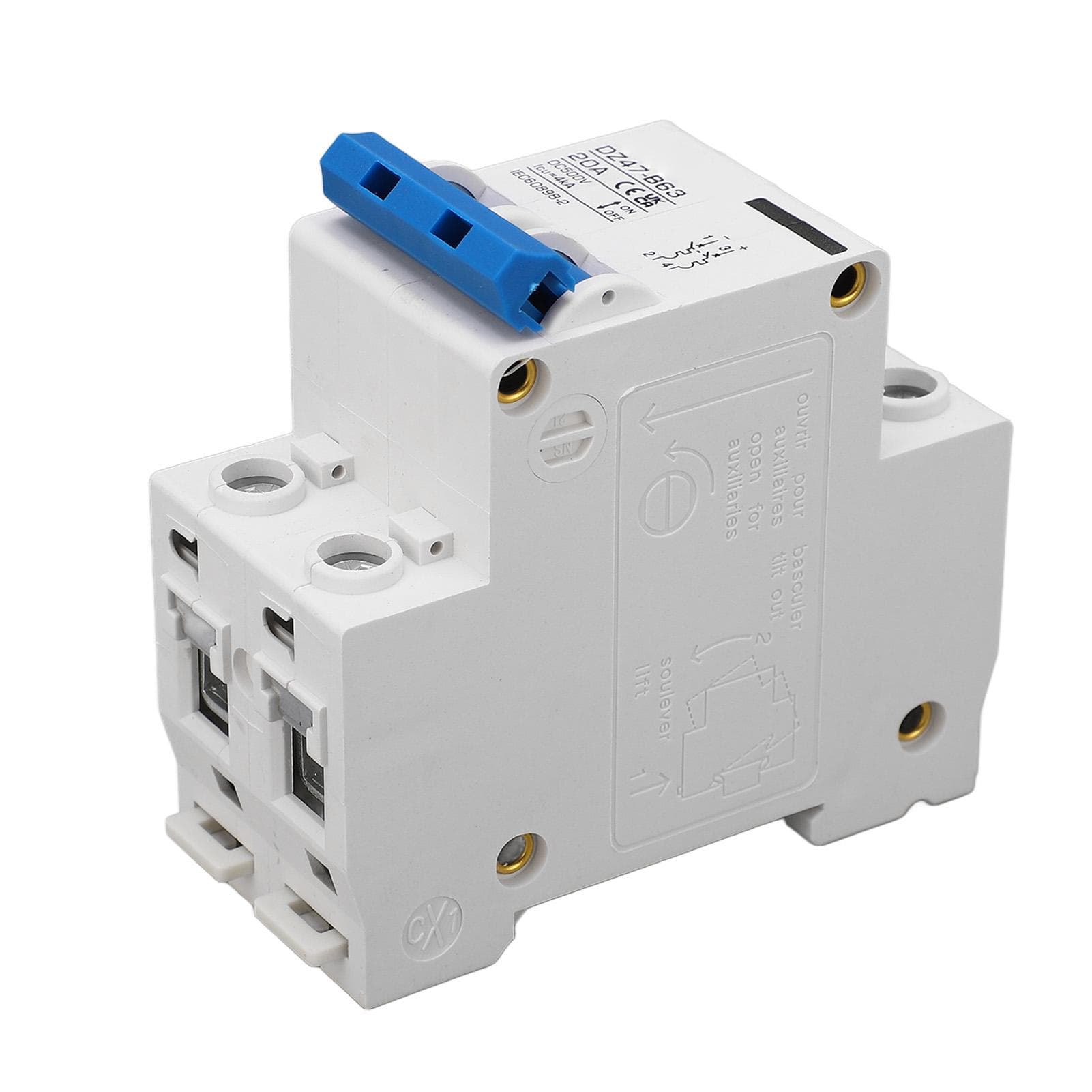

2P DC Circuit Breaker B Type DIN Rail Installation Mini Safety Circuit Breaker for Solar PV System

About this item

• Feature: 1. Multiple Functions: DC circuit breaker protects electrical equipments from overload and short circuit, could also control and isolate, very practical. 2. 4KA Breaking Capacity: The rated ultimate short circuit breaking capacity is 4000A, the rated current is 20A, rated voltage is DC 500V. 3. High Sensitivity: Built in electromagnetic system, which trips immediately when short circuit occurs, ensures circuit safety. 4. Wide Usage: 2P DC circuit breaker can be used for DC power supply system, ship power system, solar photovoltaic system and other DC systems. 5. DIN Rail Installation: Miniature DC circuit breaker is modular designed, adopts 35mm DIN rail installation, you can install it easily and quickly. Specification: Item Type: 2P DC Circuit Breaker Material: Pa66 Model: DZ47 B63 Rated Current: 20A Rated Voltage: DC 500V Rated Ultimate Short Circuit Breaking Capacity (Household Icn): 4000A Purpose: Solar photovoltaic, electric motorcycle, electric vehicle Mechanical Life: 20000 times Applicable Temperature: 35 celsius to +70 celsius Feature: Type B (more sensitive than type C circuit breaker). Package List: 1 x 2P DC Circuit BreakerMultiple Functions: DC circuit breaker protects electrical equipments from overload and short circuit, could also control and isolate, very practical. 4KA Breaking Capacity: The rated ultimate short circuit breaking capacity is 4000A, the rated current is 20A, rated voltage is DC 500V. High Sensitivity: Built in electromagnetic system, which trips immediately when short circuit occurs, ensures circuit safety. Wide Usage: 2P DC circuit breaker can be used for DC power supply system, ship power system, solar photovoltaic system and other DC systems. DIN Rail Installation: Miniature DC circuit breaker is modular designed, adopts 35mm DIN rail installation, you can install it easily and quickly.
