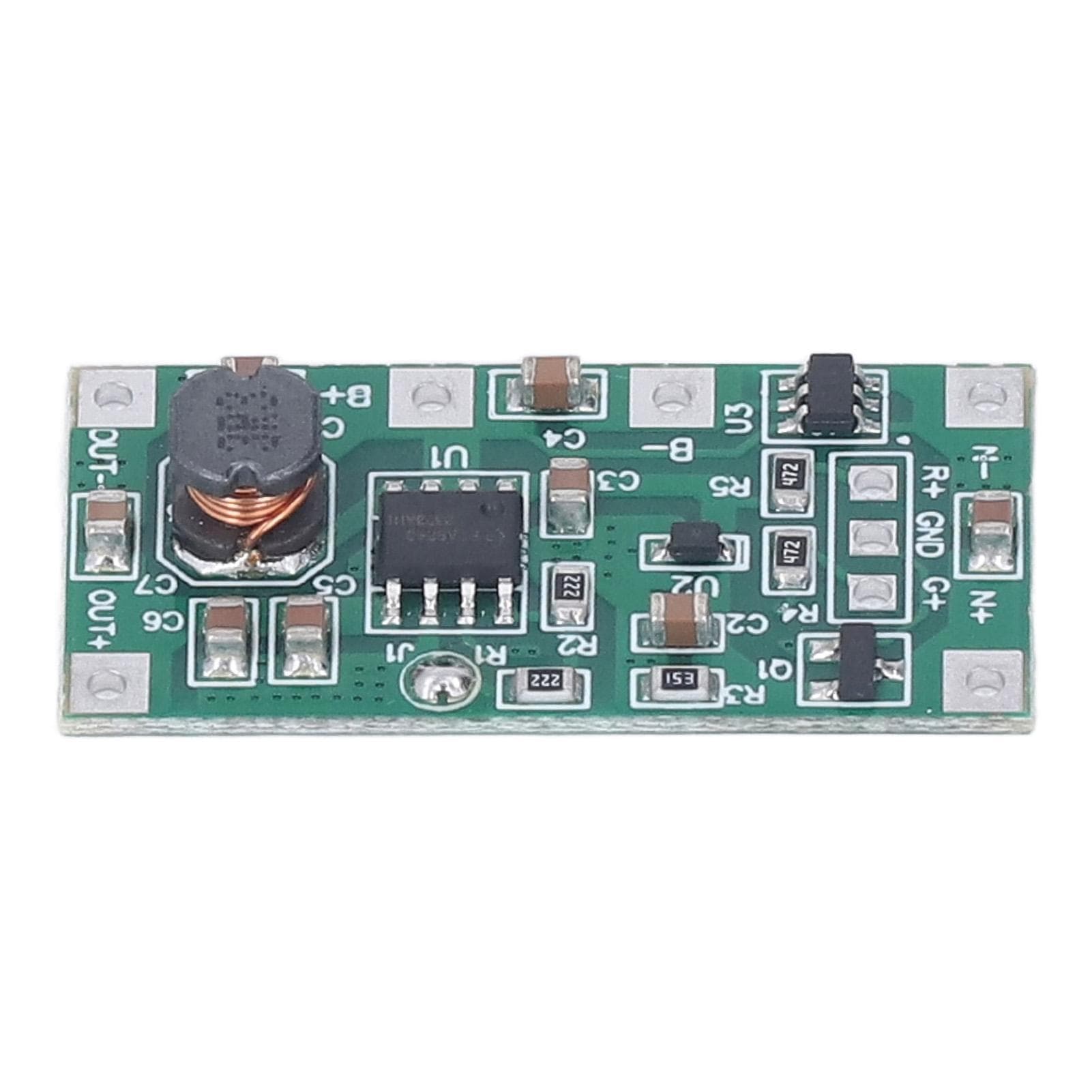

5V 1A UPS Uninterruptible Power Supply Module 18650 Lithium Ion Battery Boost Step Up Module

About this item

• Feature: 1. POWER OUTPUT: Uninterruptible power supply module, with maximum output of 5V 1A, and supplied by polymer lithium battery or 18650 lithium battery. 2. OVERVOLTAGE PROTECTION: The module has input overvoltage protection. When the input exceeds 6V, the input will be cut off automatically to enter the battery power supply mode. 3. REVERSE PROTECTION: The module has reverse connection and short circuit protection. When the external power input exceeds 20V, the protection unit will be broken down. 4. GOOD PERFORMANCE: The battery boost module supports simultaneous charging and discharging, with large current and high efficiency, which is stable and reliable. 5. WIDE APPLICATION: The power board can be used for battery chargers, mobile power supplies, infrared alarms, switches and other network devices, routers, etc. Specification: Item Type: Power Supply Module Material: PCB Input: 5V 1A Output: 5V 1A (Maximum) Output Power: 5W Battery Supply: Polymer Lithium Battery, 18650 Lithium Battery. (Recommended Capacity Below 10000mA) Input Reverse Connection Protection: Yes Input Overvoltage Protection: Yes Output Reverse Connection Protection: Yes Output Short Circuit Protection: Yes Operating Temperature Range: 4085 celsius Operating Humidity Range: 095percent RH . Package List: 1 x Power Supply Module Note: 1. The maximum output current is 1A, and the output 1A cannot be maintained.2. The positive and negative electrodes of the battery must not be reversed, otherwise the module will be damaged.3. Users can install a common anode red green LED as the charging indicator. The red light indicates whether the output terminal is loaded. Green flashes to show capacity. If there is no load or battery, turn off green.4. Due to the large current, it is recommended to use thicker wire. Wire section is greater than 1.5mm2.POWER OUTPUT: Uninterruptible power supply module, with maximum output of 5V 1A, and supplied by polymer lithium battery or 18650 lithium battery. OVERVOLTAGE PROTECTION: The module has input overvoltage protection. When the input exceeds 6V, the input will be cut off automatically to enter the battery power supply mode. REVERSE PROTECTION: The module has reverse connection and short circuit protection. When the external power input exceeds 20V, the protection unit will be broken down. GOOD PERFORMANCE: The battery boost module supports simultaneous charging and discharging, with large current and high efficiency, which is stable and reliable. WIDE APPLICATION: The power board can be used for battery chargers, mobile power supplies, infrared alarms, switches and other network devices, routers, etc.
