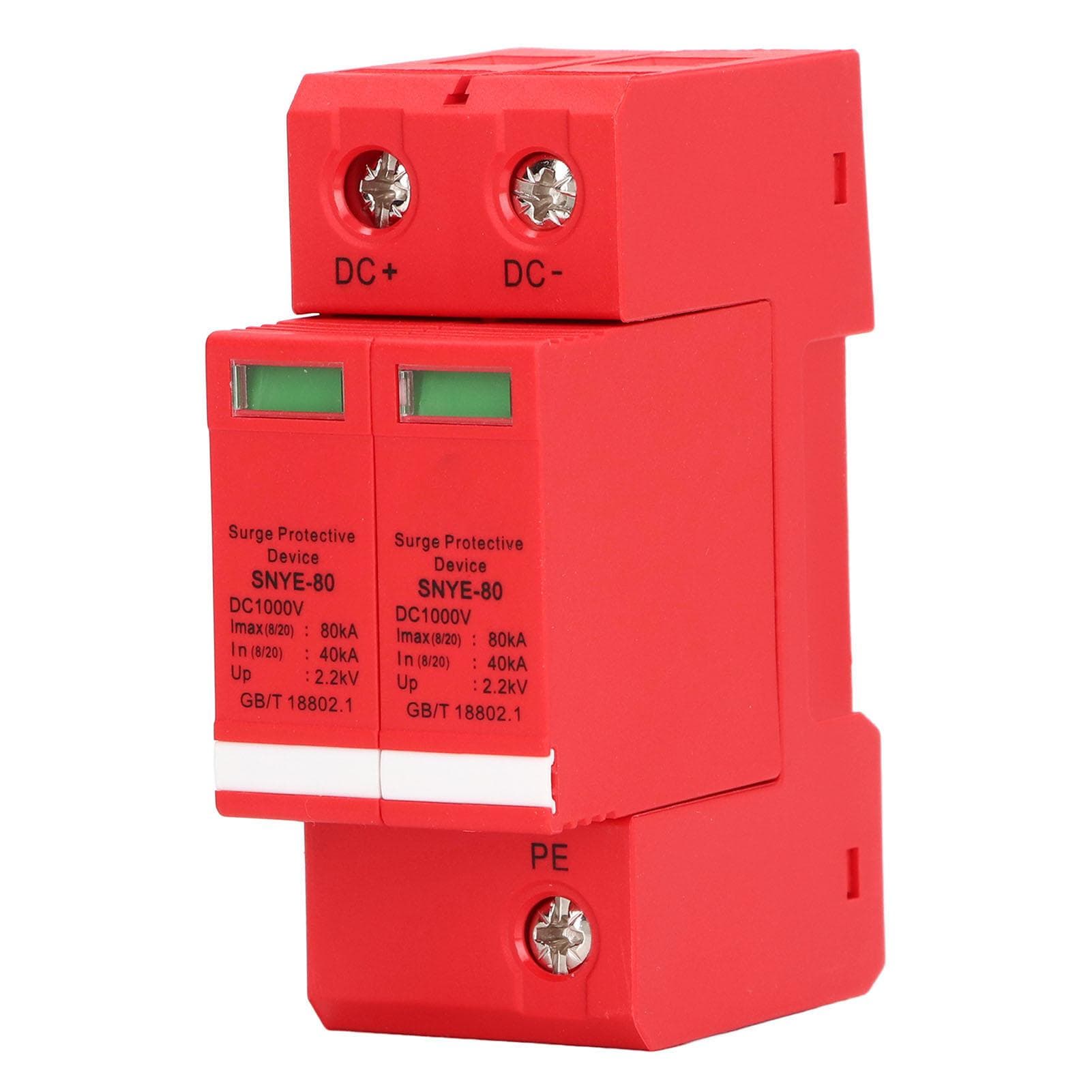

Surge Protective Device 80KA 1000V Voltage Protection Arrester Protector for Distribution Box 2P

About this item

• Feature: 1. Surge Protection: When surge over voltage occurs in the system due to lightning stroke or other reasons, the protector will be quickly opened within nanoseconds, and the surge over voltage will be introduced to the ground to protecting the electrical equipment. 2. Reliable Working: With insulated terminals, the surge arrester ensures quick response and good bearing capacity for surge protection. 3. Clear in Display: Working status indication window, green indicates normal, red indicates fault, clearly showing the working status. 4. Premium Material: Adopting premium PC material that is flame retardant and very sturdy with corrosion, also very durable for long use. 5. Easy to Install: Comes with light weight and compact size as well, the 35mm electrical guide rail installation is simple to complete. Specification: Item Type: Surge Protective Device Model: SNYE 80 Colour: Red Orange Material: PC Maximum Discharge Current Imax: 80KA Nominal Discharge Current In: 40KA Protection Level Up: 2.2KV Protection Grade: IP20 Response Time: less than 25ns Maximum Wire Diameter: 35mm2 hard wire or stranded wire. Recommended Connection: 425mm2 Installation Method: 35mm electrical guide rail installation. Ambient Temperature: 40 celsius ~+80 celsius . Package List: 1 x Surge Protective Device1 x AccessorySurge Protection: When surge over voltage occurs in the system due to lightning stroke or other reasons, the protector will be quickly opened within nanoseconds, and the surge over voltage will be introduced to the ground to protecting the electrical equ Reliable Working: With insulated terminals, the surge arrester ensures quick response and good bearing capacity for surge protection. Clear in Display: Working status indication window, green indicates normal, red indicates fault, clearly showing the working status. Premium Material: Adopting premium PC material that is flame retardant and very sturdy with corrosion, also very durable for long use. Easy to Install: Comes with light weight and compact size as well, the 35mm electrical guide rail installation is simple to complete.
