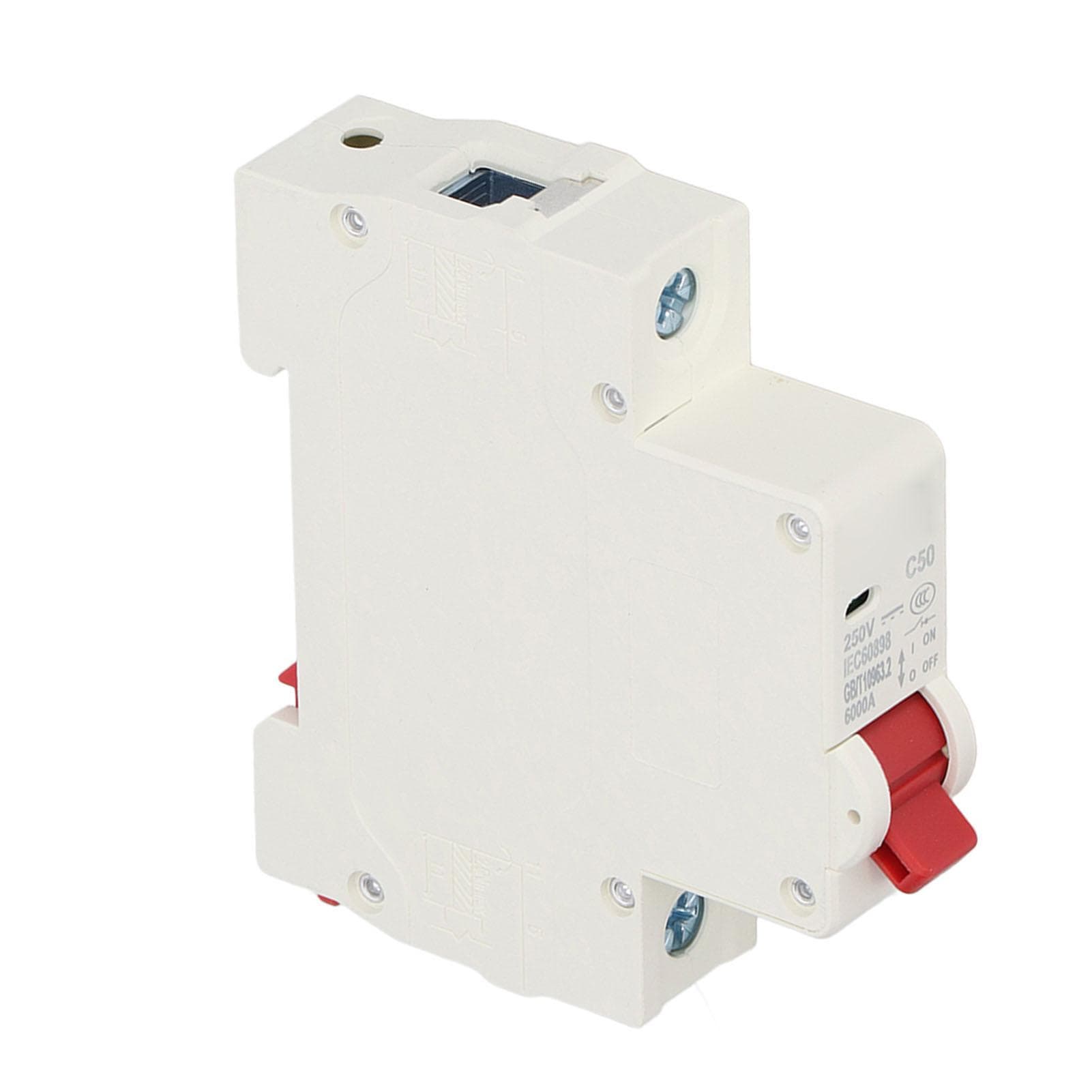

DC Miniature Circuit Breaker 1P Solar PV System Isolator 50A DIN Rail Mount DC250V 6000A Segmented

About this item

• Feature: 1. CONTROL AND ISOLATION: Circuit breaker works for protecting power distribution facilities from overload and short circuit damage, and can also be used for control and isolation 2. ELECTROMAGNETIC TRIP SYSTEM: The electromagnetic trip system can trip immediately when the circuit is short circuited, thereby effectively protecting the safety of the circuit 3. AUXILIARY ARC EXTINGUISHING:DC arc extinguishing is more difficult than AC, this DC circuit breaker has an auxiliary arc extinguishing magnetic system, which is more fast 4. FOR DC SYSTEMS: Suitable for DC power systems, ship power systems, solar photovoltaic systems or other DC systems, with excellent performance 5. 35MM DIN RAIL INSTALLATION: Circuit breaker come with modular structure, adopt screw clamps and 35mm DIN rail installation Specification: Item Type: DC Miniature Circuit Breaker Model: DZ47 63Z Material: PA66 Rated Current: 50A Rated Voltage: DC 250V Rated Ultimate Short Circuit Breaking Capacity(home Icn): 6000A Uses: Solar photovoltaic, electric motorcycle, electric car Mechanical Life: 20000 Times Applicable Temperature: 35 celsius +70 celsius . Package List: 1 x DC Miniature Circuit BreakerCONTROL AND ISOLATION: Circuit breaker works for protecting power distribution facilities from overload and short circuit damage, and can also be used for control and isolation ELECTROMAGNETIC TRIP SYSTEM: The electromagnetic trip system can trip immediately when the circuit is short circuited, thereby effectively protecting the safety of the circuit AUXILIARY ARC EXTINGUISHING:DC arc extinguishing is more difficult than AC, this DC circuit breaker has an auxiliary arc extinguishing magnetic system, which is more fast FOR DC SYSTEMS: Suitable for DC power systems, ship power systems, solar photovoltaic systems or other DC systems, with excellent performance 35MM DIN RAIL INSTALLATION: Circuit breaker come with modular structure, adopt screw clamps and 35mm DIN rail installation
