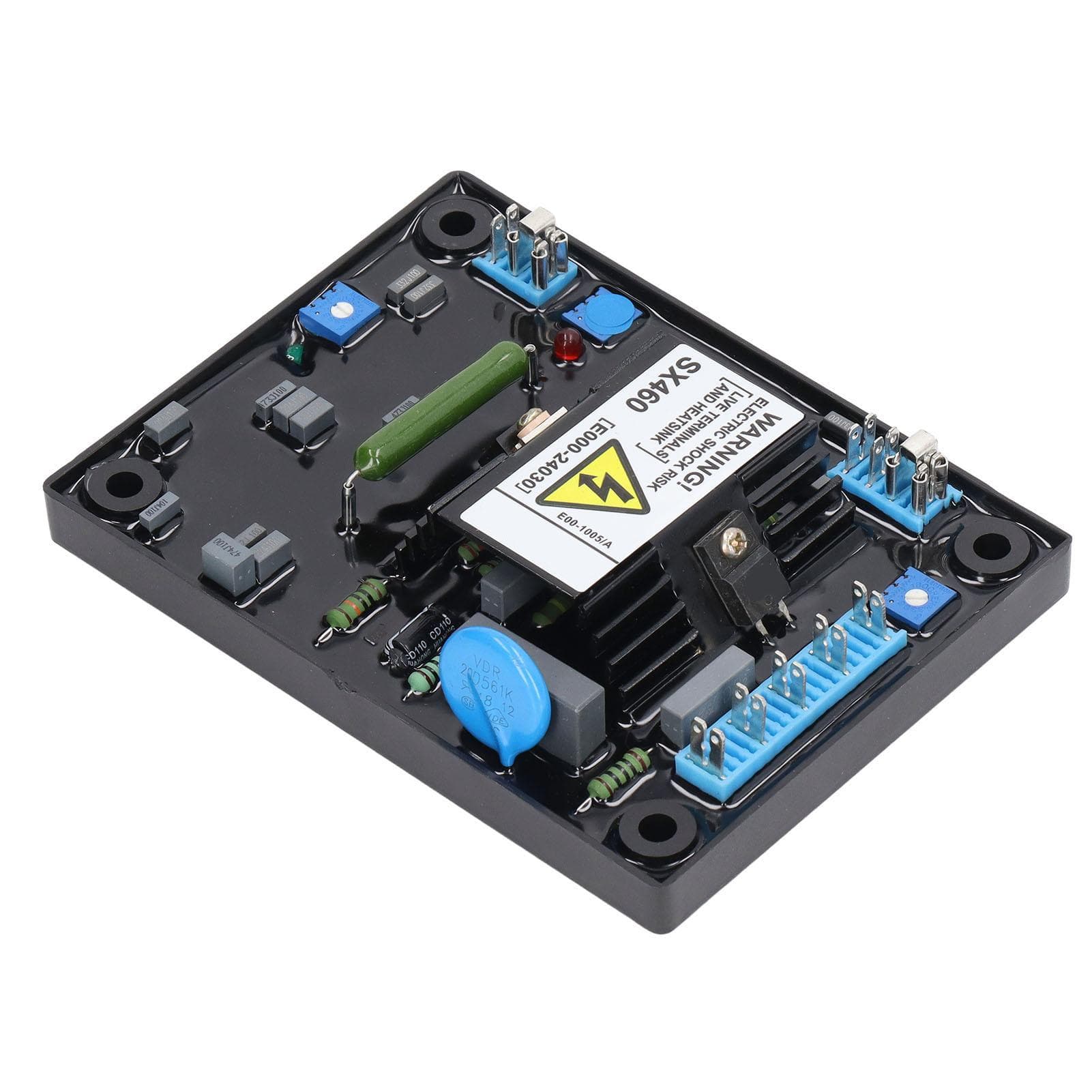

Automatic Voltage Regulator AVR Module Board SX460 Replacement for Stamford 95?132V 190?264VAC

About this item

• Feature: 1. OUTPUT VOLTAGE: 90V DC maximum at 207V AC input, 4A DC continuous, 6A intermittent for 10 seconds, minimum 15ohms resistance 2. AUTOMATIC REGULATOR: The SX460 is a half wave phase controlled thyristor type automatic voltage regulator(AVR) that is part of a brushless alternator excitation system 3. INPUT VOLTAGE: Jumper selectable 95?132V AC or 190?264V AC, frequency 50?60Hz nominal, phase for single phase 4. PERFECT REPLACEMENT: SX460 automatic voltage regulator is a good replacement for Stamford generator, useful and practical 5. EXCELLENT PERFORMANCE: Made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability Specification: Item Type: Automatic Voltage Regulator Model: SX460 Detection And Power Input: Voltage 95132V or 190264VAC Single phase two wire to choose from jumper copper Magnetic Field Output: Maximum 90VDC at 207VAC input Voltage Regulation Accuracy: +1percent System Requirements: Brushless generator within 80KW Number of Phases: Single phase Voltage: 90VDC Maximum at 207VAC Input Current: 4A continuously, 6A maximum intermittently(10 seconds) Working Temperature: 40~+70 celsius Maximum Humidity: Up to 95percent . Package List: 1 x Automatic Voltage Regulator1 x User ManualOUTPUT VOLTAGE: 90V DC maximum at 207V AC input, 4A DC continuous, 6A intermittent for 10 seconds, minimum 15ohms resistance AUTOMATIC REGULATOR: The SX460 is a half wave phase controlled thyristor type automatic voltage regulator(AVR) that is part of a brushless alternator excitation system INPUT VOLTAGE: Jumper selectable 95?132V AC or 190?264V AC, frequency 50?60Hz nominal, phase for single phase PERFECT REPLACEMENT: SX460 automatic voltage regulator is a good replacement for Stamford generator, useful and practical EXCELLENT PERFORMANCE: Made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability
