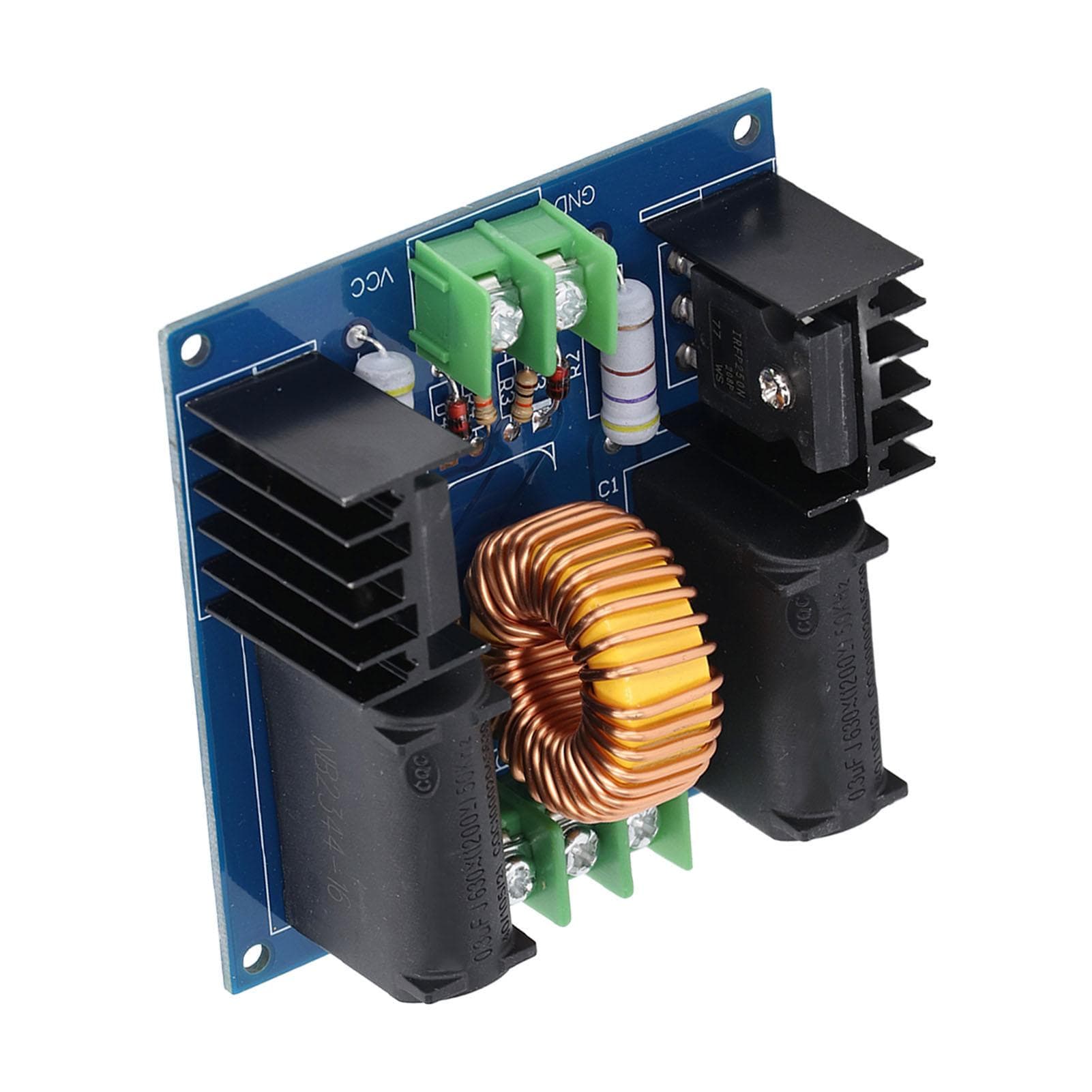

ZVS Driver Board Zero Voltage Switching Coil Power Supply Induction Heating Module for SGTC

About this item

• Feature: 1. ROBUST AND SIMPLE: High power, low heat, simple and reliable, come with robust drive circuit and simple structure 2. SECURE CONNECT: The coils are fastened to the iron core and are securely connected to each other by zippers. Primary s are fully tinned 3. FOR VARIOUS DEVICES: Widely used to drive for SGTC and for Jacobs Stairs, for Marx Generators, induction heating and other devices 4. LONG DISCHARGE ARC: When the input voltage is 12v5A, the distance of high voltage discharge arc is about 12cm. The larger the input voltage and current, the longer the discharge arc distance. When the maximum input is 30v10A, the longest can be more than 5cm. If the arc is too short, check if the input power is sufficient 5. 30KHZ?50KHZ FREQUENCY: Working frequency of boost high voltage generator driver board is 30kHz?50kHz adaptive, maximum power from 180?360W Specification: Item Type: ZVS Driver Board Working Voltage: DC 12V30V (less than 12V does not work) Power Requirements: 12V=5A, 15V or more more than 10A (the higher the current, the more sufficient the power) Working Frequency: 30kHz50kHz adaptive Arc Length: Approx. 1 ~ 5cm 0.4 ~ 2in Output Voltage or Power: When inputting 12V 5A, the output is about 10000V 60W When inputting 24V 10A, the output is about 20000V 200W Maximum Power: 180360W Board Size: Approx. 75 x 70.6mm 2.95 x 2.78in. Package List: 1 x ZVS Driver Board Note: High voltage danger! When driving the high voltage package, it is high voltage output, pay attention to safety.ROBUST AND SIMPLE: High power, low heat, simple and reliable, come with robust drive circuit and simple structure SECURE CONNECT: The coils are fastened to the iron core and are securely connected to each other by zippers. Primary s are fully tinned FOR VARIOUS DEVICES: Widely used to drive for SGTC and for Jacobs Stairs, for Marx Generators, induction heating and other devices LONG DISCHARGE ARC: When the input voltage is 12v5A, the distance of high voltage discharge arc is about 12cm. The larger the input voltage and current, the longer the discharge arc distance. When the maximum input is 30v10A, the longest can be more t 30KHZ?50KHZ FREQUENCY: Working frequency of boost high voltage generator driver board is 30kHz?50kHz adaptive, maximum power from 180?360W
