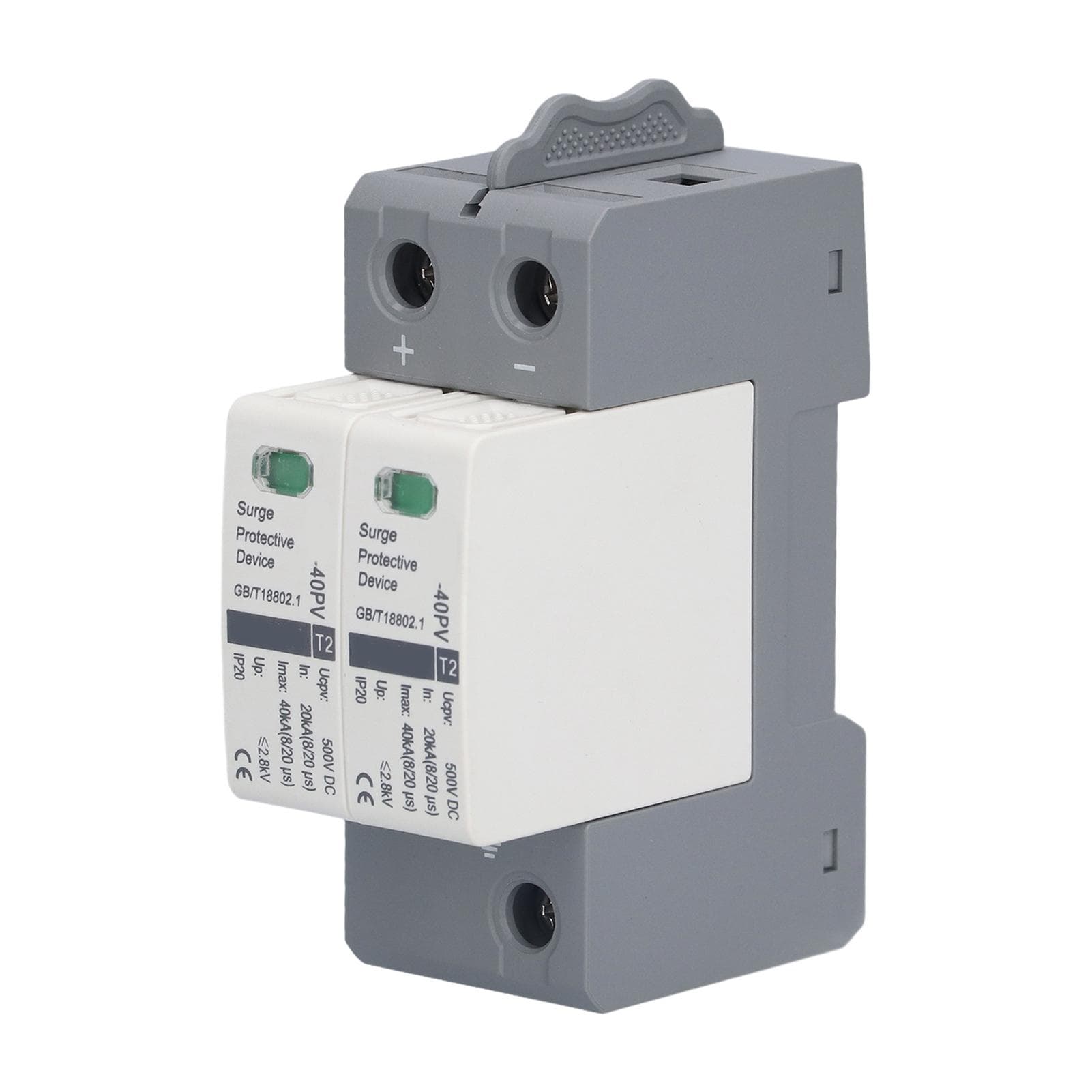

Surge Protective Device 2P Voltage Protection Arrester Protector 20?40KA 500VDC CHLT?40PV

About this item

• Feature: 1. Surge Protector: Works perfectly in protecting the DC power system from lightning strike or over voltage. 2. Reliable Working: Comes with 20kA nominal discharge current In and 40kA maximum discharge current Imax. 3. Safe Protection: The 500V DC maximum continuous working voltage Uc ensures more stable circuit operating. 4. Good Durability: Adopting premium materials, the efficient voltage arrester is very durable for long use. 5. Easy to Install: Very easy to connect to the circuit, and the simple wiring can be completed in minutes. Specification: Item Type: Surge Protective Device Model: CHLT40PV Nominal Discharge Current In: 20kA (820Microsecond) Maximum Discharge Current Imax: 40kA (820Microsecond) Number of Poles: 2P Protection Level: IP20 Working Temperature: 40 celsius ~80 celsius , humidity: less than 90percent (average at 25 celsius ). . Package List: 1 x Surge Protective Device1 x Slip Sheet Note: 1. The power supply must be cut off before installation, and hot line work is strictly prohibited; 2. When installing, please connect according to the installation diagram, where + is the positive wire and ‑ is the negative wire. Do not connect it wrongly. After installation, close the automatic circuit breaker (fuse) switch and check whether the working state is normal. Surge Protector: Works perfectly in protecting the DC power system from lightning strike or over voltage. Reliable Working: Comes with 20kA nominal discharge current In and 40kA maximum discharge current Imax. Safe Protection: The 500V DC maximum continuous working voltage Uc ensures more stable circuit operating. Good Durability: Adopting premium materials, the efficient voltage arrester is very durable for long use. Easy to Install: Very easy to connect to the circuit, and the simple wiring can be completed in minutes.
