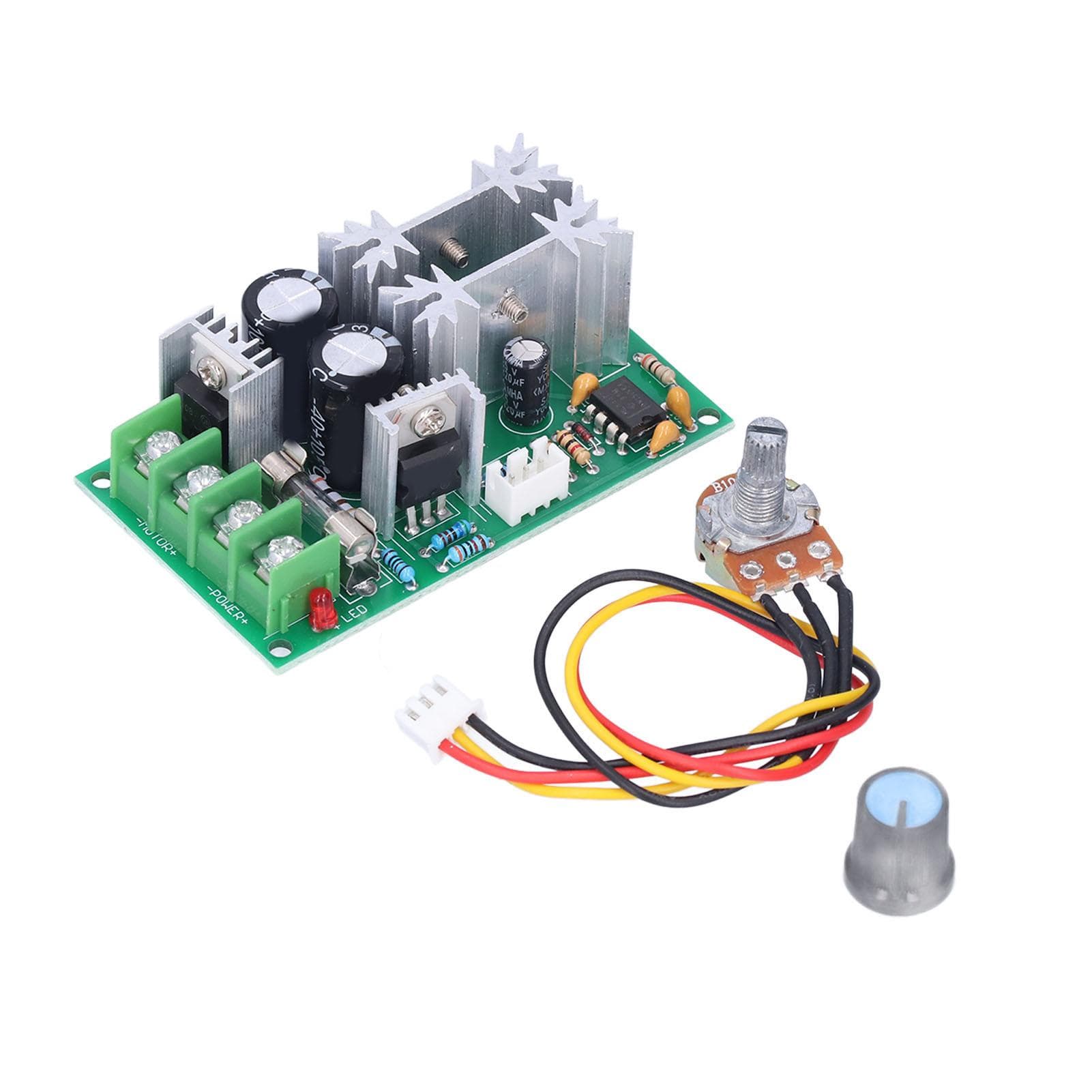

Motor Speed Controller Switch PWM Electronic Governor High Power Drive Module DC10?60V 20A

About this item

• Feature: 1. Wide Voltage Range: The input voltage of the motor speed controller is DC10?60V, suitable for 12V 24V 36V 48V and other common voltages. 2. PWM Control Method: The 1200W high power drive module uses PWM method to control the speed of the DC motor. 3. For DC Brushed Motor: The output limit current of the motor speed controller is 20A, which is suitable for DC brushed motors. 4. With Potentiometer: Equipped with a potentiometer, and the module has standard mount opening, which is safe and convenient to operate. 5. Convenient Wiring: Barrier terminal type is adopted, which is convenient and fast for wiring and does not take up space. Specification: Item Type: Motor Speed Controller Switch Input Voltage: DC1060V Output Voltage: Linear at load Output Limit Current: 20A (use 10A for a long time, within 450W, pay attention to keep the module heat dissipation) Ultimate Power: 1200W Speed Regulation Type: Current regulation Speed Regulation Method: Potentiometer (linear) Speed Regulation Duty Cycle Range: 0100percent Control Frequency: 25KHZ Wiring Type: Barrier terminal block Knob Cord Length: Approx. 20cm 7.9in Module Size: Approx. 77 x 45 x 28mm 3 x 1.8 x 1.1in Motherboard Installation Size: Approx. 73 x 40mm 2.9 x 1.6in Potentiometer Installation Hole: Approx. 7mm 0.3in . Package List: 1 x DC Motor Speed Controller1 x Potentiometer1 x Knob Cap Note: 1. Make sure that the positive and negative connections are correct before turning on the power. Do not touch the heat sink with the wiring, which may burn the circuit board. Note that this is not a power supply module, it must be connected to the motor to adjust the speed, and the output of the multimeter will not change if the motor is not connected.2. This speed governor is used for DC brushed motors.3. Not suitable for the speed regulation of brushless DC motors; nor can it be used as a voltage regulator or regulator!Wide Voltage Range: The input voltage of the motor speed controller is DC10?60V, suitable for 12V 24V 36V 48V and other common voltages. PWM Control Method: The 1200W high power drive module uses PWM method to control the speed of the DC motor. For DC Brushed Motor: The output limit current of the motor speed controller is 20A, which is suitable for DC brushed motors. With Potentiometer: Equipped with a potentiometer, and the module has standard mount opening, which is safe and convenient to operate. Convenient Wiring: Barrier terminal type is adopted, which is convenient and fast for wiring and does not take up space.
