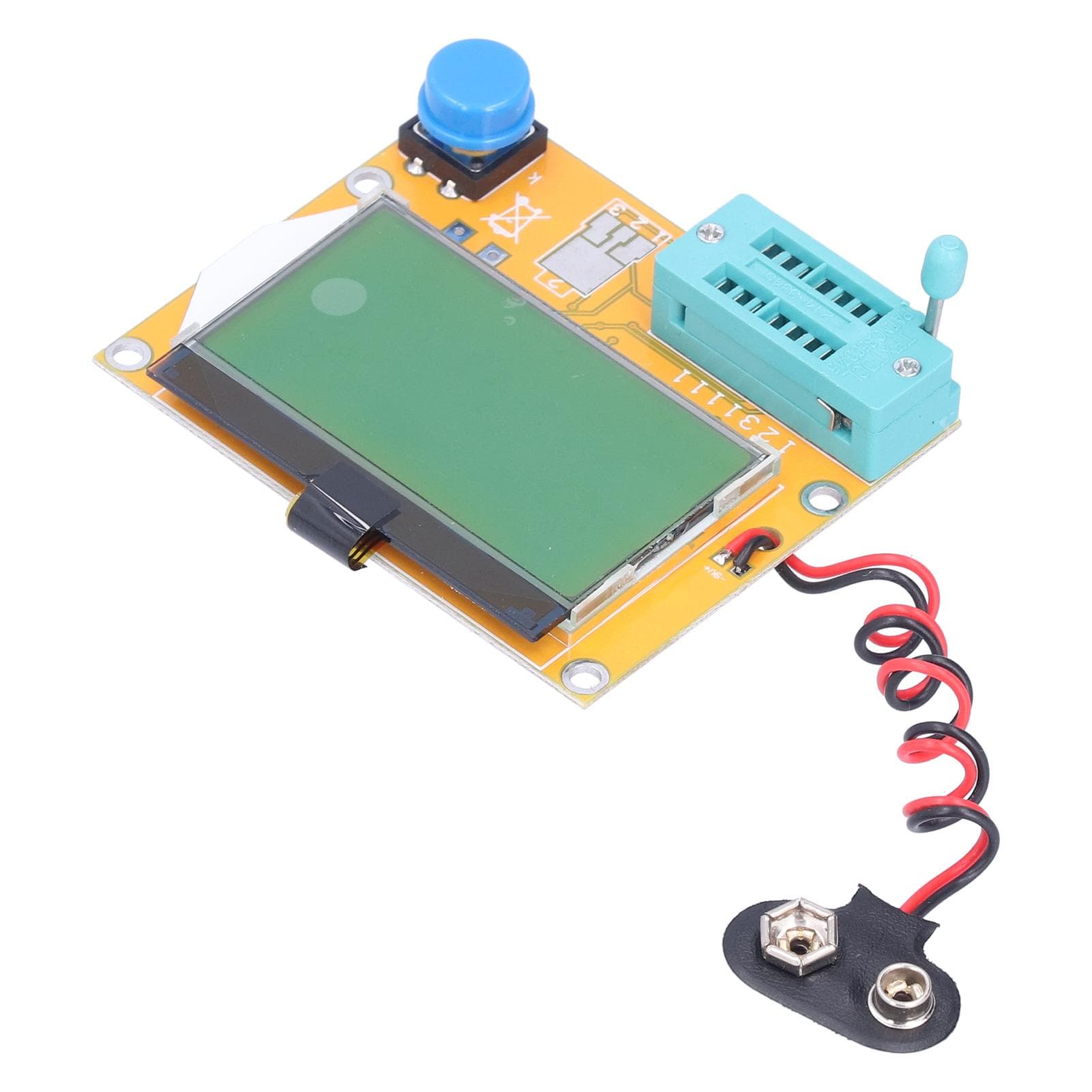

Transistor Tester Backlit LCD Display Capacitance Instrument Module Checker Detector

About this item

• Feature: 1. Equipped with a large backlit LCD display, the standby current is only 2mA, and the work efficiency is high. 2. This transistor tester can automatically test the pin of a component and display on the LCD for easy observation. 3. Can protect the diode amplification factor and base, and determine the forward bias voltage of the emitter transistor. 4. Used to test inductors, capacitors, diodes, double diodes, transistors, voltage regulators, LED tubes, resistors, adjustable potentiometers, etc. 5. Using sophisticated production technology, the transistor tester is sturdy, has a long service life, and has excellent performance. Specification: Item Type: Transistor Tester Material: PCB, LCD Purpose: Transistor Tester Test Range: Inductance, Capacitance, Diode, Double Diode, For MOS, Transistor, Thyristor, Voltage Regulator, LED Tube, Resistance, Adjustable Potentiometer Resistance: 0.1 Ohm Resolution, Maximum 50m Ohm Capacitance: 25pf to 100,000uf Inductance: 0.01mh to 20h 15. The diodes with reverse breakdown voltage less than 4.5V can be identified 16. Can measure the reverse capacitance of a single diode If a bipolar transistor is connected to the base and collector or emitter of a pin, the collector or emitter junction reverse capacitance can be measured 17. Can be obtained by connecting a single measuring rectifier bridge. Package List: 1 x Transistor Tester Note: 1. Before measuring the capacitance, the capacitor must be discharged, otherwise the meter may be damaged.2. Note that the screen is not fixed.Equipped with a large backlit LCD display, the standby current is only 2mA, and the work efficiency is high. This transistor tester can automatically test the pin of a component and display on the LCD for easy observation. Can protect the diode amplification factor and base, and determine the forward bias voltage of the emitter transistor. Used to test inductors, capacitors, diodes, double diodes, transistors, voltage regulators, LED tubes, resistors, adjustable potentiometers, etc. Using sophisticated production technology, the transistor tester is sturdy, has a long service life, and has excellent performance.
