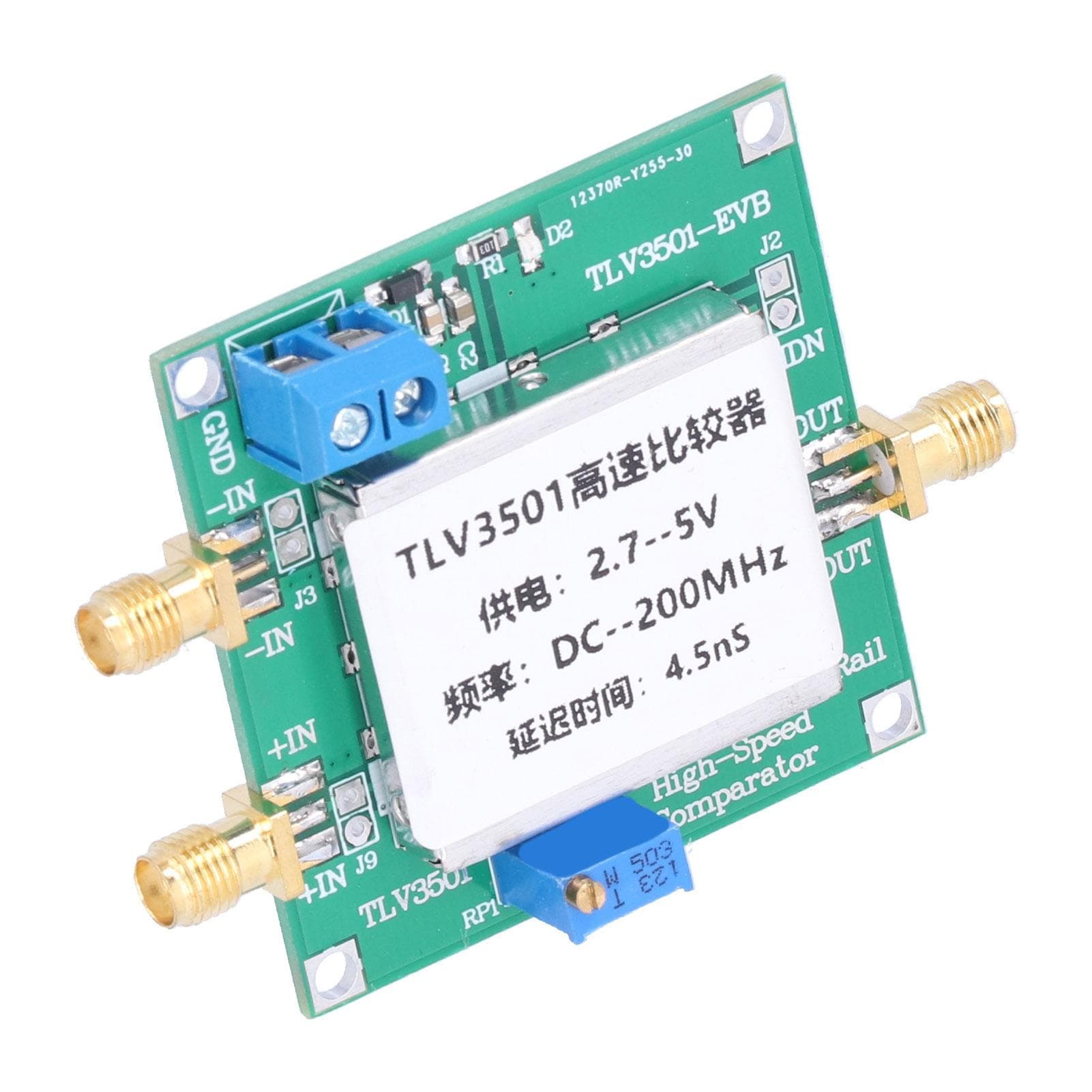

High Speed Comparator Wide Voltage Periodic Signal Shaping Front End Control Digital Module for

About this item

• Feature: 1. The input common mode range is better than the swing input, which is very suitable for low voltage applications. 2. Digital module can be used for wide voltage range and periodic signal shaping. 3. Used as a front end conditioning module in time domain measurements for frequency and phase difference. 4. The input voltage is 10 to 1000mV, the input frequency is about 200MHz DC, and the input impedance is 50 ohms. 5. The output level mode is rail to rail output, which can directly drive TTL CMOS level. Specification: Item Type: High Speed Comparator Material: PCB Model: for TLV3501 1. Power Supply Voltage: 2.75VDC 2. Input Voltage: 101000mV (Effective Value) 3. Output Level: Railtorail Output, Can Directly Drive TTL CMOS Level 4. Input Frequency: DC200MHz 5. Interface Form: SMA Female 6. Input Impedance: 50 Ohms. Package List: 1 x High Speed Comparator Note: 1 Don t overload use2 Do not use over pressure3 Do not use over currentThe input common mode range is better than the swing input, which is very suitable for low voltage applications. Digital module can be used for wide voltage range and periodic signal shaping. Used as a front end conditioning module in time domain measurements for frequency and phase difference. The input voltage is 10 to 1000mV, the input frequency is about 200MHz DC, and the input impedance is 50 ohms. The output level mode is rail to rail output, which can directly drive TTL CMOS level.
