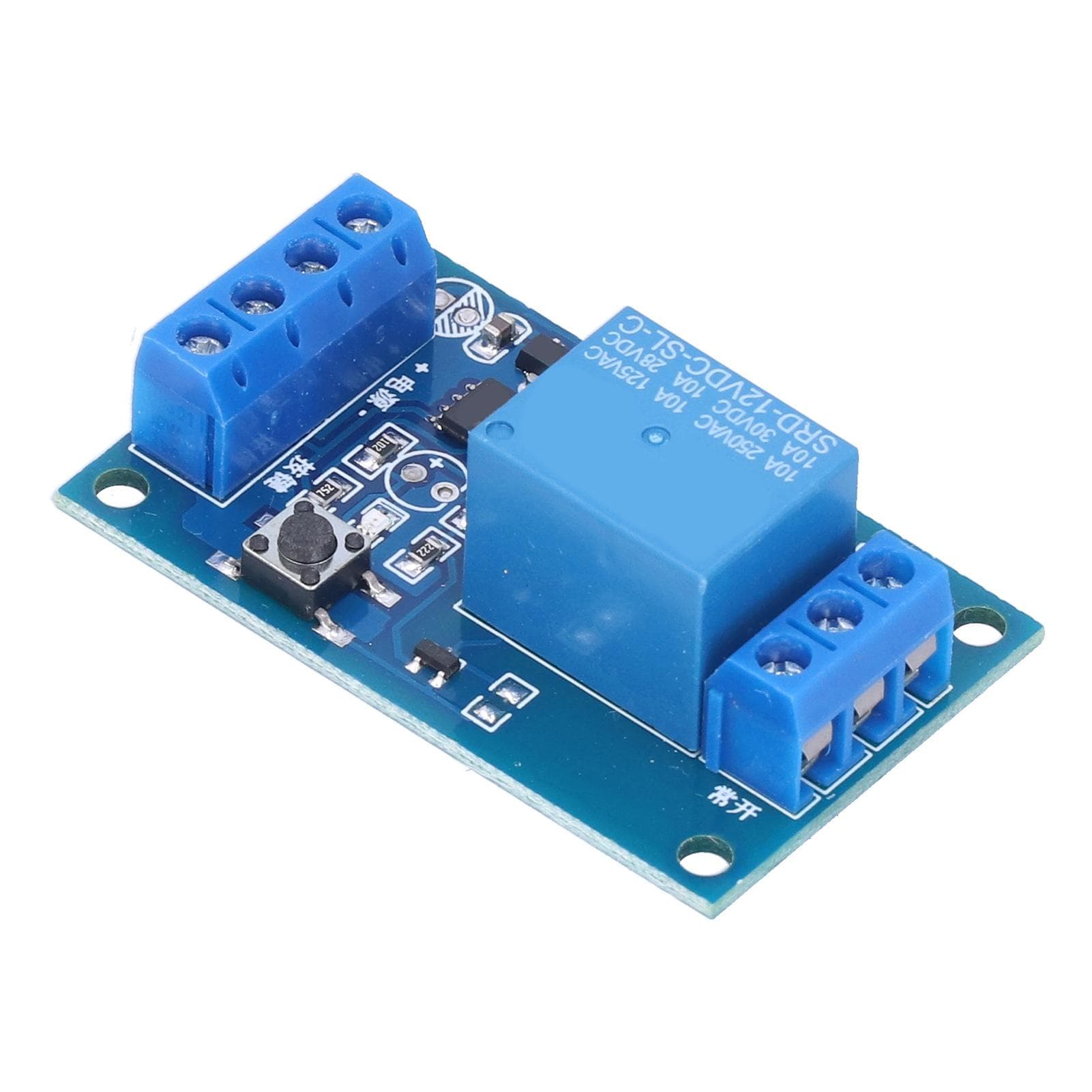

Relay Module Single Button Bistable Stable Reliable Performance Good Heat Dissipation12V Bistable

About this item

• Feature: 1. Adopts single chip control, stable and reliable performance, strong anti?interference, and will not be triggered by mistake. 2. Voltage regulator tube with high power provides sufficient and stable voltage, and has good heat dissipation,Coil voltage 12V. 3. Has a protection diode to prevent the power supply from being reversed, and there is no damage to the product if the power supply is reversed for a short time. 4. Touch switch is used as a product test, and it can be connected to an external trigger switch, equipped with a terminal block and , which is more convenient to use. 5. The trigger can also be triggered by other sensor modules, as long as it is a low level trigger, it is valid, and the function has more extensions. Specification: Item Type: Relay Module Material: Copper Clad Laminate Power Supply Voltage: 12V Power Supply Current: More Than 100mA Load: 250V 10A (AC) or 30V 10A (DC) Life: 1Million Times Center Distance of Board Mounting Hole: Approx. 48 x 25mm 1.9 x 1.0in. Package List: 1 x Relay Module Note: 1. According to the requirements of the wiring diagram, the power supply cannot be reversed. Although there is a protection circuit, it cannot be reversed for a long time.2. It is a normal phenomena that the product uses a voltage regulator tube to generate heat slightly, and it is a normal phenomena that the relay has a normal heating phenomena when it works for a long time.Adopts single chip control, stable and reliable performance, strong anti?interference, and will not be triggered by mistake. Voltage regulator tube with high power provides sufficient and stable voltage, and has good heat dissipation,Coil voltage 12V. Has a protection diode to prevent the power supply from being reversed, and there is no damage to the product if the power supply is reversed for a short time. Touch switch is used as a product test, and it can be connected to an external trigger switch, equipped with a terminal block and , which is more convenient to use. The trigger can also be triggered by other sensor modules, as long as it is a low level trigger, it is valid, and the function has more extensions.
