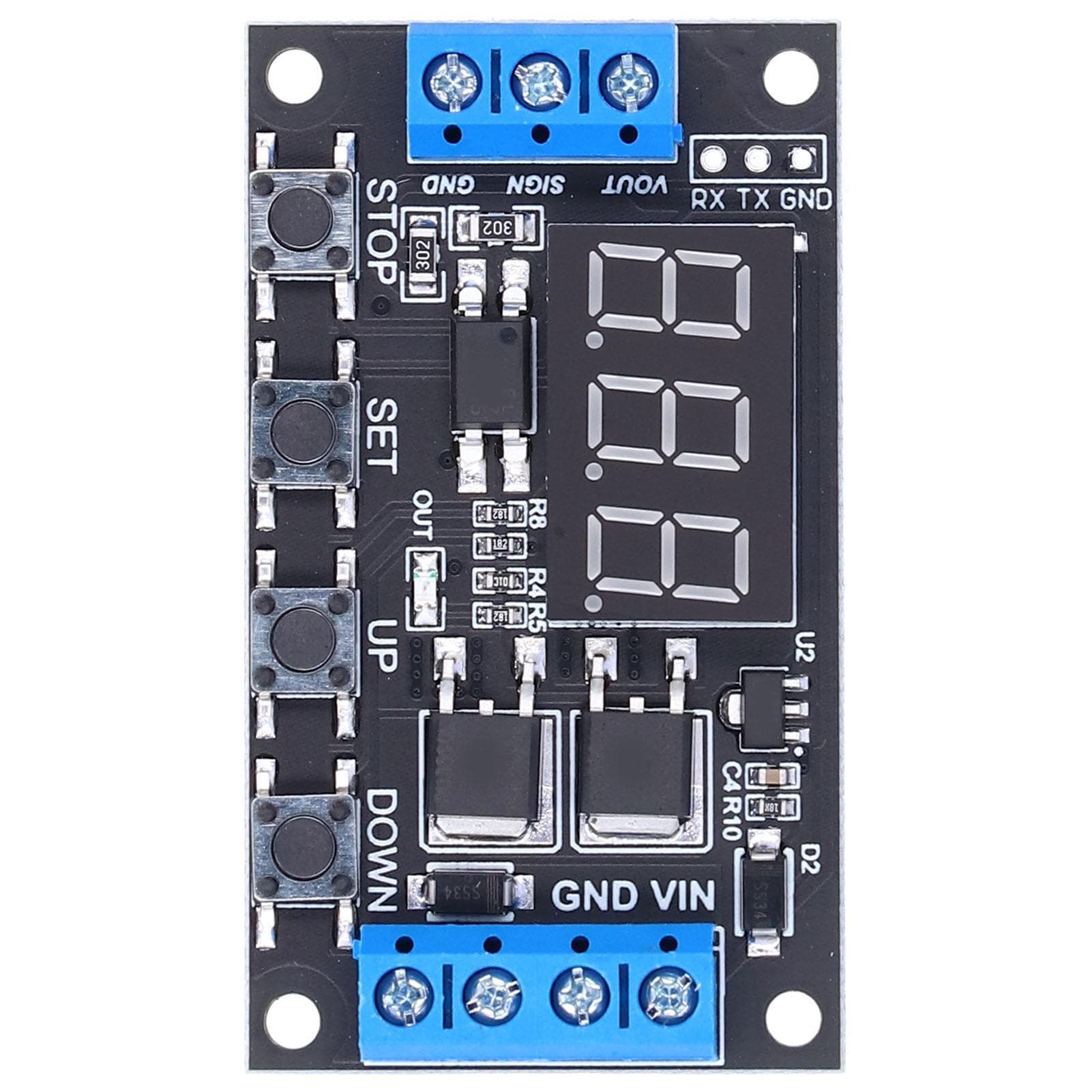

Delay Module Digital Trigger Cycle Timing Delay Module LED Relay Board for Industrial Control

About this item

• Feature: 1. Wide voltage work, most equipment can be used, very convenient, one?button emergency stop function, with reverse connection protection, reverse connection does not burn. 2. The interface is clear and simple, powerful, easy to understand, which can meet the needs of various work scenarios. 3. With sleep mode, without any operation within 3 minutes, it will automatically turn off the display, energy saving and environmental protection, any key to wake up. 4. Different OP, CL, LOP, CLL, CLH parameters can be set, and the parameters are independent of each other and saved separately. 5. New serial port communication function, convenient to read and set parameters, all set parameters are automatically saved after poweroff. Specification: Item Type: Delay Module Material: Printed Circuit Board Working Voltage: DC 530V Trigger Signal Source: High Level Trigger (DC3V24V), Switch Trigger, Serial Communication Trigger Output Capacity: Can Control Equipment within DC30V 5A or AC220V 5A Quiescent Current: 20mA Working Current: 50mA Service Life: More Than 100,000 Times Working Temperature: 40 celsius 85 celsius Purpose: Delay Trigger Action Applicable Scenarios: Industrial Control, Electronic Equipment. Package List: 1 x Delay Module Note: The relay output is a passive contact, uncharged output, which controls the on‑off function of a line.Wide voltage work, most equipment can be used, very convenient, one?button emergency stop function, with reverse connection protection, reverse connection does not burn. The interface is clear and simple, powerful, easy to understand, which can meet the needs of various work scenarios. With sleep mode, without any operation within 3 minutes, it will automatically turn off the display, energy saving and environmental protection, any key to wake up. Different OP, CL, LOP, CLL, CLH parameters can be set, and the parameters are independent of each other and saved separately. New serial port communication function, convenient to read and set parameters, all set parameters are automatically saved after poweroff.
