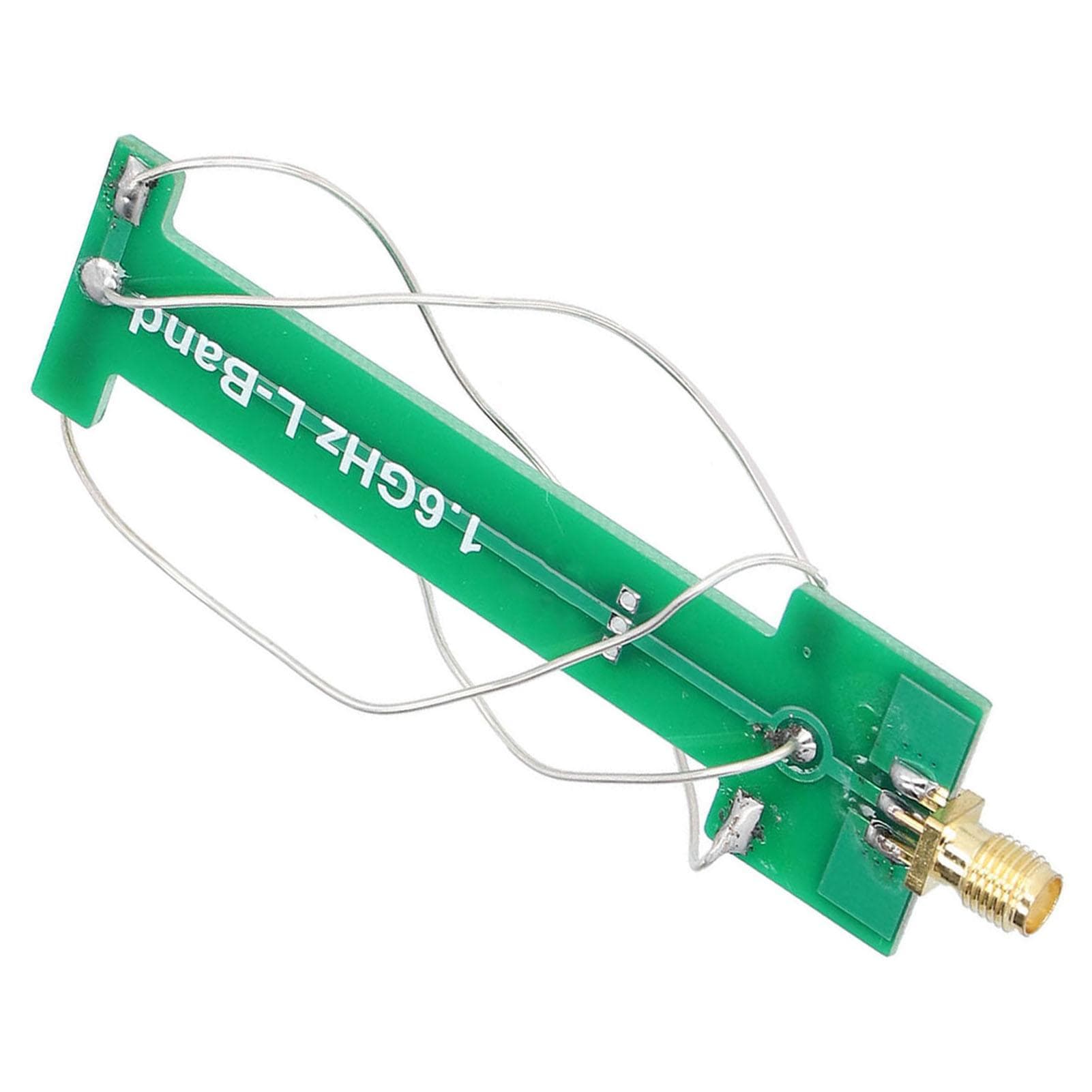

4 Arm Helical Antenna PCB Wide Range Electronic Component for Positioning SystemGreen

About this item

• Feature: 1. PCB adopts 1.6mm thick doublesided board, 2.0 oz copper thickness, and full tinning process to ensure good passing performance of large and small currents 2. Four?arm helical antenna has a wide range of applications, including aerospace, meteorology, positioning, relay and many other fields 3. The current amplitudes of the feed ends of the four spiral arms are equal, and the phases are different by 90 degrees in turn 4. With cardioid pattern, good fronttoback ratio and excellent widebeam circular polarization characteristics 5. 1.6G fourarm helical antenna is very suitable for use as a receiving antenna for satellite positioning systems Specification: Item Type: Four?Arm Helical Antenna Material: PCB Purpose: Used in fields such as sky, weather, positioning, relay antenna, etc. Antenna Impedance: 50 Ohm Working Frequency Band: 1.4 ~ 1.68GHz Antenna Connector: SMA (male). Package List: 1 x FourArm Helical Antenna Note: Do not use it outside the frequency and impedance range.PCB adopts 1.6mm thick doublesided board, 2.0 oz copper thickness, and full tinning process to ensure good passing performance of large and small currents Four?arm helical antenna has a wide range of applications, including aerospace, meteorology, positioning, relay and many other fields The current amplitudes of the feed ends of the four spiral arms are equal, and the phases are different by 90 degrees in turn With cardioid pattern, good fronttoback ratio and excellent widebeam circular polarization characteristics 1.6G fourarm helical antenna is very suitable for use as a receiving antenna for satellite positioning systems
