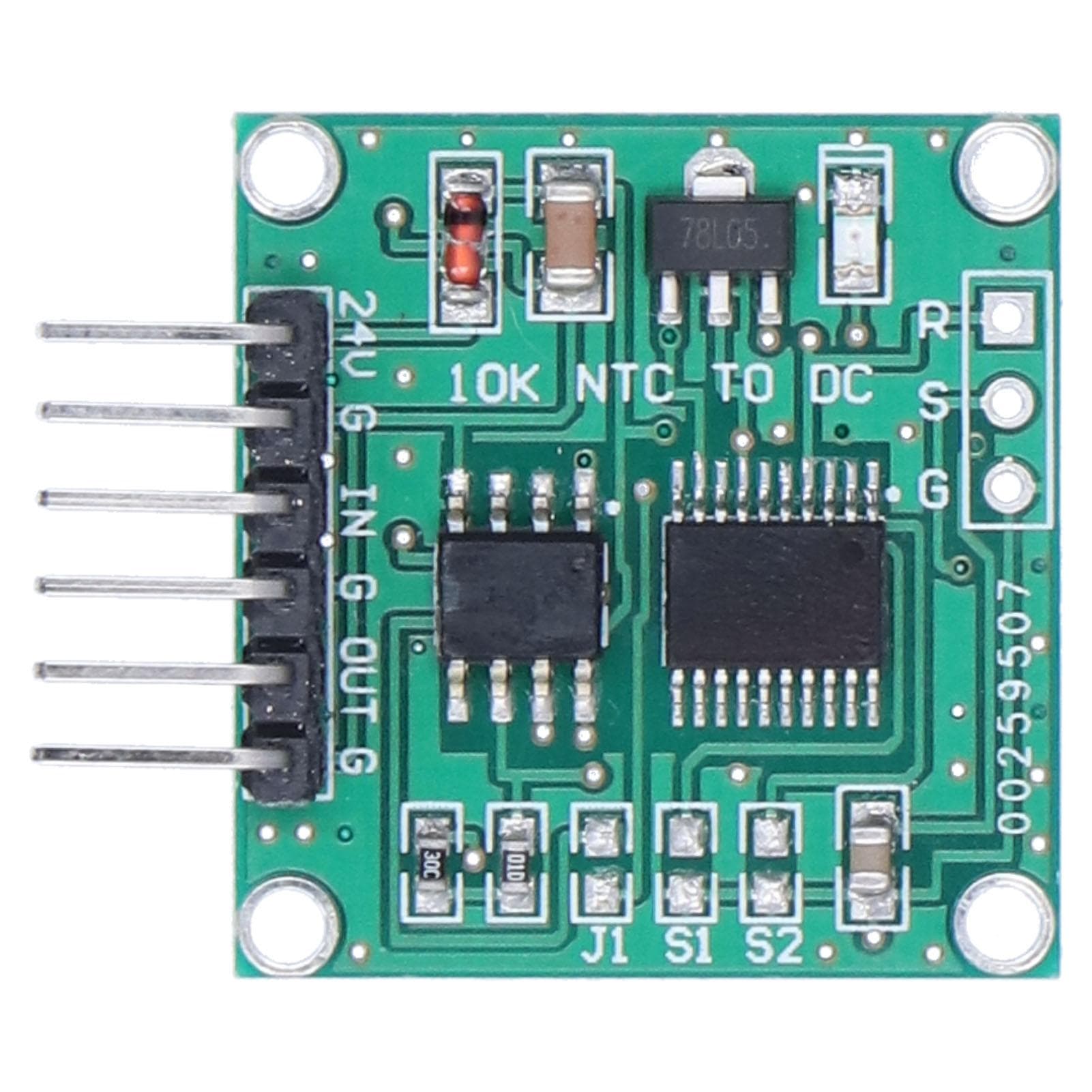

Voltage Converter Module NTC Linear Conversion Thermistor to Voltage Temperature Transmitter Module

About this item

• Feature: 1. The voltage conversion module has a wide range of applications, suitable for remote data acquisition and control equipment. 2. The transfer voltage module is small and easy to carry, you can even put it in your pocket. 3. The testable temperature of the thermistor to voltage module is ?40 to +150 celsius . 4. The voltage conversion parts are made of PCB material, with high density, assemblability, testability, etc. 5. The input voltage range of the converter voltage module is 9V to 24V; the output voltage range is 0V to 5V or 0V to10V. Specification: Item Type: Voltage Converter Module Material: PCB Model: 10K NTC Module Parameters Working Voltage: 9V ~ 24V Input Resistance: NTC 10K Thermal Resistance (b Value 3435k) Output Voltage: 0.00V ~ 5.00V0.00V ~ 10.00V Output Mode: Pad on the Circuit Board: Open Circuit (output 0.00v ~ 5.00v); Short Circuit (output 0.00V~ 10.00V), the Default is Open Circuit. Size: (length) 26mm x (width) 23mm x (height) 10mm 24v: Power Supply Positive Port (9V ~ 24V). G: Power Ground Interface. In: the Positive Interface of the Thermal Resistance. G: the Negative Terminal of the Thermal Resistance. Out: Signal Output Interface (0.00V ~ 5.00V0.00V ~ 10.00V). G: Power Ground Interface. Output (0.00V ~ 5.00V) Resolution: 0.0263157v celsius (voltcelsius) Output (0.00V ~ 10.00V) Resolution: 0.0526315v celsius (voltcelsius). Package List: 1 x Voltage Converter Module Note: Note: When the output is 0.00V ~ 10.00V, the power supply voltage must be 15V. Calculate the measured temperature equation: (output voltage (V)resolution) ?40 celsius = measured temperature ( celsius ).The voltage conversion module has a wide range of applications, suitable for remote data acquisition and control equipment. The transfer voltage module is small and easy to carry, you can even put it in your pocket. The testable temperature of the thermistor to voltage module is ?40 to +150 celsius . The voltage conversion parts are made of PCB material, with high density, assemblability, testability, etc. The input voltage range of the converter voltage module is 9V to 24V; the output voltage range is 0V to 5V or 0V to10V.
