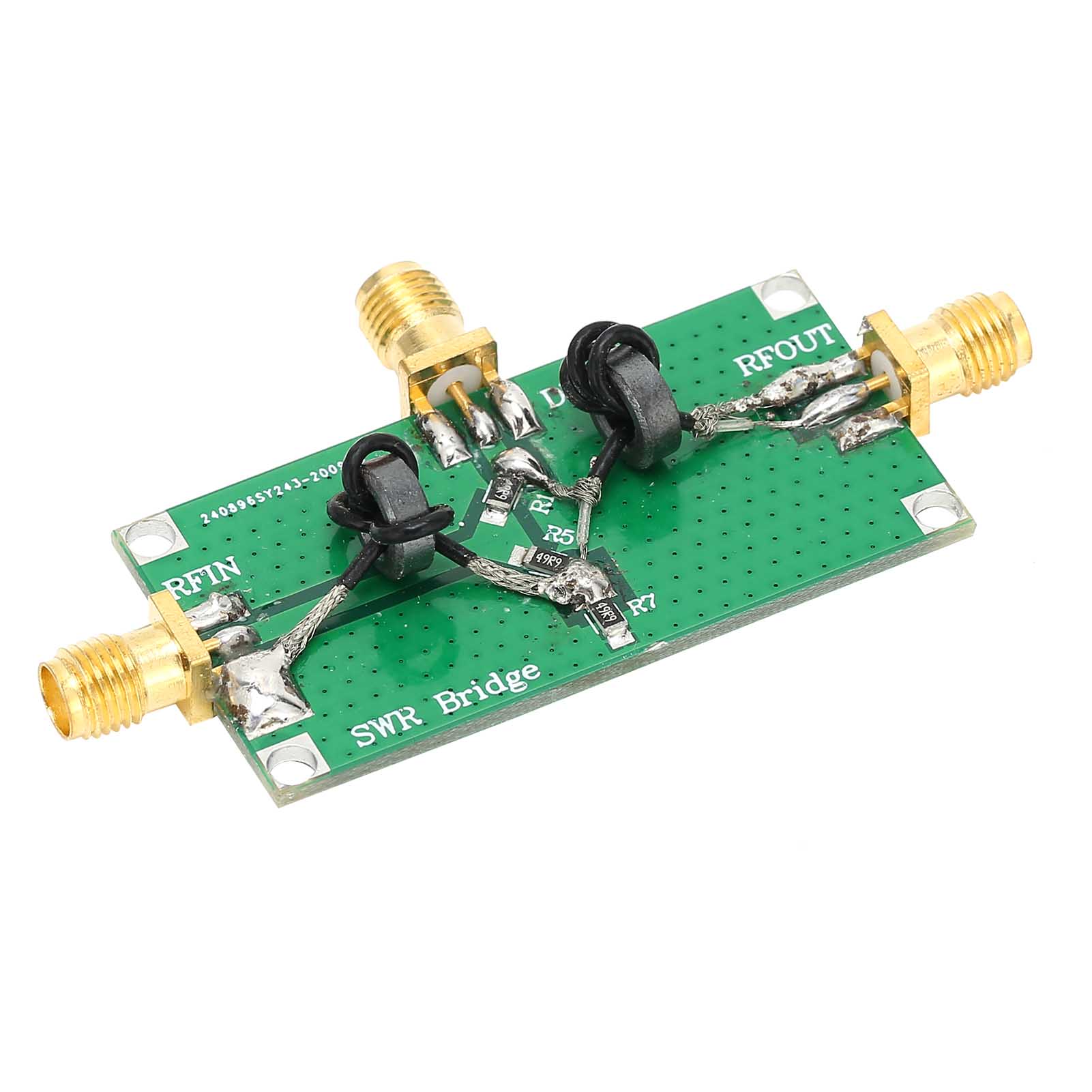

10?3000MHz VSWR Bridge Module VSWR Detector Antenna Analyzer Reflective Bridge

About this item

• Feature: 1. For RF network measurement, the output reflected signal has both amplitude and phase information. 2. With the characteristics of wide frequency and high orientation. 1MHz ~ 3GHz (1MHz ~ 2.6GHz is relatively flat) of the frequency range. 3. Widely used in antenna measurement and debugging, radio frequency circuit and radio, television and communication equipment measurement and debugging. 4. PCB Adopts 1.6mm thick double?sided sheet and the whole process of tin spraying treatment, stable performance. 5. Maximum input power less than 0.2W, with good passing performance of both large and small currents. Specification: Item Type: VSWR Bridge Material: PCB Frequency Range: 1MHz ~ 3GHz (1MHz ~ 2.6GHz is relatively flat) Characteristic Impedance: 50 Ohm Direction: more than 30dB Maximum Input Power: less than 0.2W. Package List: 1 x VSWR Bridge Note: 1. Do not overload.2. Do not use under overpressure.3. Do not use over current.For RF network measurement, the output reflected signal has both amplitude and phase information. With the characteristics of wide frequency and high orientation. 1MHz ~ 3GHz (1MHz ~ 2.6GHz is relatively flat) of the frequency range. Widely used in antenna measurement and debugging, radio frequency circuit and radio, television and communication equipment measurement and debugging. PCB Adopts 1.6mm thick double?sided sheet and the whole process of tin spraying treatment, stable performance. Maximum input power less than 0.2W, with good passing performance of both large and small currents.
