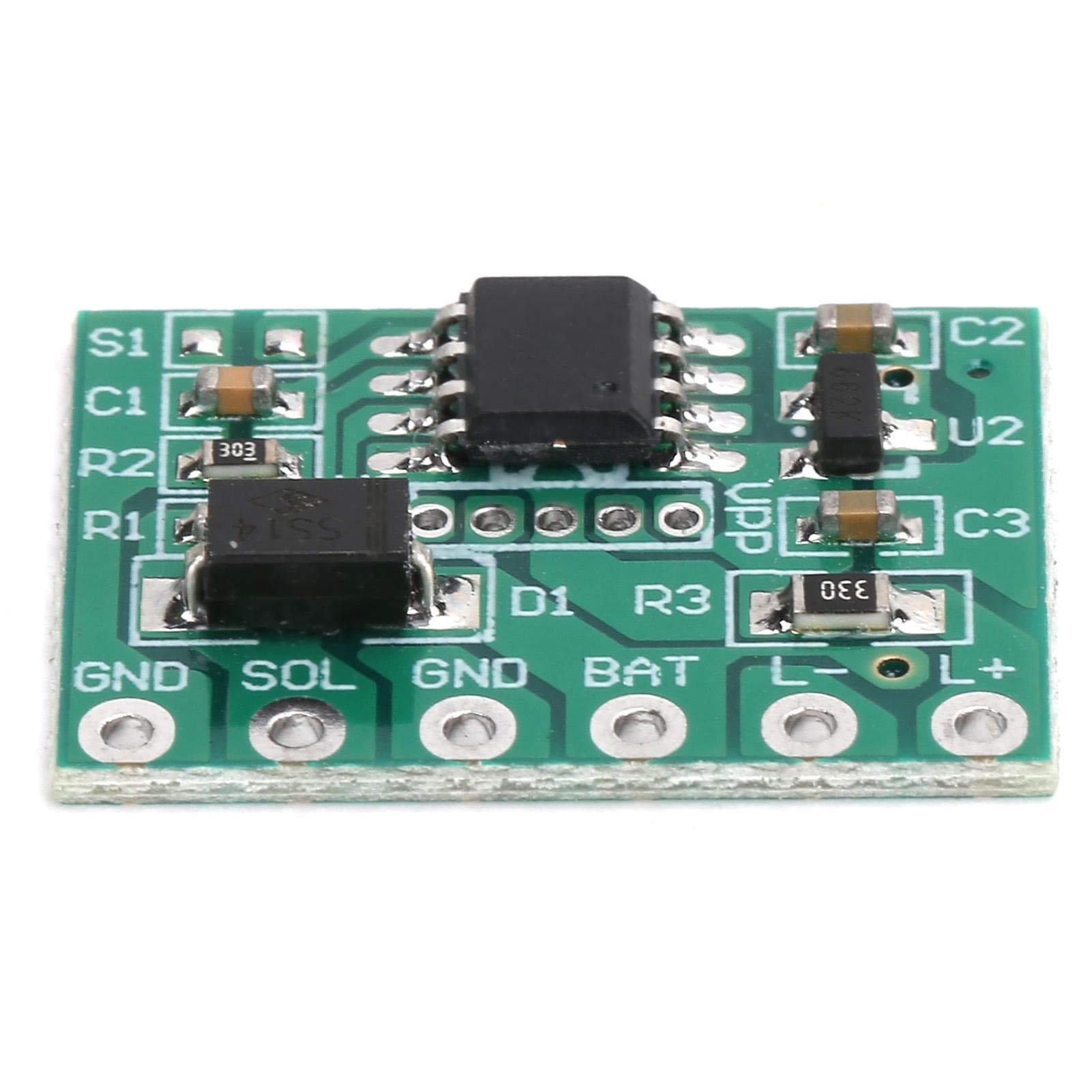

Solar Lamp Controller Module Timer Flashing Road Stud Light with DoubleSided Aluminum DC5V

About this item

• Feature: 1. This module can time 12?hour to light up, which is very convenient for transportation. 2. With small size and light weight, this module is very simple and quick to install. 3. With light control function and no photoresistor, this module can realize charging during the day and automatically lighting at night by monitoring solar voltage. 4. This module can be set to be always on or flashing, the default is long on, shortcircuit S1 is flashing. 5. Made of glass fiber, this module is extremely strong and durable after long time use. Specification: Item Type: Solar Lamp Controller Module Material: Glass fiber Model: 12S1 Charging Current: Up to less than 0.5A White Lamp Beads: About 10mA Default Use: White lamp beads Settings: Always on or flashing, the default is long on, shortcircuit S1 is flashing, and the flashing frequency is about 2Hz when set to flashing mode; the overall lowpower design of the circuit board, long lighting time; singlecell lithium iron 3.2V, single Both lithiumsaving 3.7V and three series of NiMH can be used (need to have a builtin battery charging and discharging protection board) Function: With light control function, no photoresistor, realized by monitoring solar voltage: Charging during the day and automatically lighting at night. Circuit board size: Length: Approx. 20mm 0.8in Width: Approx. 15mm 0.6in Solar Panel Voltage: About 5V Solar Panel Current: Determine by yourself according to the use environment, solar charging current can not exceed 500mA Battery specifications: singlecell lithium iron, singlecell lithium battery, three strings of NiMH (the battery needs to have a builtin protection board to prevent overcharge and overdischarge) Battery capacity: Determine by yourself according to the use environment Battery Discharge Current: When using white light, it is about 10mA, and the discharge current cannot exceed 20mA. Flashing frequency: When set to flash, the flashing frequency is about 2Hz (other frequencies can be customized). Package List: 1 x Module1 x User Manual Note: 1.The actual voltage of the solar panel and battery cannot exceed 6V, otherwise the circuit board will be damaged! ! ! 2.The circuit board uses a large?scale integrated circuit chip, which is sensitive to static electricity, and anti?static measures must be taken when soldering, otherwise the circuit board will be damaged.This module can time 12?hour to light up, which is very convenient for transportation. With small size and light weight, this module is very simple and quick to install. With light control function and no photoresistor, this module can realize charging during the day and automatically lighting at night by monitoring solar voltage. This module can be set to be always on or flashing, the default is long on, shortcircuit S1 is flashing. Made of glass fiber, this module is extremely strong and durable after long time use.
