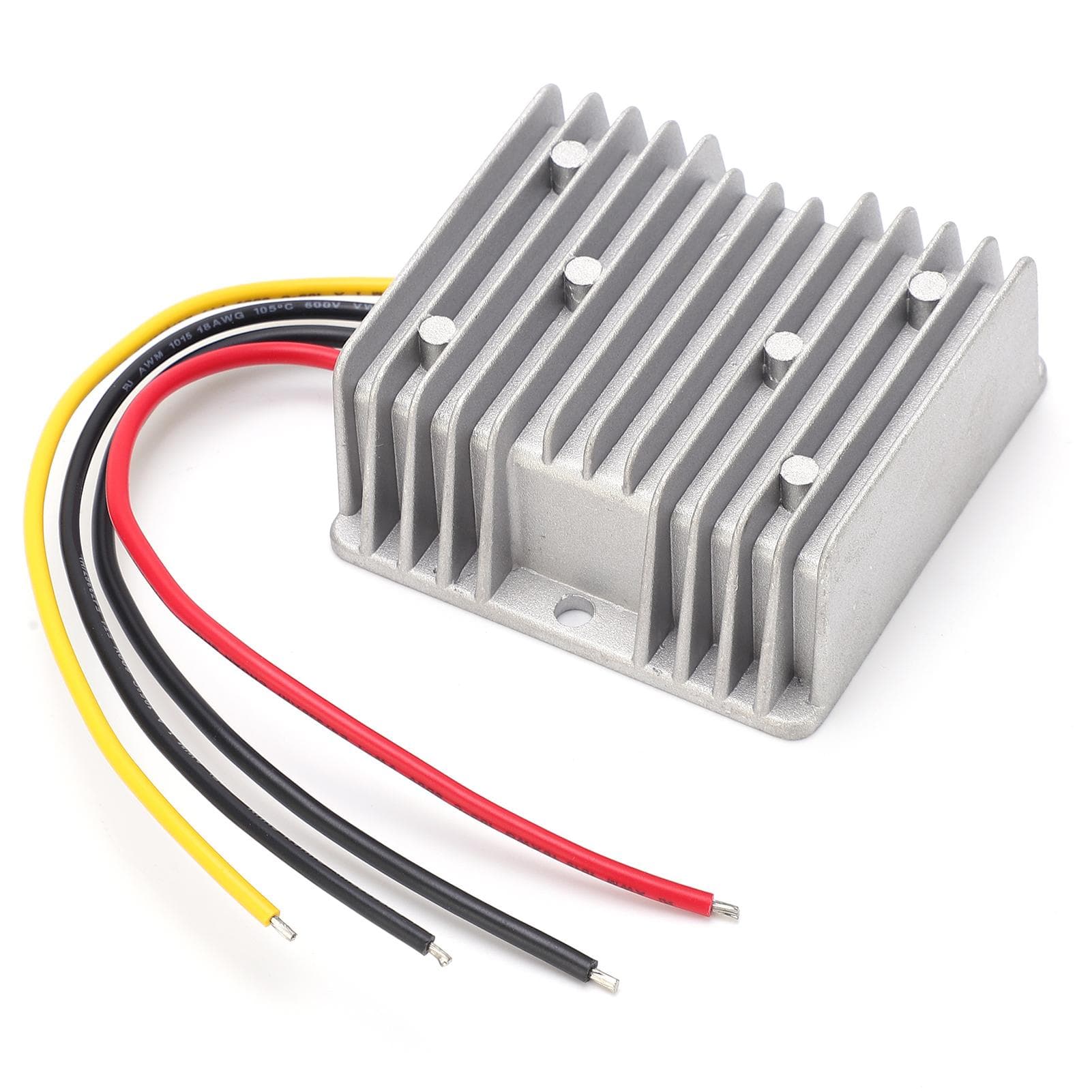

DC to DC Voltage Converter 12V to 24V 5A 120W DIY Power Supply Boost Transformer TBS1224C120Z

About this item

• Feature: 1. Aluminum alloy heat sink shell, which is integrally formed for better heat dissipation 2. Resin potting is completely sealed. Silicone potting has better thermal conductivity 3. Using special customized electrolytic capacitor. Filter capacitor have high frequency and high ripple 4. Filter inductance possess high magnetic flux density, and using high temperature imported iron silicon aluminum magnetic ring 5. SMT process, the resistance and capacitance MOS tubes are all SMD originals, with high integration, high reliability and high stability Specification: Item Type: DC to DC Voltage Converter Model: TBS1224C120Z Material: Diecast aluminum Input Voltage Range: 1016V Output Voltage: 24V Output Current: 5A Output Power: 120W Product Shell Size: Approx. 74 x 74 x 32mm 2.9 x 2.9 x 1.3in Working Temperature: 4080 celsius Waterproof Rating: IP68 Uses: Motors, car navigation systems, recorders, photovoltaic panels, LED strips, bulbs, fans, cameras. Package List: 1 x DC to DC Voltage Converter Note: 1. Please correct wiring and installation, and confirm that the positive and negative polarities of the input and output are correct before powering on to work.2. The battery power at the input end is within the input voltage range and the power is sufficient to ensure the normal operation of the power converter.3. Please install in a well?ventilated environment to avoid over?temperature protection of the power converter due to heat accumulation.Aluminum alloy heat sink shell, which is integrally formed for better heat dissipation Resin potting is completely sealed. Silicone potting has better thermal conductivity Using special customized electrolytic capacitor. Filter capacitor have high frequency and high ripple Filter inductance possess high magnetic flux density, and using high temperature imported iron silicon aluminum magnetic ring SMT process, the resistance and capacitance MOS tubes are all SMD originals, with high integration, high reliability and high stability
