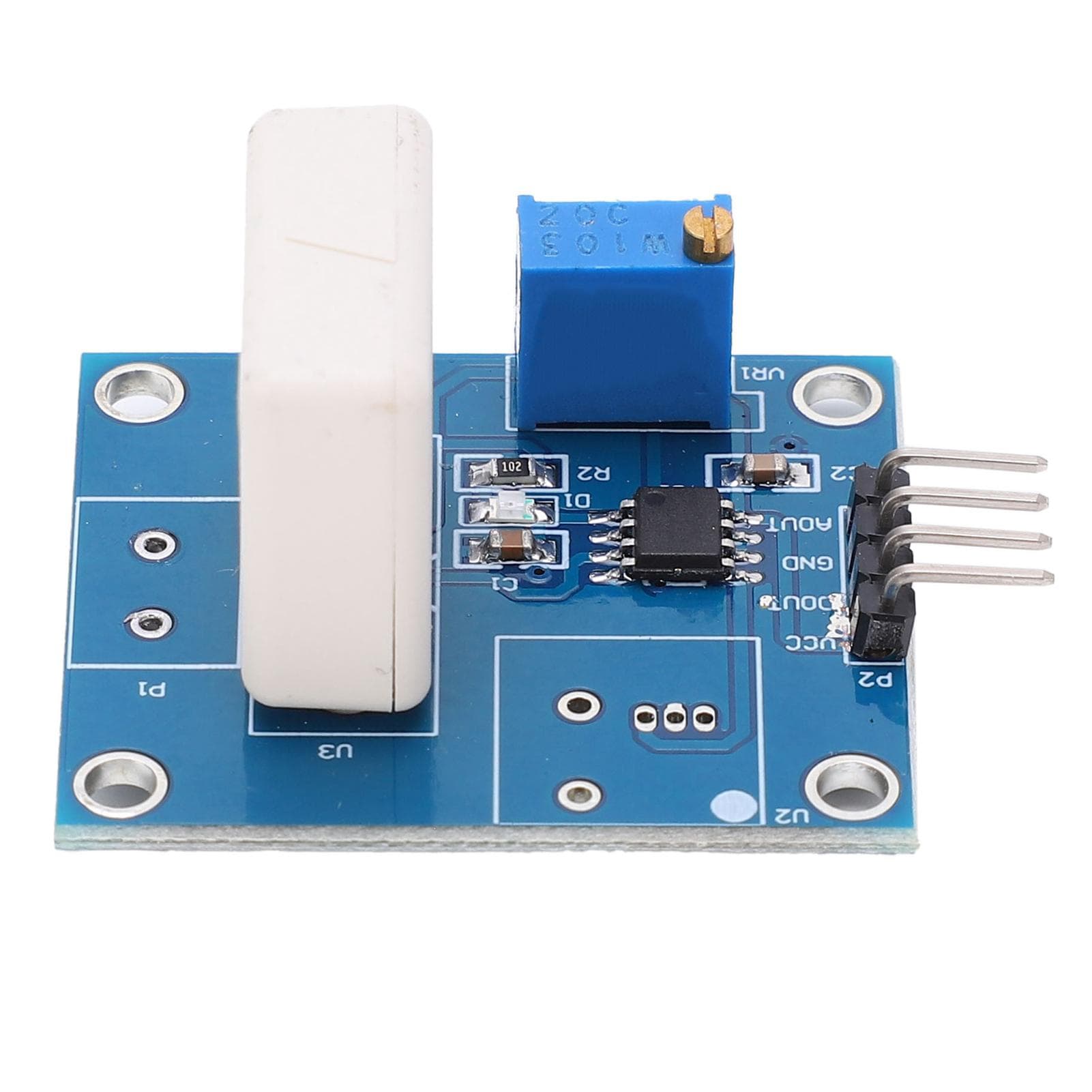

DC 5V Hall Current Detection Sensor Module 35A Short Circuit Overcurrent Protection Detector WCS1800

About this item

• Feature: 1. The output signal is analog voltage signal and switch signal, stable performance. 2. With over?current LED signal indicator, provide intuitive indication. 3. Two output modes can be selected to meet different work requirements. 4. Current detection range: DC: +35A; AC: 25A, suitable for analog output. Current limit range: 0.5A?35A, suitable for switch output. 5. With mounting holes, convenient for firmware installation, save time and effort. Specification: Item Type: Hall Current Sensor Material: PCB Working Voltage: DC5V Current Detection Range: DC: +35A; AC: 25A (applicable to analog output) Current Limit Current Range: 0.5A35A (applicable to switch output) Output Signal: Analog voltage signal, switch signal Purpose: The first function is analog signal followed by operational amplifier, which is suitable for AD conversion. The second function is the switching signal, which can set the current limit value in advance. When the actual current value is greater than the preset current value, the switching signal will change from low level to high level, and it will be indicated by an LED indicator.. Package List: 1 x Hall Current SensorThe output signal is analog voltage signal and switch signal, stable performance. With over?current LED signal indicator, provide intuitive indication. Two output modes can be selected to meet different work requirements. Current detection range: DC: +35A; AC: 25A, suitable for analog output. Current limit range: 0.5A?35A, suitable for switch output. With mounting holes, convenient for firmware installation, save time and effort.
