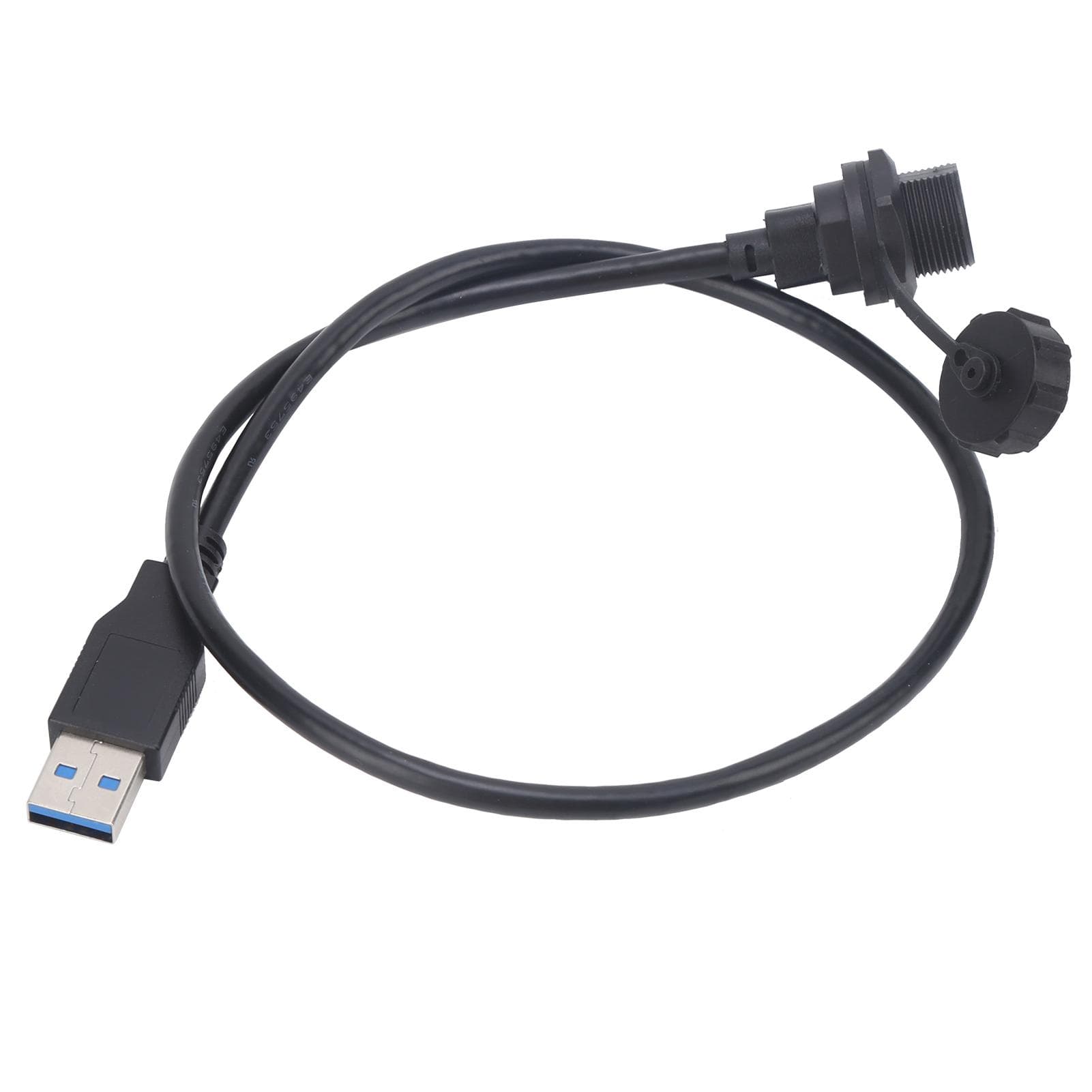

Waterproof USB Connector TypeC Female Thread Lock Panel Mount Power Outlet E10TPCTFFU3AM(0.5M )

About this item

• Feature: 1. The two ends of the socket are TypeC female and USB3.0 male, which use threaded locking design. 2. With IP67 high waterproof grade, it is widely used in machinery, outdoor, lighting, IOT and other waterproof equipment fields. 3. The shell is made of thermoplastic PA66, which has high strength and wear resistance. 4. The conductor is made of brass material, which has good conductivity and flame retardancy. 5. The installation structure is rich, with various forms such as wired?to?wire, front?board installation, rear?board installation, and PCB board type. Specification: Item Type: Waterproof USB Connector Model: E10TPCTFFU3AM Thread Specifications: 58in27UNS Cable Length: Approx. 0.3m 1ft, 0.5m 1.6ft, 1m 3.3ft Panel Hole Size: Approx. 15.8 x 15mm 0.62 x 0.59in Rated Voltage: 30V Rated Current: 1.5A Insulation Resistance: 2000m Ohm Applicable Temperature: 40 celsius ~+105 celsius Mating Times: more than 500 times Shell Material: Thermoplastic PA66 Flame Retardant Grade: V0 Conductor Material: Brass Cable Material: PVC sheath Connection Method: Thread lock (T) Waterproof Rating: IP67 Application: Widely used in some waterproof application scenarios such as mechanical equipment, outdoor equipment, lamps, IOT devices, etc.. Package List: 1 x Waterproof USB ConnectorThe two ends of the socket are TypeC female and USB3.0 male, which use threaded locking design. With IP67 high waterproof grade, it is widely used in machinery, outdoor, lighting, IOT and other waterproof equipment fields. The shell is made of thermoplastic PA66, which has high strength and wear resistance. The conductor is made of brass material, which has good conductivity and flame retardancy. The installation structure is rich, with various forms such as wired?to?wire, front?board installation, rear?board installation, and PCB board type.
