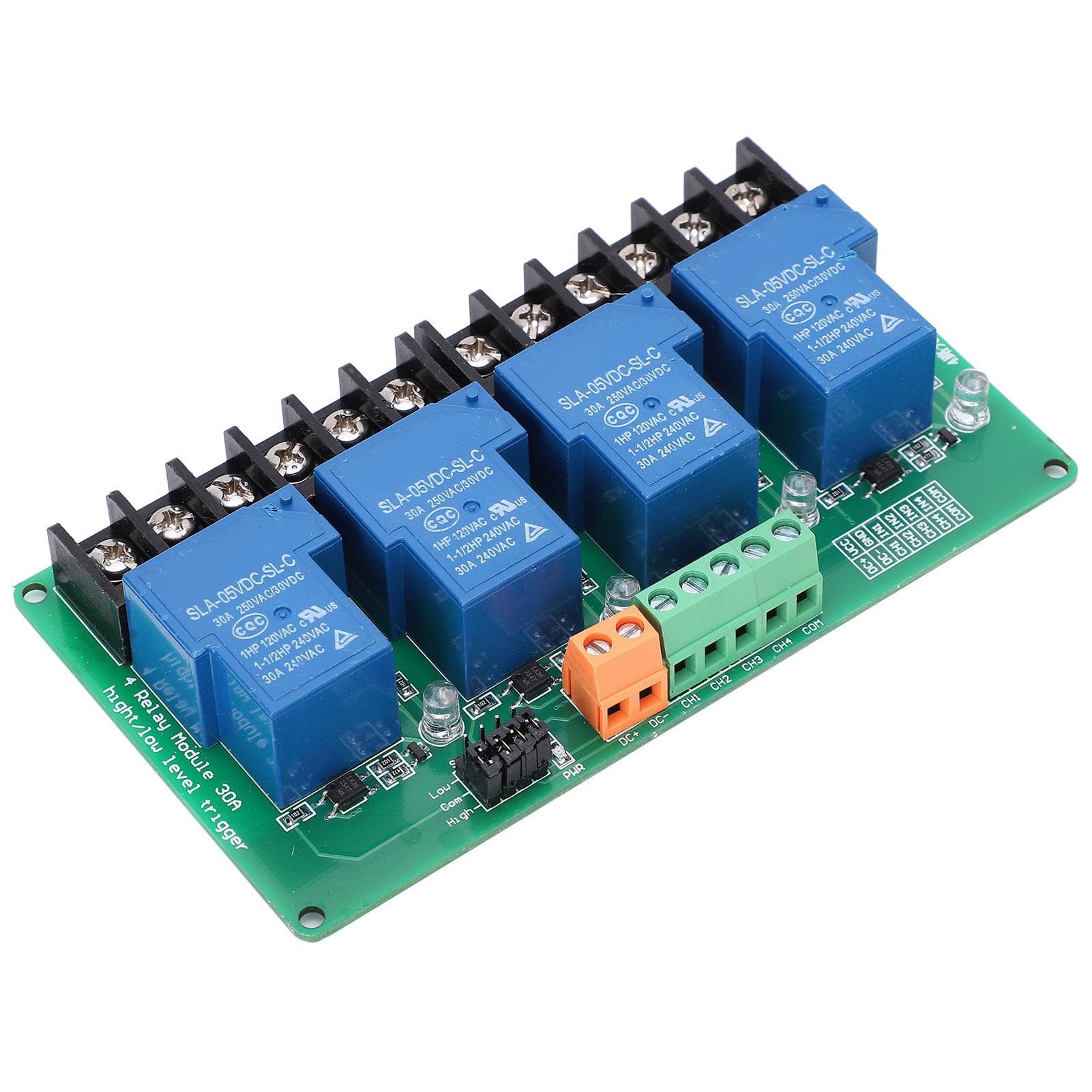

Relay Module 4 Channel Circuit Automatic Control High Low Level Trigger Electronic Component5V

About this item

• Feature: 1. Doublesided PCB board is adopted, which has higher density, and the layout of the whole module is reasonable and beautiful. 2. The relay module has 4 channels and uses a 30A highpower relay to control the load. 3. Each channel is equipped with optocoupler isolation, which has strong antiinterference ability. 4. Each channel is provided with a relay switch LED indicating that the on and off is clearly visible. 5. The relay module is often used in automated control circuits, and plays the role of automatic adjustment, safety protection, and conversion circuit. Specification: Item Type: Relay Module Quiescent Current: 5mA Maximum Working Current: 90mA80mA50mA Trigger Mode: Low levelhigh level Load Voltage: DC30A or AC250V Load Current: 30A Trigger Voltage Range: 5V Low Level Trigger Module: 02VDC relay is connected (ON), 35VDC relay is disconnected (OFF) 12V Low Level Trigger Module: 05VDC relay is connected (ON), 612VDC relay is disconnected (OFF) 24V Low Level Trigger Module: 012VDC relay is connected (ON), 1324VDC relay is disconnected (OFF) 5V High Level Trigger Module: 3.35VDC relay is connected (ON), 02.5VDC relay is disconnected (OFF) 12V High Level Trigger Module: 612VDC relay is connected (ON), 05.5VDC relay is disconnected (OFF) 24V High Level Trigger Module: 1224VDC relay is connected (ON), 08.5VDC relay is disconnected (OFF). Package List: 1 x Relay Module Note: Do not exceed the voltage range, otherwise it will cause the product to burn out.Doublesided PCB board is adopted, which has higher density, and the layout of the whole module is reasonable and beautiful. The relay module has 4 channels and uses a 30A highpower relay to control the load. Each channel is equipped with optocoupler isolation, which has strong antiinterference ability. Each channel is provided with a relay switch LED indicating that the on and off is clearly visible. The relay module is often used in automated control circuits, and plays the role of automatic adjustment, safety protection, and conversion circuit.
