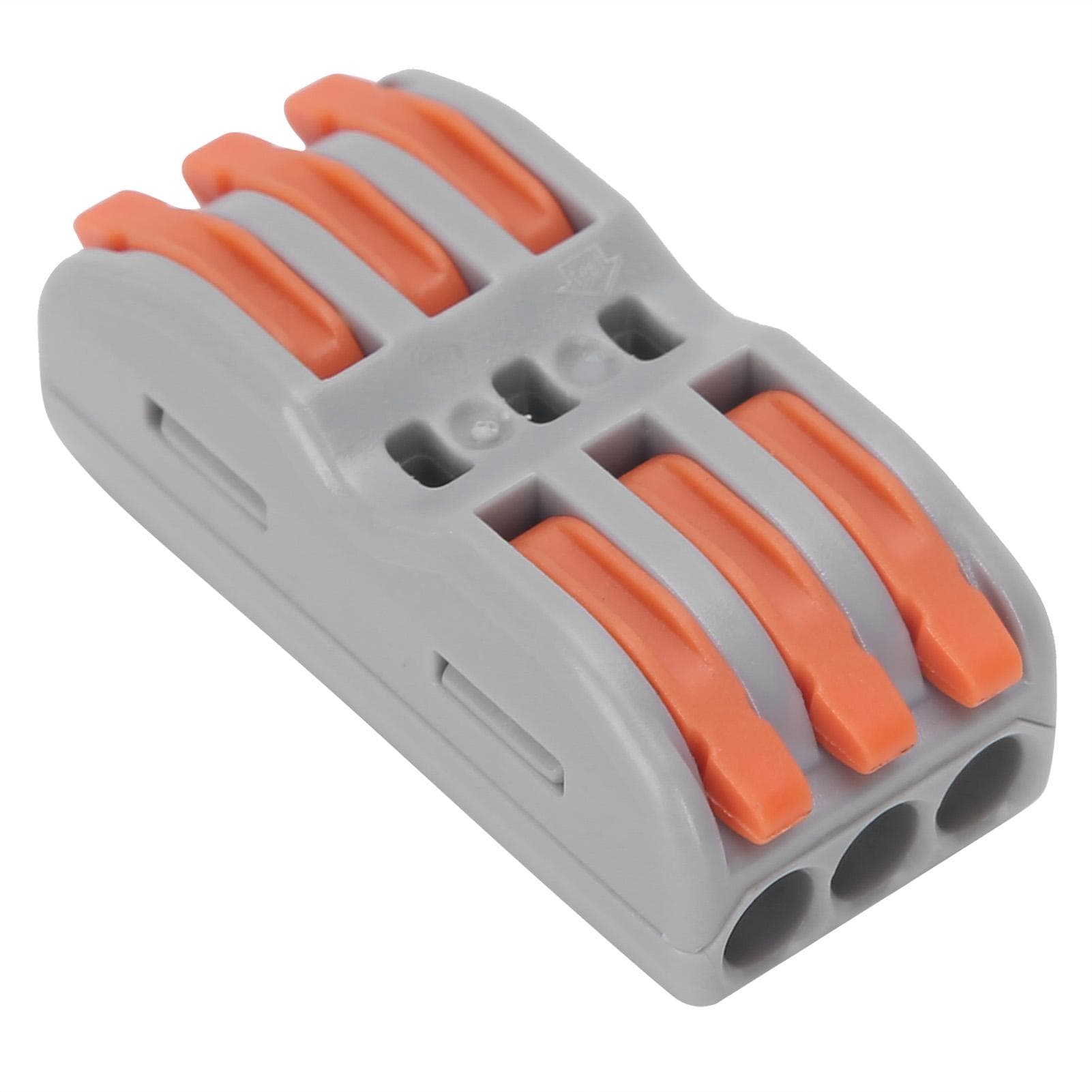

50Pcs Conductor Terminal Quick Compact Soft Hard Wire Connectors Industrial AccessoriesSPL3

About this item

• Feature: 1. The multifunctional hole design of this quick connector is widely applicable to different types of wires. 2. This conductor terminal shell is made of flameretardant PC material, flameretardant and high temperature resistant. 3. The quick compact conductor is made of copper with strong conductivity, rust resistance and corrosion resistance, stainless steel spring buckle, strong elasticity and not easy to loosen and fall off. 4. This conductor terminal adopts injection molding process, one?time molding, and the parameters are clearly marked. 5. The conductor terminal is used for lighting, motors, electrical control, power supplies, home appliances, machinery, home improvement, etc. Specification: Item Type: Conductor TerminalMaterial: PC, Copper, Stainless Steel Uses: Used for Lighting, Motors, Electrical Control, Power Supplies, Home Appliances, Machinery, Home Improvement, etc. Rated Voltage: 250V Rated Current: 32A Wire Diameter: 0.084.0mm2 Soft and Hard Wire Withstand Voltage: 4kV Environment Temperature: 40 celsius ~+105 celsius Stripping Length: Approx. 11 ~ 12mm 0.4 ~ 0.5in 1. SPL1: 1 in 1 out 2. SPL2: 2 in 2 out 3. SPL3: 3 in 3 out.SPL1: Size: Approx. 8.5 x 39.3 x 14.5mm 0.3 x 1.5 x 0.6inSPL2: Size: Approx. 13.6 x 40.3 x 14.5mm 0.5 x 1.6 x 0.6inSPL3: Size: Approx. 18.6 x 40.3 x 14.5mm 0.7 x 1.6 x 0.6in Package List: 50 x SPL Quick Connect TerminalThe multifunctional hole design of this quick connector is widely applicable to different types of wires. This conductor terminal shell is made of flameretardant PC material, flameretardant and high temperature resistant. The quick compact conductor is made of copper with strong conductivity, rust resistance and corrosion resistance, stainless steel spring buckle, strong elasticity and not easy to loosen and fall off. This conductor terminal adopts injection molding process, one?time molding, and the parameters are clearly marked. The conductor terminal is used for lighting, motors, electrical control, power supplies, home appliances, machinery, home improvement, etc.
