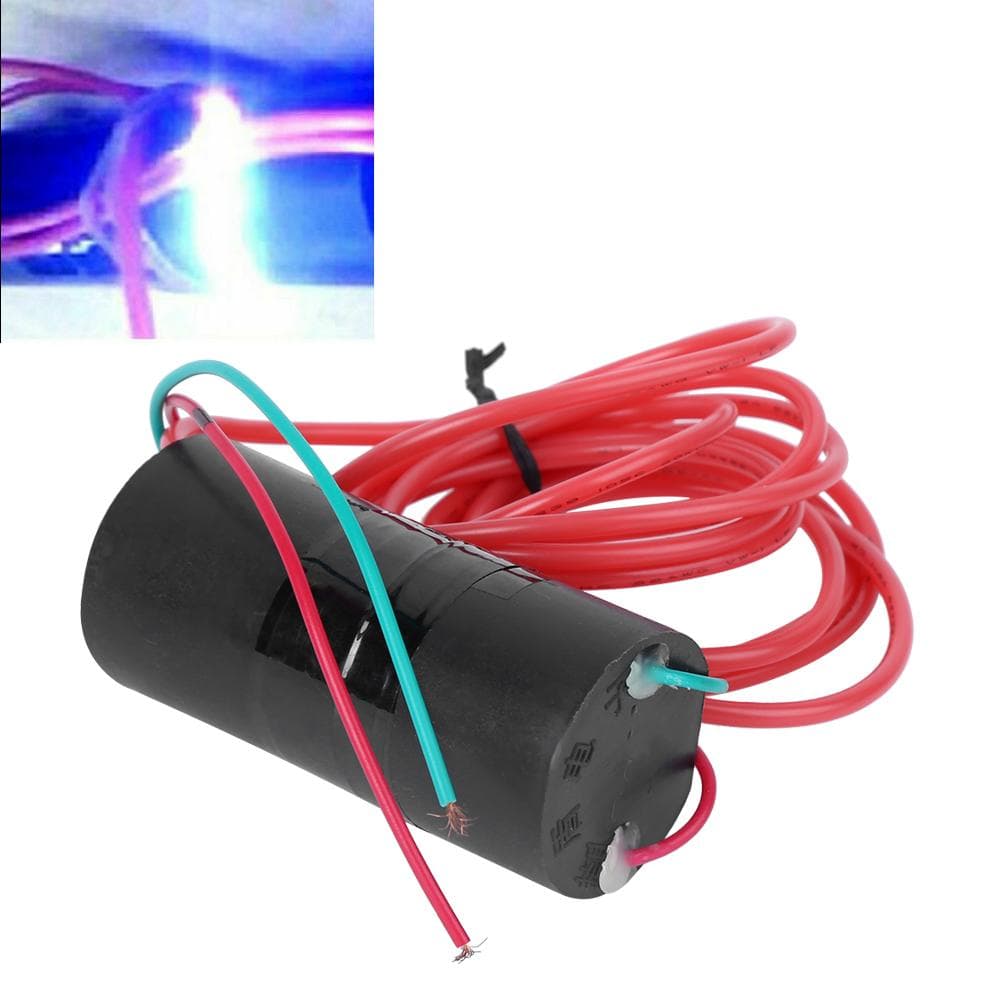

12V 500KV High Voltage Pulse Generator Boost Step Up Power Module Transformer

About this item

• Feature: 1. The highvoltage modulegenerator made by the circuit composed of components, can be used as a highvoltage source for school scientific experiments, electronic devices, negativeion generator and science small productions. 2. Adopt for tesla coil principle, output highvoltage pulses, powerful discharge intensity. 3. Compact size, high efficiency, stable and professional performance, dependable to use. 4. The input voltage is 6V12V and will output about 500KV high voltage. 5. Built to meet standard specification, strictly follow factory quality control. Specification: Condition: 100percent Brand New Item Type: HighVoltage Generator Material: Plastic Color: As picture shown Model: HX12VDY Length: Approx. 69.5mm 2.74in Diameter: Approx. 33.5mm 1.32in Plane Diameter: Approx. 32mm 1.26in Input Voltage: 6V12V Input Current: 0.5A1A Input Line Length: Approx. 25cm9.8in High Voltage Type: Pulse DC Type Output Voltage: About 500KV (Please Pay Attention to Safety when Using) Output Current: 0.005A Output Line Length: Approx. 92cm36.2in High Voltage Discharge Distance: 1cm4cm About Power Supply: Can use single section 3.7V lipo battery or two series connection, such as 18650 battery, idle mobile phone battery (remove protection board, recommended capacity is above 2000mAh) or nickelcadmiumnickelhydrogen battery pack, 6V or 12V acid Battery and so on (6V battery can achieve the best effect).. Package List: 1 x HighVoltage Generator Note: Precautions for Using the Module:1. The highvoltage module should avoid being energized when the highvoltage is noload. Before powering on, the appropriate distance of the highvoltage line end must be adjusted. The arcing distance of the highvoltage line is proportional to the battery voltage and capacity used.2. Experiment from short to long when testing the arc distance. It is strictly forbidden to exceed the maximum arc distance when energized, because the high voltage energy cannot be released and the module is easily damaged.3. The power of the module is large, and the internal is not suitable for heat dissipation, so it is not allowed to work for a long time.4. The method to judge whether the battery capacity can drive the maximum output power is to measure the battery voltage when the arc is drawn. If it is around 6V, it can output the maximum power.5. The two sections of small capacity lipo batteries are connected in series at 7.2V. The measurement voltage has dropped to about 4V in the arcing state. The smaller the capacity, the lower the voltage. Therefore, it is recommended to use lipo batteries above 2000MA, and it is best to match batteries above 4000MA if possible.The highvoltage modulegenerator made by the circuit composed of components, can be used as a highvoltage source for school scientific experiments, electronic devices, negativeion generator and science small productions. Adopt for tesla coil principle, output highvoltage pulses, powerful discharge intensity. Compact size, high efficiency, stable and professional performance, dependable to use. The input voltage is 6V12V and will output about 500KV high voltage. Built to meet standard specification, strictly follow factory quality control.
