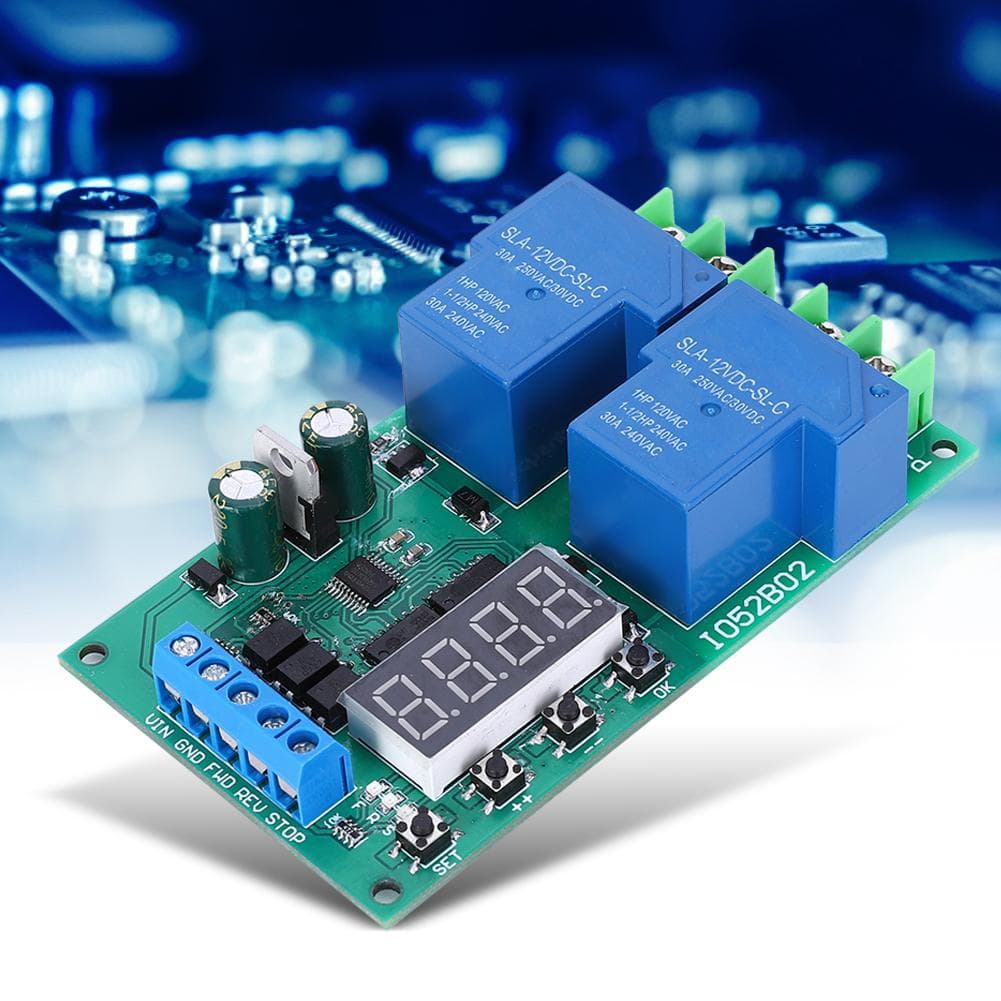

30A12V Multifunction Motor Forward Reverse Controller Start stop Delay Limit Switch Relay

About this item

• Feature: 1. This is a 30A multifunction DC AC motor forward and reverse controller. 2. It has multiple control methods, high efficiency and stable performance. 3. Through reasonable settings, many kinds of control functions can be derived. 4. Made of high quality metal components, anticorrosion and high strength for maximum durability. 5. Low pulse control mode, more convenient to use. Specification: Condition: 100percent Brand New Item Type: Motor Controller Material: Metal Color: As Pictures Shown Working Voltage: DC 12V Working Current: (Normal mode) standby current 22mA, working current 109mA; (Energy saving mode) Standby current 7mA, working current 76mA. There are three input control ports: forward control, reverse control and stop control. Two input trigger modes, low pulse trigger mode, low level trigger mode Delay Time: 0.1999.9s, 19999s, 19999 minutes. Number of Cycles: No cycle, 299 cycles, Cycle forever.Three Indicator Lights: Forward indicator light, reverse indicator light, stop indicator light. 6 functional modes Relay Load Current: 30A 250VAC 30VDC Size: Approx. 97.5 x 56 x 24mm 3.8 x 2.2 x 0.9in Port: VIN: Positive power supply, DC 12V power supply GND: Negative power supply FWD: Forward rotation input control (some function modes are invalid) REV: Reverse input control (some function modes are invalid) STOP: Stop input control (some function modes are invalid) M +: Motor positive M: Motor negative P +: Positive pole of motor power supply P: Negative pole of motor power supply. Package List: 1 x ForwardReverse Controller ModuleThis is a 30A multifunction DC AC motor forward and reverse controller. It has multiple control methods, high efficiency and stable performance. Through reasonable settings, many kinds of control functions can be derived. Made of high quality metal components, anticorrosion and high strength for maximum durability. Low pulse control mode, more convenient to use.
