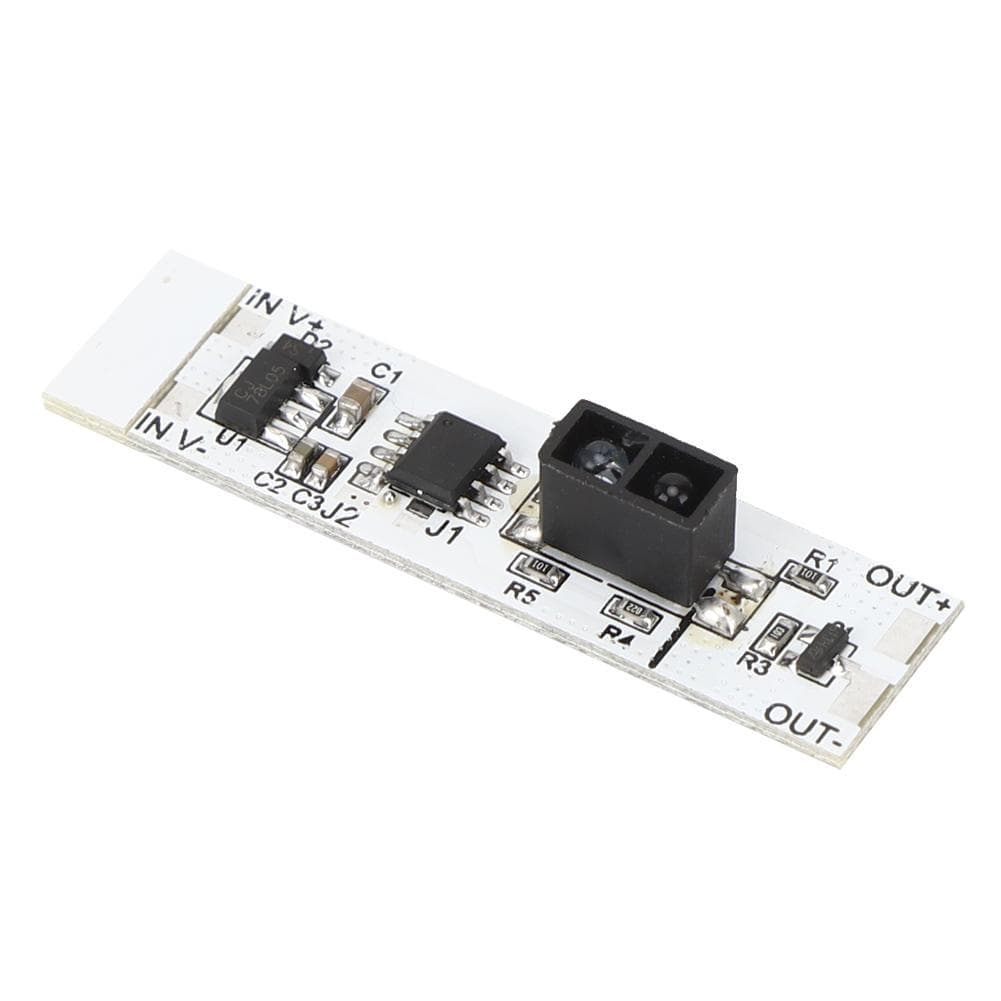

Infrared Reflection Sensor Switch Module Hand Sweep Function for LED Cabinet Lamp DC5V12V

About this item

• Feature: 1. Widened output pad, suitable for most commonly used lamp boards on the market 2. Suitable for 8A MOS tube, the maximum load can reach 72W 3. Made of high quality material, durable and long service life 4. The product can fit for LED cabinet lamp 5. The design has sufficient margins to prevent the builtin aluminum groove lamp housing and avoid short circuit caused by the components touching the lamp housing Specification: Item Type: Sensor Switch ModuleModel: LZGHVG Name: Infrared reflection sensor switch (hand sweepblock) Working Voltage: DC 5V12V universal Effective Sensing Distance: 18cm High Sensitivity Distance: 5cm Dimming Level: Not dimmable Features: MOS tube 30V 8A Maximum Load: The maximum load can reach 8A, it is recommended to use within 5A Working Principle: Infrared photoelectric reflection (once off on once by hand sweep) This module has two functions: 1. The default order is the hand sweep function, 2. The shorting of the J1 solder joint is the blocking functionSize: Approx. 41 x 12 x 1.2mm 1.61 x 0.47 x 0.05in. Package List: 1 x Switch Module1 x User ManualWidened output pad, suitable for most commonly used lamp boards on the market Suitable for 8A MOS tube, the maximum load can reach 72W Made of high quality material, durable and long service life The product can fit for LED cabinet lamp The design has sufficient margins to prevent the builtin aluminum groove lamp housing and avoid short circuit caused by the components touching the lamp housing
