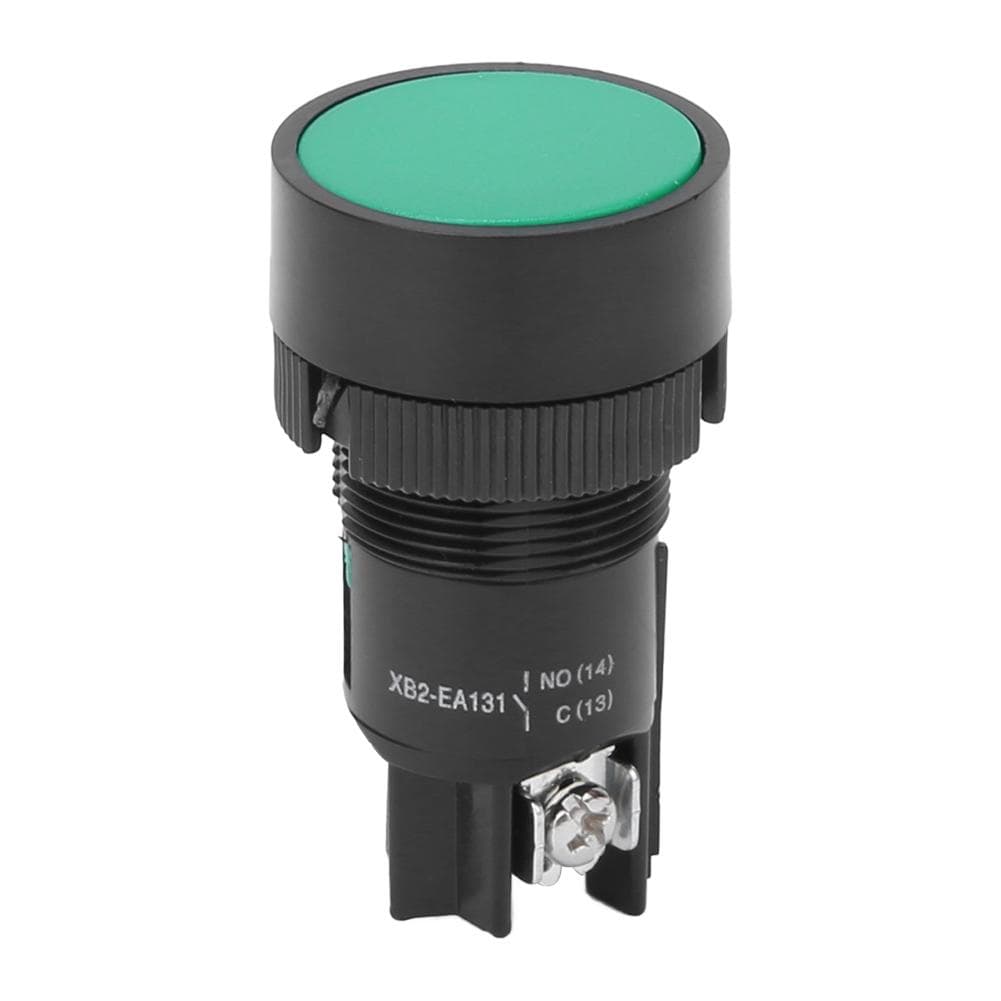

10PCs Plastic XB2 Flat Head Reset Control Button Switch 22mm for Switching CircuitGreen EA131

About this item

• Feature: 1. As for the safety, with builtin screwtype connection, and for safer function, the XB2B(E) series has powerful functions and can form a complex multifunction control system, which is very convenient to operate. 2. Permanently, control button XB2 series mechanical life is up to 10,000 times, which refers to the electrical life. 3. About solidity, it is an allmetal structure of the operating head and the fixed middle plate. 4. Its ruggedness and reliability are unmatched by any similar products. And antismashing operation may be removed from the front. 5. For reliability, all contacts have the dual function of switching circuit and selfcleaning. When the switch is working, the contact surface is wiped cleanly by sliding closure, so it is still used in low voltage and low current (5V, 5mA). And it can ensure the reliability of contact. Specification: Item Type: Switch Options: XB2EA131(Green, 1 normally open); XB2EA142 (Red, 1 normally closed) Technical Parameter A) 10A Electrical life: more than 600,000 times, other 100,000 times Rated Capacity AC15 220V6A 380V4A 660V2A Recommended Torque: 0.9Nm DC13 440V0.3A220V0.5A110V1A Power Frequency Withstand Voltage 2500V 60S Terminal: Suitable for IEC standard No. 2 screwdriver (+ wordshaped) and screw for DIN gasket Contact Resistance less than 25M Ohm Temperature: 25+55 degrees C Short Circuit Protection When the maximum shortcircuit current is 1kA, the fuse 16A (common), 10A (delay) . Package List: 10 x XB2 SwitchAs for the safety, with builtin screwtype connection, and for safer function, the XB2B(E) series has powerful functions and can form a complex multifunction control system, which is very convenient to operate. Permanently, control button XB2 series mechanical life is up to 10,000 times, which refers to the electrical life. About solidity, it is an allmetal structure of the operating head and the fixed middle plate. Its ruggedness and reliability are unmatched by any similar products. And antismashing operation may be removed from the front. For reliability, all contacts have the dual function of switching circuit and selfcleaning. When the switch is working, the contact surface is wiped cleanly by sliding closure, so it is still used in low voltage and low current (5V, 5mA). And it can ens
