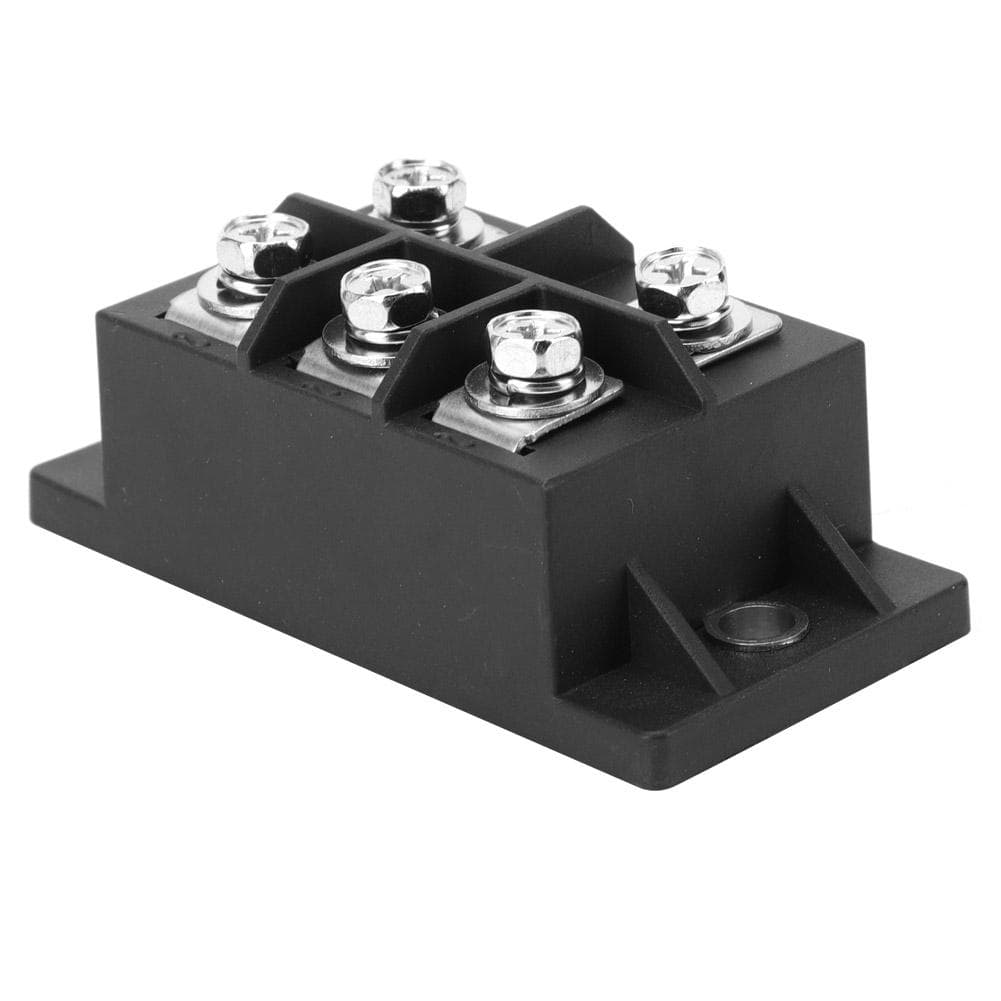

MDS100A 1600V Diode 3Phase Rectifier Large Power Bridge Rectifier 600~1600V for Multiple Purpose

About this item

• Feature: 1. This is a large power 3phase bridge rectifier module. 2. Widely used in militaryaerospace, household appliances, automotive electronics, new energy. 3. Welding mounting and sealed with resin,the structure is more strong. 4. Wide range of storage temperature from 40~125 celsius . 5. All components of the rectifier are well selected of high quality and good reliability. Specification: Item Type:Rectifier Model: MDS100A 1600V Package: Resin Package Installation Type: Welding Applications: Motor DC Output Current: 100A Reverse Repeat Peak Voltage: 6001600V Reverse Repeat Peak Current: 8mA Positive NonRepetitive Surge Current: 1.2KA Threshold Voltage: 0.8V Slope Resistance: 4.5m Ohm Forward Peak Voltage: 1.30V Insulation Voltage: 2500V Installation Torsion(M5): 4NMInstallation Torsion(M6): 6NM Storage Temperature: 40~125 degrees C. Package List: 1 x RectifierThis is a large power 3phase bridge rectifier module. Widely used in militaryaerospace, household appliances, automotive electronics, new energy. Welding mounting and sealed with resin,the structure is more strong. Wide range of storage temperature from 40~125 celsius . All components of the rectifier are well selected of high quality and good reliability.
