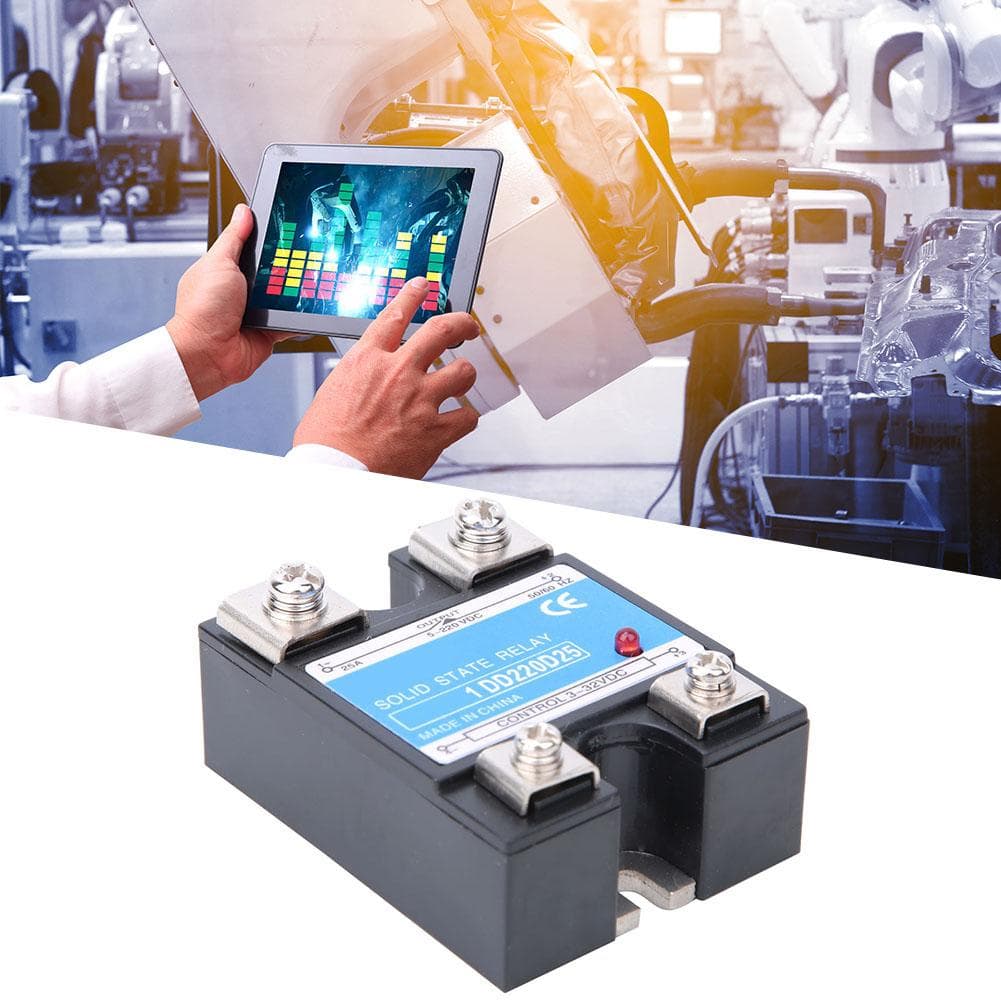

Solid State Relay DC DC SSR Input 332VDC Load 5220VDC Control Relay(120A )

About this item

• Feature: 1. Aluminum radiating base plate for fast heat dissipation. 2. SCR and photoelectric composition, no contact switch, DC control DC. 3. Easy to install and wide applications. 4. With LED working status indicator light. 5. Fitted with screw terminals for easy wiring, no soldering required. Specification: Item Type: DCDC Solid State Relay Control Voltage: 332VDC Control Current: DC412mA Load Voltage: 5220VDC Load Current: 10A25A40A60A75A80A100A120A (optional) OnState Voltage Drop: less than 1.5V OnState Leakage Current: less than 2mA OffState Time: less than 10ms Insulation Resistance: 500M Ohm 500VDC Ambient Temperature: 30~70 degrees C Mount Method: Bolted Work Indicator: LED Product Size: 30x44x59mm 1.18x1.73x2.32in Package List: 1 x Solid State RelayAluminum radiating base plate for fast heat dissipation. SCR and photoelectric composition, no contact switch, DC control DC. Easy to install and wide applications. With LED working status indicator light. Fitted with screw terminals for easy wiring, no soldering required.
