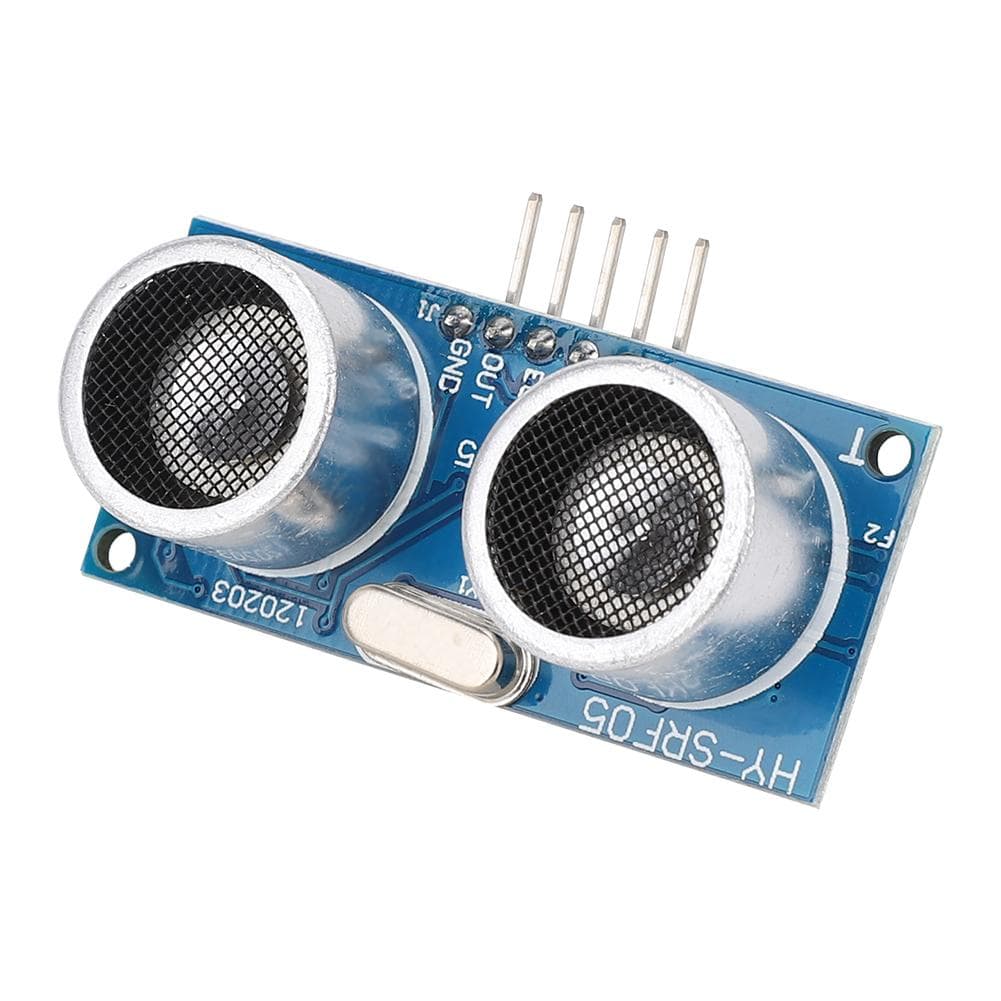

HYSRF05 Five Pin Ultrasonic Ranging Sensor Distance Measuring Module

About this item

• Feature: 1. Provide 2cm450cm 0.8in14.8ft noncontact distance sensing function, ranging accuracy up to 3mm 0.1in. 2. This module can accurately measure distance by using ultrasonic ranging principle. 3. This is a high performance, low cost ultrasonic ranging module. 4. Exquisite workmanship ensures long service life. Easy to replace and use. 5. Input trigger is 10us TTL pulse and output echo is output TTL level signal, proportional to the range. Specification: Condition: 100percent Brand New Item Type: Ultrasonic Module Material: Semiconductor v\:* {behavior:url(#default#VML);} o\:* {behavior:url(#default#VML);} x\:* {behavior:url(#default#VML);} .shape {behavior:url(#default#VML);} Electric Specicication HYSRF05 Ultrasonic Module Working Voltage DC 5V Working Frequency 40Hz Longrange 450cm 14.8ft Close Range 2cm 0.8in Measuring Angle 15 degrees Input Trigger 10us TTL Pulse Output echo Output TTL level signal, proportional to the range Size 45x20x15mm 1.8x0.8x0.6in Pins: Vcc Pin: Connect to 5V DC power Trig Pin: Trigger control, signal input Echo Pin: Echo output Out Pin: Onoff output GND Pin: Ground connection Package List: 1 x Ultrasonic Module Note: Please allow 13cm error due to manual measurement. Thanks for your understanding.Provide 2cm450cm 0.8in14.8ft noncontact distance sensing function, ranging accuracy up to 3mm 0.1in. This module can accurately measure distance by using ultrasonic ranging principle. This is a high performance, low cost ultrasonic ranging module. Exquisite workmanship ensures long service life. Easy to replace and use. Input trigger is 10us TTL pulse and output echo is output TTL level signal, proportional to the range.
