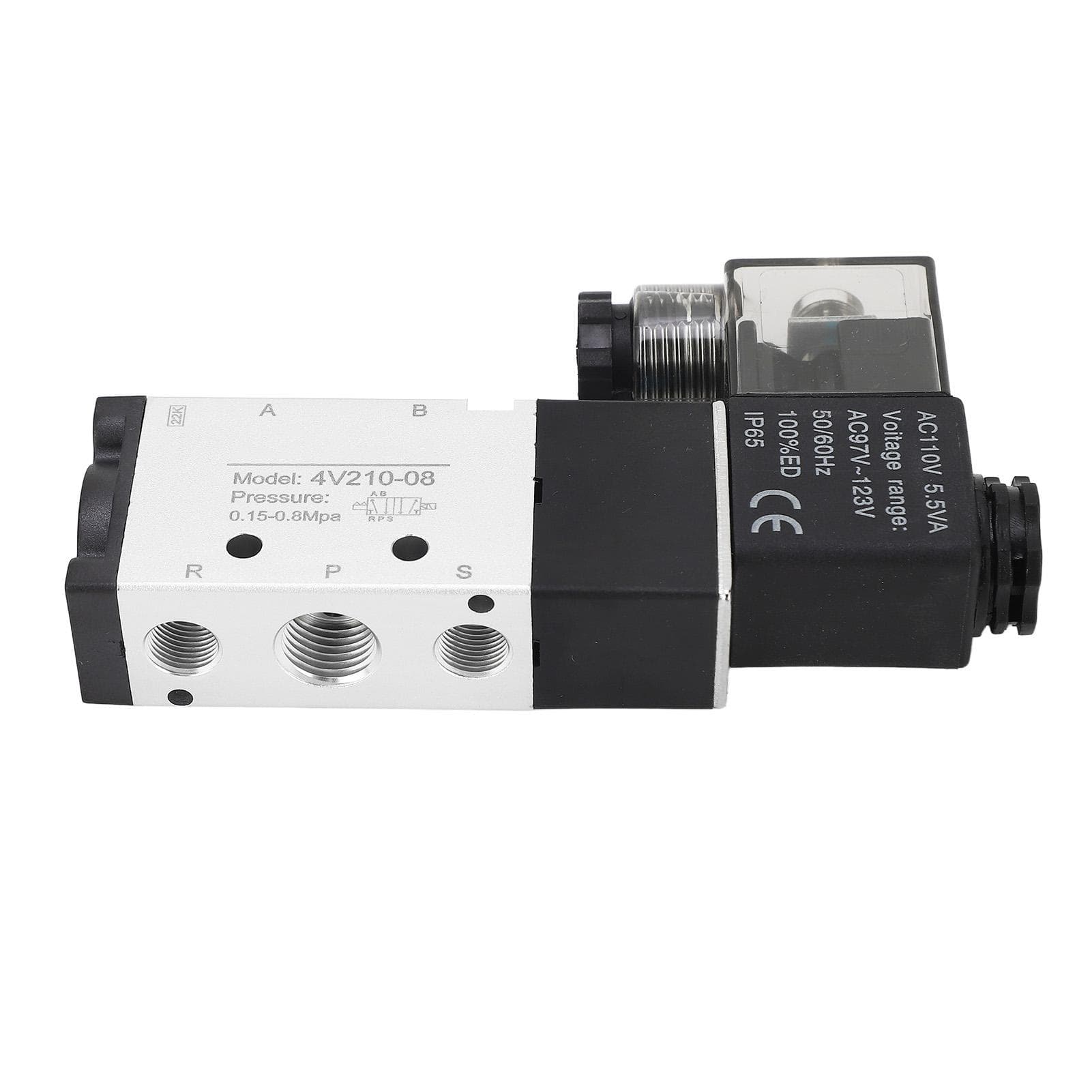

4V210?08 Electric Solenoid Valve 2 Position 5 Way Cylinder Control Reversing Valve Pneumatic Air

About this item

• Feature: 1. HIGH POWER COIL: 2 position 5 way solenoid valve, valve body adopts 0.04um mirror inner wall, full turns full power coil to ensure long term work without burning. 2. SEALING RING: Adopting self lubricating sealing ring, with 6 ring precise stem, high accuracy pilot, 5s per time response high frequency without blocking. 3. STANDARD PORT: This pneumatic solenoid valve has standard PT 14in air port, a PT18 exhaust silencer, and a maximum operating frequency of 5 times per second. 4. WORK PRINCIPLE: When the coil is powered off, the air solenoid valve remains open, and closes when energized, and the inner nut can be removed without tools. 5. PRESSURE RANGE: The pneumatic electric solenoid valve adopts a direct acting working mode, with a pressure range of 0.15?0.8Mpa, to meet more control needs. Specification: Item Type: Solenoid Valve Material: Aluminum Alloy Product Voltage: AC110V Working Medium: Air Pressure Range: 0.150.8Mpa Working Mode: Direct Acting Power: 4.8W Working Temperature: 32140 Fahrenheit Protection Grade: IP65. Package List: 1 x Solenoid ValveHIGH POWER COIL: 2 position 5 way solenoid valve, valve body adopts 0.04um mirror inner wall, full turns full power coil to ensure long term work without burning. SEALING RING: Adopting self lubricating sealing ring, with 6 ring precise stem, high accuracy pilot, 5s per time response high frequency without blocking. STANDARD PORT: This pneumatic solenoid valve has standard PT 14in air port, a PT18 exhaust silencer, and a maximum operating frequency of 5 times per second. WORK PRINCIPLE: When the coil is powered off, the air solenoid valve remains open, and closes when energized, and the inner nut can be removed without tools. PRESSURE RANGE: The pneumatic electric solenoid valve adopts a direct acting working mode, with a pressure range of 0.15?0.8Mpa, to meet more control needs.
