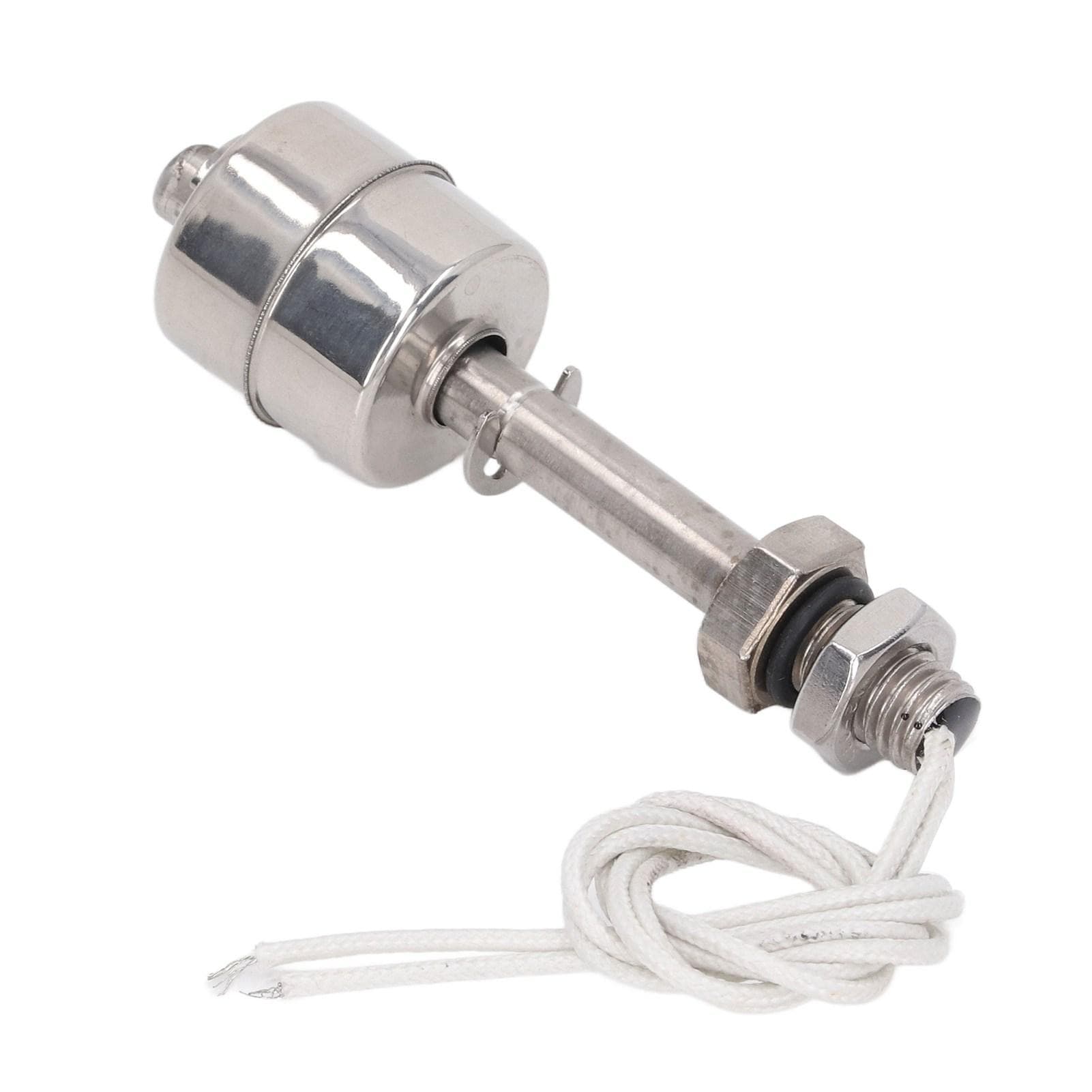

Float Water Level Switch Stainless Steel Liquid Level Controller Sensor 5Mpa 10mm Stroke 0?220V

About this item

• Feature: 1. WORKING RANGE: The float level switch can work at 0220V AC and 0200V DC, and can withstand up to 5Mpa, enabling it to work in most environments. 2. STAINLESS STEEL: The float ball is made of 304 stainless steel, the clamp spring is made of 316L material, rust and corrosion resistant, extends the service life. 3. APPLICABLE MEDIUM: The control range of the float switch is 10mm, which can be used for water, oil, alcohol and other medium, which is accurate and stable. 4. WIDE APPLICATION: Can be used for liquid level control of water dispenser, water heater, solar energy, air conditioner, bathroom equipment, vending machine, oil tank, etc. 5. EASY CONNECTION: The liquid level sensor has a compact structure and standard wiring, which is convenient for connection and use, stable and reliable. Specification: Item Type: Water Level Switch Stroke: Approx. 10mm 0.4in Measuring Medium: Water, oil and alcohol, specific gravity greater than 0.8 Working Voltage: 0220V Working Current: 0.5 A1A Material: SUS304, SUS316 Stainless Steel Medium Temperature: 20120 celsius Operating Temperature: 0120 celsius Maximum Temperature Resistance: 120 celsius Working Pressure: 1Mpa Maximum Withstand Voltage: 5Mpa Maximum Power: Low Voltage: 10W, High Voltage: 50W Maximum Switching Current: Low Voltage: 0.5A High Voltage: 1.5A . Package List: 1 x Water Level Switch Note: 1. The float ball is made of 304 stainless steel, and the clamp spring is made of 316L.2. Low voltage means that the float switch can be used for 0?110V DC voltage circuit.3. High voltage refers to float switch, which can be used for AC 0?220V and DC 0?200V wire.4. High temperature resistance means that the float switch can withstand 120 celsius for a long time.5. High temperature and high pressure are white silicone high temperature wires, and low pressure are ordinary black wires6. Float switch cannot directly control solenoid valve, high power relay, AC contactor, etc. Add a small relay for conversion.7. The float stroke is 10mm, that is, the control range is 10mm. If the control range is large, it can be used in 2 combinations, one long and one short.WORKING RANGE: The float level switch can work at 0220V AC and 0200V DC, and can withstand up to 5Mpa, enabling it to work in most environments. STAINLESS STEEL: The float ball is made of 304 stainless steel, the clamp spring is made of 316L material, rust and corrosion resistant, extends the service life. APPLICABLE MEDIUM: The control range of the float switch is 10mm, which can be used for water, oil, alcohol and other medium, which is accurate and stable. WIDE APPLICATION: Can be used for liquid level control of water dispenser, water heater, solar energy, air conditioner, bathroom equipment, vending machine, oil tank, etc. EASY CONNECTION: The liquid level sensor has a compact structure and standard wiring, which is convenient for connection and use, stable and reliable.
