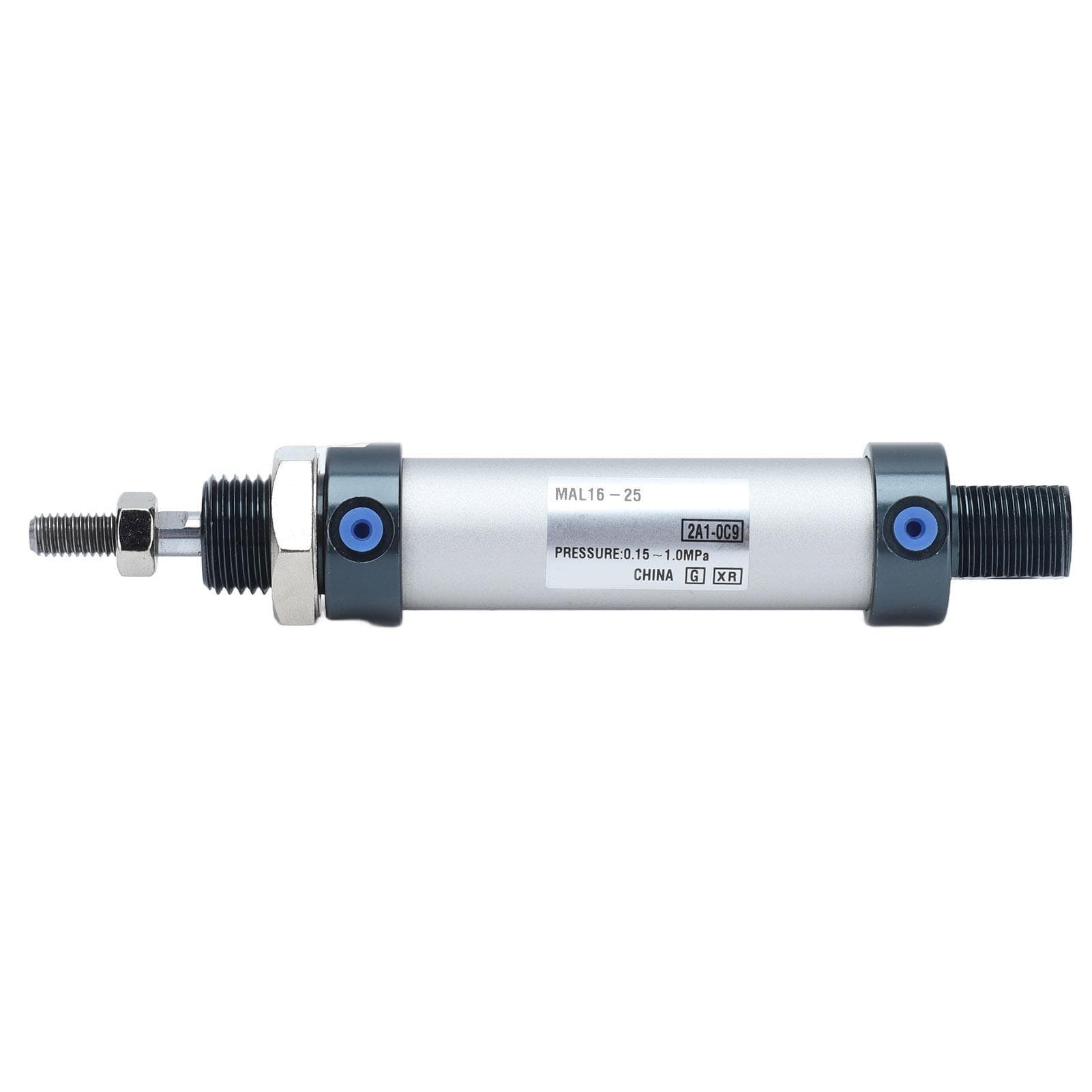

Pneumatic Cylinder Mini Double Action Single Rod Aluminum Alloy Cylinders MAL16?25

About this item

• Feature: 1. Aluminum Alloy Material: High accuracy aluminum alloy cylinder, surface electroplating treatment, high strength, no deformation, not easy to corrode. 2. High Quality Sealing Ring: The cylinder is equipped with high quality sealing ring, which is wear resistant, leakage resistance, and tightly connected in size. 3. Stable Performance: This is a cylinder with stable performance and the same appearance and high efficiency without jamming. 4. Application: Cylinders are mainly used in pneumatic and hydraulic systems, such as presses, pneumatic and hydraulic system maintenance, etc. 5. Easy Installation: This cylinder is easy to install, stable in operation, good in sealing performance and wide in application. Specification: Item Type: Pneumatic Cylinder Material: Aluminum Alloy Model: MAL1625 Action Form: Reciprocating Type Working Medium: Air Pressure Range: 0.15~1.0MPa Operating Temperature: 5~70 celsius End Caps Thread: M16 Inlet Thread: M5 Piston Rod Thread: M6. Package List: 1 x Cylinder Note: 1. When the load changes during work, a cylinder with sufficient output power should be selected;2. Under high temperature or corrosive conditions, corresponding high temperature or corrosion resistant cylinders should be selected3. The cylinder needs to be protected when there is high humidity, a lot of dust, water droplets, oil stains, and welding slag;4. Before the cylinder is connected to the pipeline, the dirt in the pipeline must be cleared to prevent debris from entering the cylinder5. The cut off of the cylinder should be filtered by a filter element above 40M before can be used.6. In low temperature environment, freezing resistance measures should be taken to prevent the water sealing in the system from thawing;7. Avoid side load, otherwise the piston rod will easily deform and damage the thread. Load when single action type cannot return;8. It is not practical to remove the cylinder for a long time. Pay attention to rust prevention. Dust proof blocking caps should be added to the intake and exhaust ports.9. The front and rear covers are not removableAluminum Alloy Material: High accuracy aluminum alloy cylinder, surface electroplating treatment, high strength, no deformation, not easy to corrode. High Quality Sealing Ring: The cylinder is equipped with high quality sealing ring, which is wear resistant, leakage resistance, and tightly connected in size. Stable Performance: This is a cylinder with stable performance and the same appearance and high efficiency without jamming. Application: Cylinders are mainly used in pneumatic and hydraulic systems, such as presses, pneumatic and hydraulic system maintenance, etc. Easy Installation: This cylinder is easy to install, stable in operation, good in sealing performance and wide in application.
