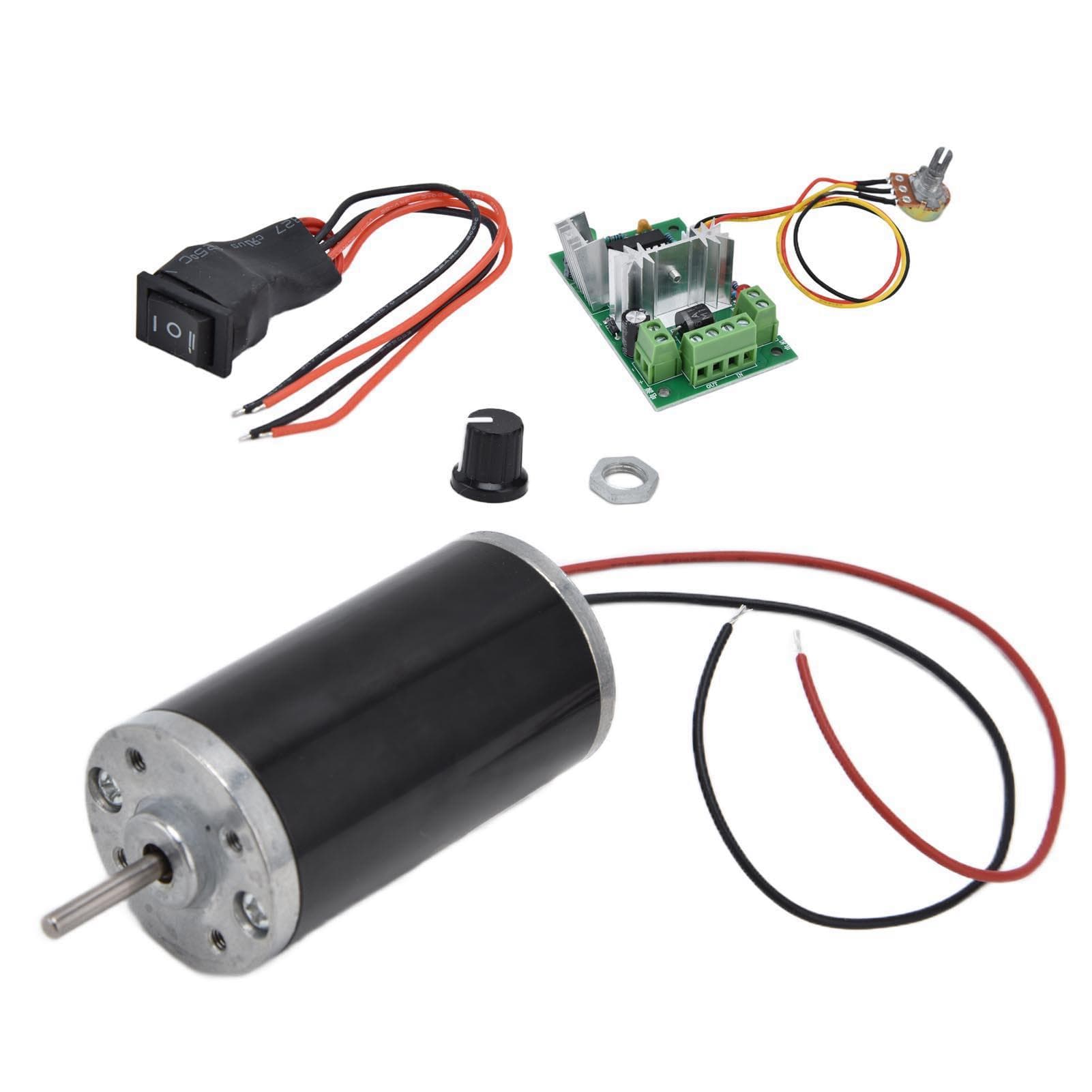

DC Permanent Magnet Motor Low Noise Mini High Speed CW CCW Motors for DIY Generator24V3500RPM

About this item

• Feature: 1. The DC motor adopts exactness machining, magnetic material treatment and insulation treatment, and its function is stable and reliable. 2. The DC motor has a large torsion , not only has low noise, but also has stable performance. 3. The motor adopts wear resistant metal gears, which can prevent teeth from breaking and prolong the service life of the motor. 4. The motor adopts pure copper wire coil, which has the characteristics of low heat and low loss. 5. The DC motor can cooperate with the governor to control the speed, and it can be CW and CCW. Specification: Item Type:DC Permanent Magnet MotorItem Type:DC Permanent Magnet Motor Model: 31ZY Type: Permanent Magnet DC Motor Rated Voltage: 624 (V) Parameters: (Corresponding to the Table Below According to the Title Speed) Using Voltage V Operating Voltage (V)6V12V12V24V24V24VNo Load Current (mA) less than 180 less than 110 less than 350 less than 40 less than 100 less than 200No Load Speed (rpm)400040008000350050008000Rated Torsion (g.cm)100100200120200200Rated Speed (rpm)320032006500290840006600Rated Current (A) less than 0.8 less than 0.5 less than 1.6 less than 2.3 less than 0.6 less than 1.0Locked Rotor Torsion (g.cm) more than 500 more than 600 more than 1000 more than 669 more than 850 more than 1200Locked Rotor Current (A) less than 3.3 less than 2.3 less than 6.5 less than 1.06 less than 2.0 less than 4.4CCM2 DC Motor Speed Regulator Product Output DC Motor Regulator CW CCW Control This governor uses PWM speed control technology, which has the characteristics of high conversion efficiency, wide speed range and stable performance. All use imported STMicroelectronics original chips, which have been tested for voltage, current, function, etc. before leaving the factory, and the circuit is stable and reliable. Technical Parameter: Model: CCM2 Working Voltage: DC10V30V Control Power: 12V x 3A=36W, 24V x 3A=72W Greater than 24V, Maximum 120W Rated Current: 3A Maximum Current: 5A PWM Pulse Width Adjustment System Range: 5percent 95percent Potentiometer: Resistance Value B10K, Wire Length 20CM, Opening 8mm, Output Voltage: About 0100percent of the Input Voltage Speed Governor Size: Approx. 74 x 47 x 28mm 3 x 2 x 1.1in Potentiometer is used for speed regulation CW CCW switches are used to control CW, CCW, and stop Note: Motor 1. When you use the motor, there should be no binding objects. For example, the adhesive should not flow into the bearing through the rotating shaft, which will hinder the operation of the motor. 2. The rotation of the shaft may have the opposite effect on the life of the motor. In order to prolong the life, please check whether your load is in accordance with the regulations. Do not overload or have objects that hinder rotation at the end of the shaft. 3. Manufactured into an eccentric heavy radiation load, which is harmful to the life of the motor. 4. Do not store in surrounding high temperature or extreme humidity, and do not place in corrosive gas, which will reduce the effect of the motor. 5. Do not run the motor in the surrounding high temperature and humidity. 6. When soldering is needed on the positive and negative motor terminals of the power supply, the temperature of the soldering iron is 340 celsius +40 celsius , and the heating time is within 3 seconds. Do not deform the plastic. Let the soldering spot flow into the motor or break the end of the wire during work. Motor function declines. 7. Do not let the motor shaft get stuck. When the power is supplied, the motor will overheat in a short time and its accessories will be burnt. 8. Due to the lack of skills of the staff, the quality of the motor cannot be guaranteed when it encounters the things mentioned in the manual, or the superficial judgment is obviously fault. 9. Supply the specified power and be sure that it is within the range of measurable requirements. 10. The installation of pulleys or gears should not be abnormally aggravated when pressed in. 11. When installing the motor, if the screw is too long, it will cause contact between the motor itself and the rotor, which will affect the characteristics. Governor 1. The input of the DC motor speed controller is DC, and it cannot be directly connected to AC (such as household 220V AC motors), otherwise it will burn out. 2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged. 3. The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the wire sequence. 4. The potentiometer knob can change the duty cycle of the governor output, thereby changing the motor speed. Package List: 1 x Motor1 x Governor1 x CW CCW Switch1 x Knob Cap1 x Washer Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.The DC motor adopts exactness machining, magnetic material treatment and insulation treatment, and its function is stable and reliable. The DC motor has a large torsion , not only has low noise, but also has stable performance. The motor adopts wear resistant metal gears, which can prevent teeth from breaking and prolong the service life of the motor. The motor adopts pure copper wire coil, which has the characteristics of low heat and low loss. The DC motor can cooperate with the governor to control the speed, and it can be CW and CCW.
