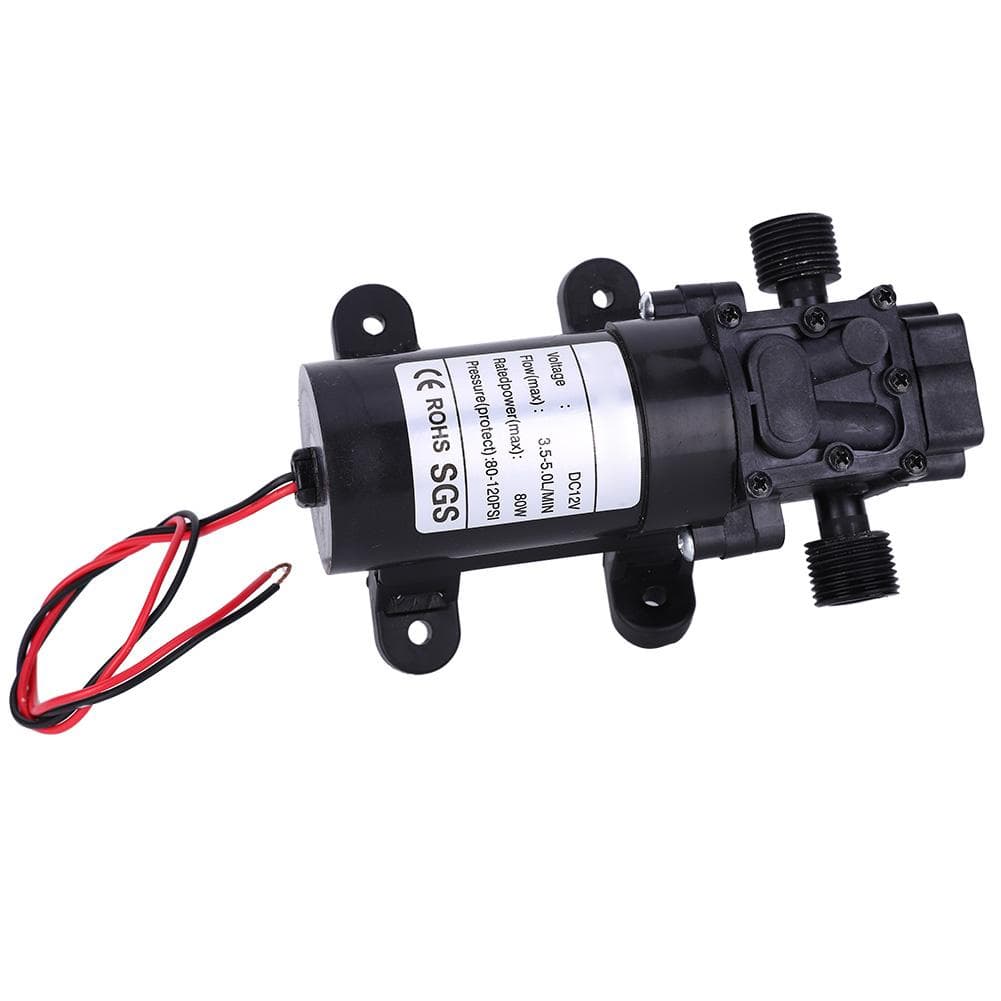

Backflow Diaphragm Pump Mini Self Priming DC12V FL3210H80W 12in Right Water Outlet

About this item

• Feature: 1. The utility model has a simple structure and adopts a sealing structure combining a valve ball and an elastic crossshaped stop pin, which is convenient to process 2. The sealing effect is good, which can ensure the longterm efficient operation of the diaphragm pump 3. By installing an overpressure automatic pressure relief device on the pump body, the structure is simple 4. With oil resistance, heat resistance, acid resistance, alkali resistance, corrosion resistance, wear resistance and other properties 5. Small size, small current, high pressure and low noise Specification: Item Type: Backflow Diaphragm PumpModel: FL3210H80W (12 inch threaded pipe, right water outlet) Material: Engineering Plastic Drive Mode: Electric Uses: Boost pump Pump Shaft Position: Horizontal Impeller Structure: Closed impeller Number Of Impellers: Multilevel Impeller Suction Method: Single suction Principle: Diaphragm pump Performance: Corrosion resistance Transmission Medium: Clean water pump Speed: 4800 (r m) Power: 0.08 (KW) Protection Pressure: 80120PSI Heatresistant Temperature: 60 celsius Flowing Rate: 3.55 liters min Control Type: Intelligent pressure switch Motor: Permanent magnet DC motor Voltage: DC12V Thread Diameter: 12 inch = 12.7mm. Package List: 1 x Backflow Diaphragm PumpThe utility model has a simple structure and adopts a sealing structure combining a valve ball and an elastic crossshaped stop pin, which is convenient to process The sealing effect is good, which can ensure the longterm efficient operation of the diaphragm pump By installing an overpressure automatic pressure relief device on the pump body, the structure is simple With oil resistance, heat resistance, acid resistance, alkali resistance, corrosion resistance, wear resistance and other properties Small size, small current, high pressure and low noise
