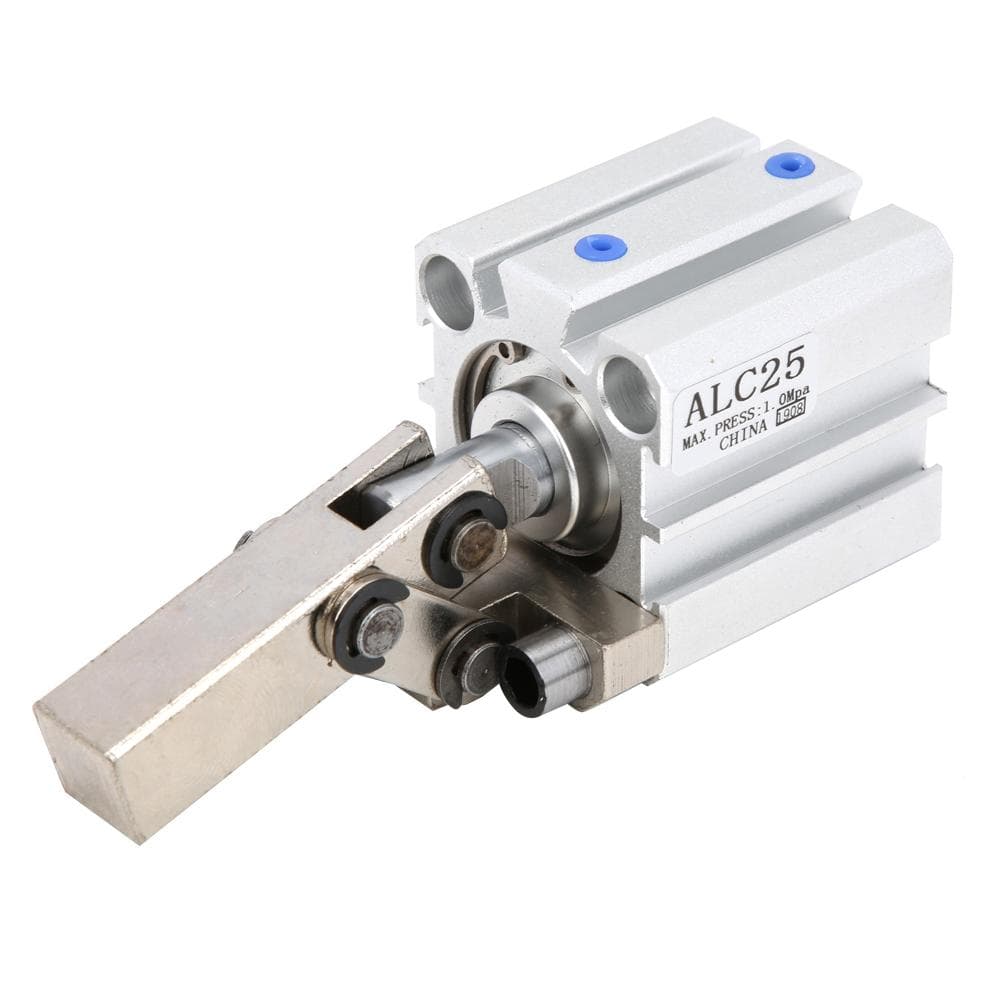

ALC Clamp Arm Lever Pneumatic Cylinder Double Acting Air Cylinder Without MagneticALC25

About this item

• Feature: 1. Doubleacting operation method, strong power. 2. High precision piston rod, stable and durable. 3. Smooth crosssection, smooth work, strong corrosion resistance. 4. Precision fitting, no lubrication required, good use effect. 5. Made of highquality metal material, the inner wall surface is smooth, wearresistant, long service life. Specification: Item Type: Air Cylinder Optional Model: ALC25, ALC32, ALC40, ALC50 Bore Diameter x Inlet Hole Thread x Stroke(mm) x Holding Force(Kgf) x Clamp Arm Opening Angle 25 x M5*0.8 x 20 x 15 x 15 x 82 degrees 32 x 18 x 20 x 25 x 73 degrees 40 x 18 x 25 x 45 x 62 degrees 50 x 14 x 30 x 70 x 80 degrees Action Form: Double Action Type Use Fluid: Compressed Air Operating Pressure Range MPa (kgfcm2): 0.151.0 (1.5~10.2) Environment and Fluid Temperature: 10~70 (less than icing) Lubricating Oil: No need Buffer: None Travel Tolerance (mm): b + 1.4 Connection Pipe Diameter: M5x0.8, 18in, 14in. Package List: 1 x Air Cylinder Doubleacting operation method, strong power. High precision piston rod, stable and durable. Smooth crosssection, smooth work, strong corrosion resistance. Precision fitting, no lubrication required, good use effect. Made of highquality metal material, the inner wall surface is smooth, wearresistant, long service life.
