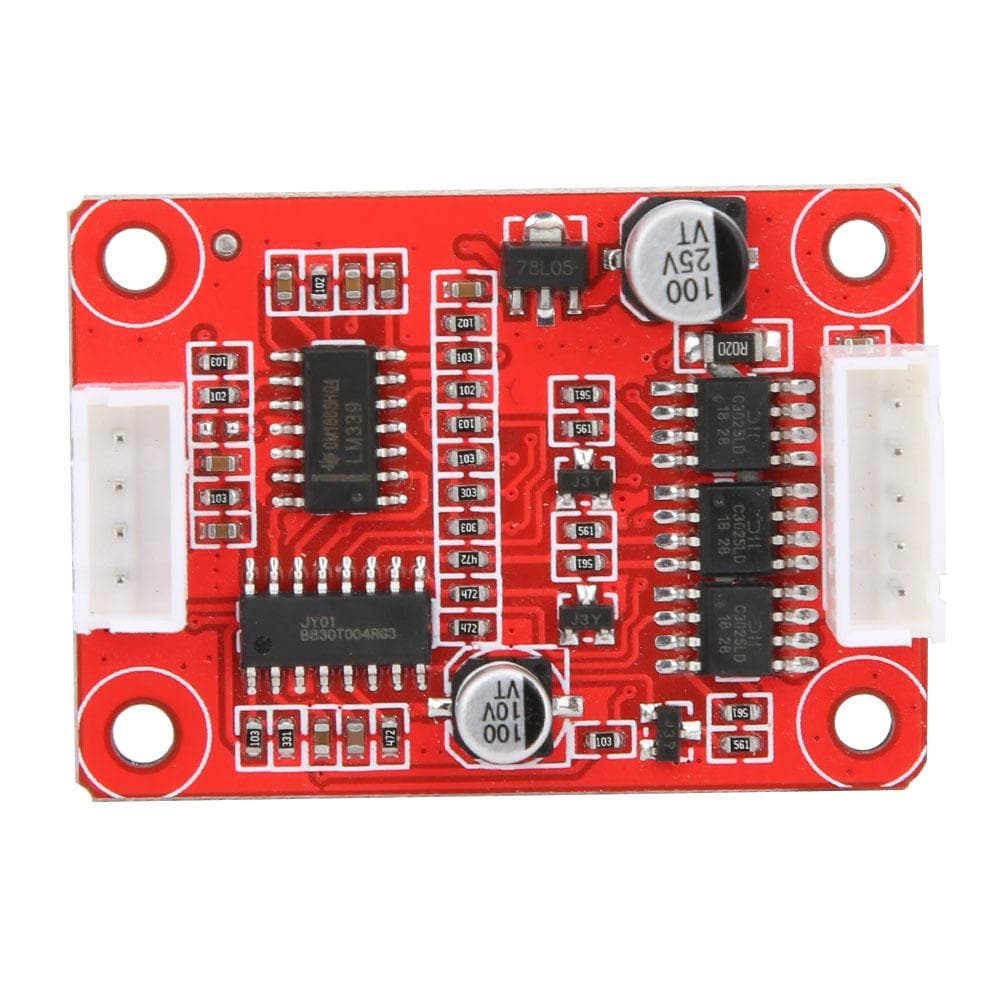

DC7.5V18V 30W Brushlesss Motor Controller Motor Driving Board CW CCW Rotation

About this item

• Feature: 1. The controller is integrates with soft rectifier function. 2. With over current protection and reverse connection protection. 3. The board can control the motor speed during 5~100percent . 4. With a potentiometer to adjust the speed of the motor. 5. The controller board can also control the rotation direction of the motor. Specification: Item Type:Motor Driver Board Working voltage: DC7.5V18V Working current: less than 3A Speed voltage: 0.25V5V Speed range: 5percent 100percent Drive power: 30W Wiring instructions: 1. Control terminal: 5V: Driver board output voltage, external speed potentiometer when used (empty when not in use) ZF: Motor rotation direction control terminal, grounding or 5V can change the direction of the motor (can be left, the steering is fixed) VR: speed signal input, voltage 0.25V5V (when the voltage of the motor is less than 0.25V the motor does not rotate) GND: shared control terminal 2, the output: Power +: Connect the positive pole of the power supply, the voltage is 7.5volts 18V Power : Power ground, then power negative MA U: Turn off every three wires of the motor MB V: every three lines of the motor MC W: every three lines of the motor Package List: 1 x Brushless Motor Driver Board1 x Speed Adjuster + Positive and Negative Switch1 x 5Pin Output Control Cable(Random Color) Note: In order to drive the motor better and more efficiently, we have divided it into 2 specifications.(Can be programmed)1, 12V ordinary, working voltage range 7.5V18V, the highest speed 3000 rpm2, 12V high speed, working voltage range 7.5V18V, the highest speed reaches 50,000 rpmThe controller is integrates with soft rectifier function. With over current protection and reverse connection protection. The board can control the motor speed during 5~100percent . With a potentiometer to adjust the speed of the motor. The controller board can also control the rotation direction of the motor.
