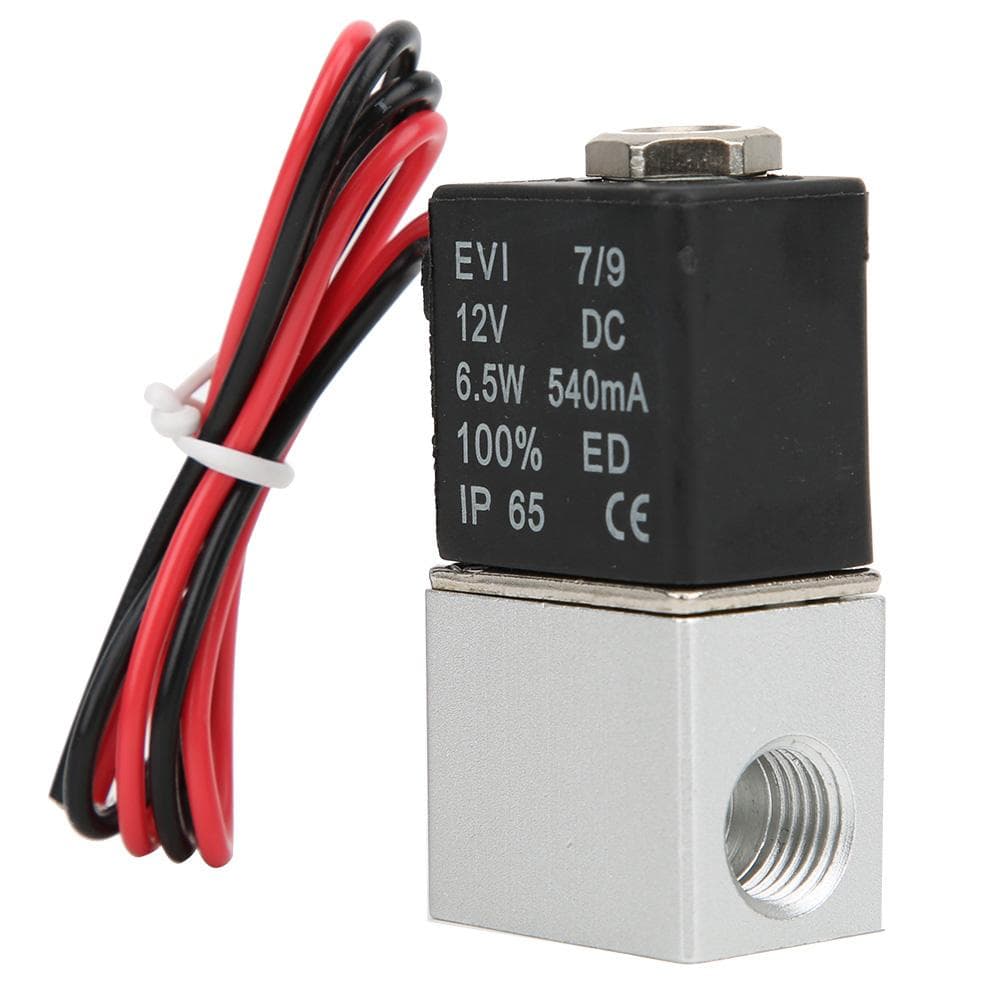

Quick Response Solenoid Valve Water Air Oil 2Position 2Way Aluminum Alloy Body Valve DC12VG14in

About this item

• Feature: 1. Made of high quality materials for durability and long service life. 2. Solenoid valve for a variety of media such as water,gas or oil. 3. Wide range of working temperature,applicable to more applications. 4. Simple and convenient to install and use. 5. With good dust and water resistance ability,the valve is more reliable in use. Specification: Item Type:Solenoid Valve Working Medium:Air Water Oil Action Type:DirectActing Flow Aperture: 2.5 CV Value: 0.23 Connector Diameter and Thread Size: G18in 8.5mm, G14in 12mm(Optional) Fluid Viscosity :< 20CST Working Pressure:0~1Mpa Maximum Pressure Resistance: 1.2MPa Operating Temperature Range: 10~+80 degrees C Operating Voltage Range: +10percent Protection Level: IP65 Power Consumption: 6WVoltage:DC12V Insulation: Class F Body Material: Aluminum Alloy Oil Seal Material: NBR Or VITON, NBR Minimum Excitation Time: 0.05Second Package List: 1 x Solenoid ValveMade of high quality materials for durability and long service life. Solenoid valve for a variety of media such as water,gas or oil. Wide range of working temperature,applicable to more applications. Simple and convenient to install and use. With good dust and water resistance ability,the valve is more reliable in use.
