Network Tool Kit 9 in 1 Portable Network Cable Combination Tool with Storage Bag for RJ45 RJ11 RJ12

About this item

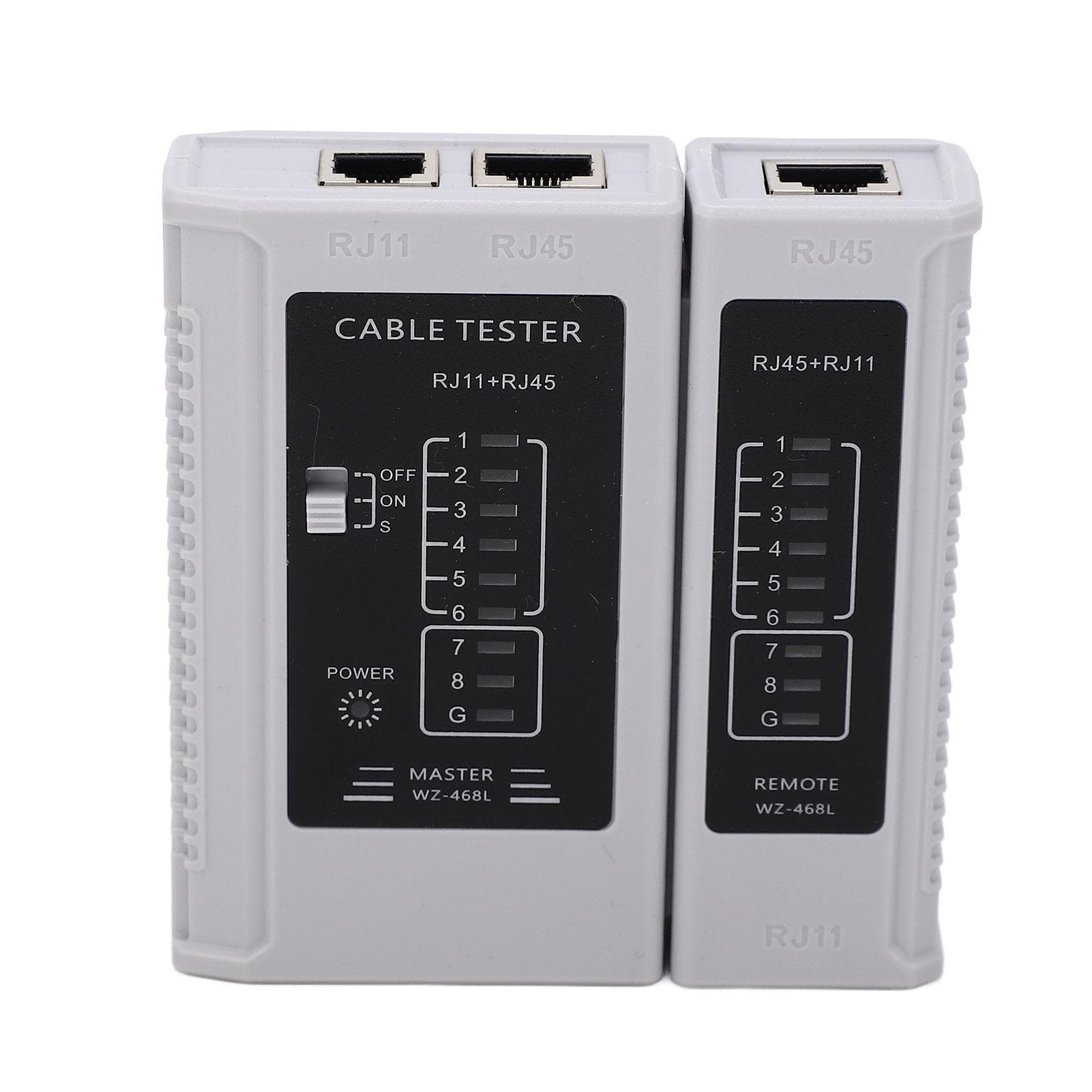

• Feature: 1. Cable Tester: The tool kit contains a multifunctional cable tester for testing telephone or network cables with a drop and light proof design. 2. Professional Set: This professional network Ethernet crimping pliers saves time and effort and greatly improves work efficiency for RJ45, RJ11, RJ12 connectors. 3. Crimping Pliers: There are 3 functions of stripping, cutting and crimping, tool holder head with full metal laminated, handle non slip, pliers with ratchet teeth, save time and effort, high efficiency of crimping. 4. Portable Storage Bag: The kit fits securely in a handy tool pouch that prevents tool damage. You can use these tools at home, in the office, in the laboratory, in the dormitory, in the repair store and in everyday life. 5. 9 in 1: The complete 9 in 1 crimping tool design allows you to cut, strip and crimp with just one Ethernet crimper. Specification: Item Type: Network Tool Kit Material: Steel Crystal Head Crimping Pliers Specifications: 4P, 6P, 8P Tester Battery: 1 section of 9V dry battery (shipped without battery) Wire Knife Range of Application: Telephone lines, network cables, monitoring lines Coaxial Stripping Pliers Range of Application: coaxial cable RG58, RG59, RG62, RG3C, RG4C Network Stripping Pliers: Round wire (UTP and STP), flat wire and multi transmission line 3.2mm9.0mm Cable tester test method. 1. twisted pair 1, 2, 3, 4, 5, 6, 7, 8, G by root (pair) test, can determine which one (pair) wrong line, short circuit and open circuit. 2. Switch OFF for off, ON for normal test speed, S for slow test speed. 3. Twisted pair test: turn on the power, the network plug into the main tester and remote tester, respectively, the host indicator lights from 1 to G flashing sequentially, the following chart example. Main tester: 1, 2, 3, 4, 5, 6, 7, 8, G Remote tester: 1, 2, 3, 4, 5, 6, 7, 8, G (RJ45) 1, 2, 3, 4 (RJ11) If the wiring is not normal, display as follows. a. When there is a network cable such as line 3 disconnected, the main tester and the remote test end 3 lights are not lit. b. When there are several lines are not working, several lines are not lit, when the network cable is less than 2 lines connected, the lights are not lit. c. When the two ends of the network line disorder, example 2, 4 lines disorder, then the display is as follows. The main tester is unchanged: 1, 2, 3, 4, 5, 6, 7, 8, G Remote test end is: 1, 4, 3, 2, 5, 6, 7, 8, G d. When there are 2 short circuit network cables, the main tester does not light up, while the remote test terminal shows that the lights of the two short circuit lines are slightly lit, and if there are more than 3 (including 3), the lights of all the short circuit line numbers are not lit when the short circuit. 4. If the measurement of wiring frame and wall mount module, two matching jumpers (such as 110P4, RJ45) are required to to the tester.. Package List: 1 x 3 Use Network Cable Plier1 x Snap Wire Knife1 x Wire Stripper1 x Cable Stripping Plier1 x Cable Stripping Knife1 x Cable Tester2 x Screwdriver10 x RJ Connector1 x Storage Box1 x Storage BagCable Tester: The tool kit contains a multifunctional cable tester for testing telephone or network cables with a drop and light proof design. Professional Set: This professional network Ethernet crimping pliers saves time and effort and greatly improves work efficiency for RJ45, RJ11, RJ12 connectors. Crimping Pliers: There are 3 functions of stripping, cutting and crimping, tool holder head with full metal laminated, handle non slip, pliers with ratchet teeth, save time and effort, high efficiency of crimping. Portable Storage Bag: The kit fits securely in a handy tool pouch that prevents tool damage. You can use these tools at home, in the office, in the laboratory, in the dormitory, in the repair store and in everyday life. 9 in 1: The complete 9 in 1 crimping tool design allows you to cut, strip and crimp with just one Ethernet crimper.
