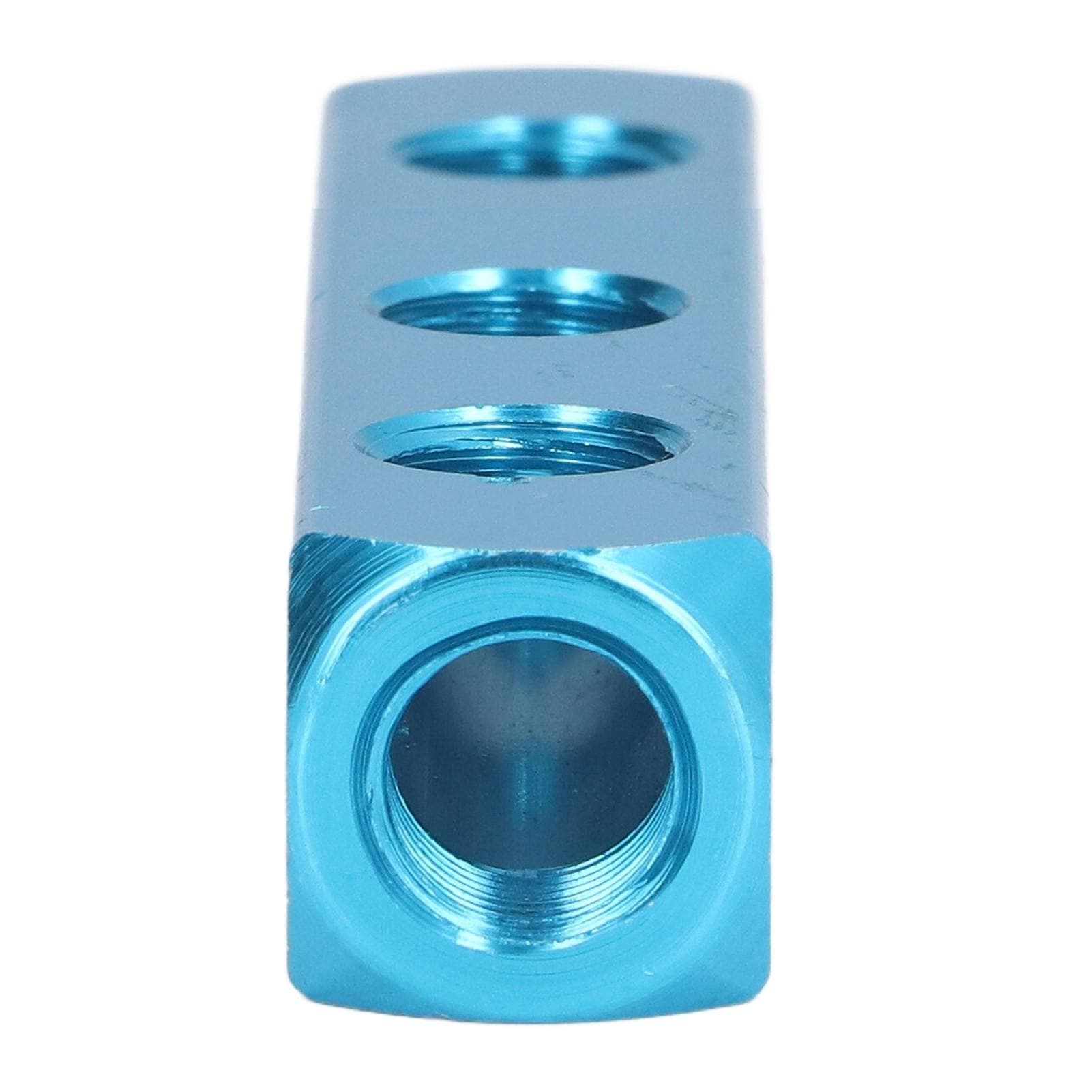

Pneumatic Manifold Block Splitter Aluminum Manifolds Air Distribution Blocks for Automation

About this item

• Feature: 1. Pure Aluminum Material: Made of pure aluminum material, corrosion resistant, rust prevention, not easy to deform, and more durable 2. Convenient Installation: This is convenient installation of the air distribution exhaust, no air leakage, good sealing 3. Application: Widely used for engineering projects such as factories, automation equipment, auto repair, electronics and electrical engineering 4. Simple Structure: Adopts the simple structure, compact size, lighter weight, easy to install and unload 5. Compatible Equipment: Manifold splitter is mainly used for air pumps, cylinders, compressors, vacuum engines, etc. Specification: Item Type: Pneumatic Manifold Block Splitter Material: Aluminum Pressure Resistance: 1.0MPA (10kgfcm) Working Pressure: 0~0.9Mpa(0~0.92kfgcm2) Adaptation Temperature: 0~60 celsius Model Total Length (Approx.) Way Number Holes Number Length x Width (Approx.) Thread Specifications Intersection Center Spacing(Approx.) AL2 65mm 2.56in 2 Way 5 Holes 20x20mm 0.80x0.80in G14(12mm) 30mm 1.18in AL3 95mm 3.74in 3 Way 6 Holes 20x20mm 0.80x0.80in AL4 125mm 4.92in 4 Way 7 Holes 20x20mm 0.80x0.80in AL5 155mm 6.10in 5 Way 8 Holes 20x20mm 0.80x0.80in AL6 185mm 7.28in 6 Way 9 Holes 20x20mm 0.80x0.80in AL7 215mm 8.46in 7 Way 10 Holes 20x20mm 0.80x0.80in AL8 245mm 9.65in 8 Way 11 Holes 20x20mm 0.80x0.80in . Package List: 1 x Pneumatic Manifold Block Splitter Note: 1. Do not unplug and insert the gas pipe frequently during the use of the connector, which will affect the service life of the connector and gas pipe2. The pipe inserted into the joint needs to be inserted to the bottom of the joint to avoid the possibility of air leakage3. When pulling out the gas pipe, first confirm that there is no pressure in the tube, press the end caps of the joint to the end and pull out the gas pipePure Aluminum Material: Made of pure aluminum material, corrosion resistant, rust prevention, not easy to deform, and more durable Convenient Installation: This is convenient installation of the air distribution exhaust, no air leakage, good sealing Application: Widely used for engineering projects such as factories, automation equipment, auto repair, electronics and electrical engineering Simple Structure: Adopts the simple structure, compact size, lighter weight, easy to install and unload Compatible Equipment: Manifold splitter is mainly used for air pumps, cylinders, compressors, vacuum engines, etc.
