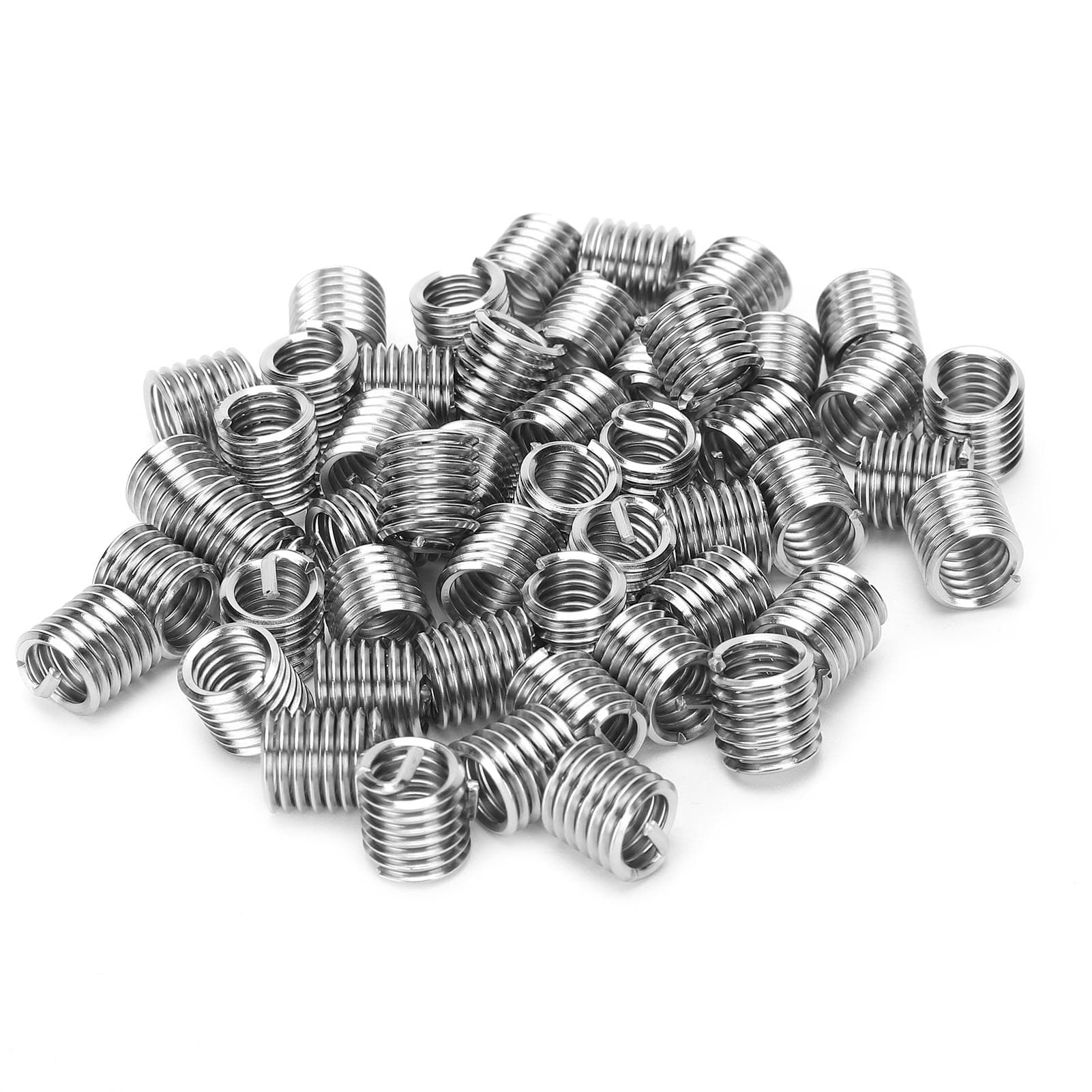

50Pcs Thread Inserts Wire Protection Sleeve Repair Tool Fastener Hardware US Standard 516in?18x1.5D

About this item

• Feature: 1. Wire thread inserts are also called threaded sheaths, stainless steel threaded sleeves, wire sleeves, which is a new type of female threaded fasteners 2. The product is made of high?strength, high?accuracy diamond?shaped cross?section steel wire, very durable 3. Application on low?strength engineering materials such as aluminum alloy, zinc alloy, alloy, copper, plastic, engineering plastics, etc. will improve thread strength and wear resistance significantly 4. When there is a thread processing error or a damaged internal threaded hole is repaired, the wire thread insert can be used as a repairing method, economically and effectively 5. You can use wire thread inserts to convert between metric and inch threaded holes, convenient and fast Specification: Item Type: Thread Inserts Material: SUS304 Model: US Standard 516in?18x1.5D Diameter: Approx. 7.938mm 0.3in Pitch: 1.41 (mm) Number of Turns Before Installation: 6.8 Length After Installation: Approx. 11.9mm 0.5in Outside Diameter Before Installation: Approx. 9.6 ~ 10.2mm 0.4 ~ 0.4in Diameter of Drilling Drill Bit for Installation: Approx. 8.3mm 0.3in Thread Protective Sleeve Model Specification Description: For Example: M3x0.5X1.5D, which means that after the screw set is completed, the internal thread is M3, the pitch is 0.5, and the length is 1.5D (length refers to 1.5 times the diameter, that is, 1.5x3=4.5mm ), the length here refers to the length after installation..How to Use: Step 1: Prepare the butt terminal, and peel off the protective layer of the part where the wire needs to be connected. Step 2: Unscrew the screw of the terminal block and prepare the stripped wire Step 3: Insert one end of the stripped wire into the terminal, and then tighten the screw Package List: 50 x Thread InsertsWire thread inserts are also called threaded sheaths, stainless steel threaded sleeves, wire sleeves, which is a new type of female threaded fasteners The product is made of high?strength, high?accuracy diamond?shaped cross?section steel wire, very durable Application on low?strength engineering materials such as aluminum alloy, zinc alloy, alloy, copper, plastic, engineering plastics, etc. will improve thread strength and wear resistance significantly When there is a thread processing error or a damaged internal threaded hole is repaired, the wire thread insert can be used as a repairing method, economically and effectively You can use wire thread inserts to convert between metric and inch threaded holes, convenient and fast
