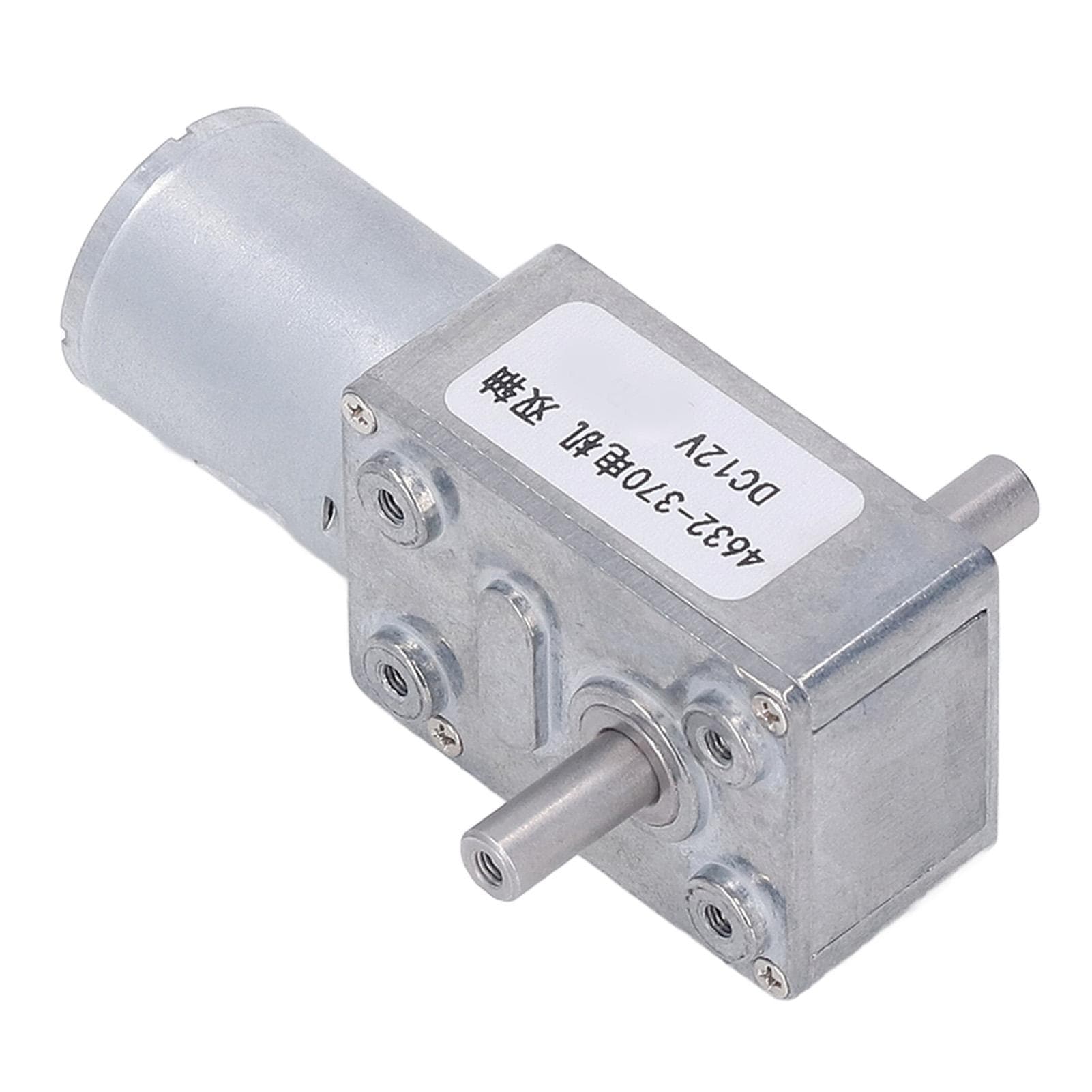

Double Shaft Gear Motor Self Locking CW CCW Aluminum Alloy Brass Coil Speed Reduction Motor DC12V

About this item

• Feature: 1. [Double Shaft] The gear motor adopts double output shaft design, which can be self locked and fixed when not powered on, safer to use. 2. [CW CCW] DC speed reduction motor supports CW CCW, the direction of rotation of the shaft can be changed by changing the positive and negative wiring. 3. [Excellent Material] Aluminum alloy shell is not easy to corrode and rust, sturdy and strong. Brass coil has better conductivity and less heat. Lubricating oil makes friction force smaller, motor operation more powerful. 4. [Metal Turbine Gear] Good wear resistance, low power consumption, slow temperature rise, low noise, allowing long term use in various harsh environments. 5. [Wide Applications] Suitable for automation equipment, medical equipment, electronic field, intelligent robot, intelligent electric, aircraft model and so on. Specification: Item Type: Double Shaft Gear Motor Material: Aluminum Alloy, Brass Parameter (Use Voltage: DC12V, Motor Speed: 6000+10percent As Standard) Reduction Ratio 340 91 65 No Load Current (mA) less than 60 less than 60 less than 60 No Load Speed (rmp+10percent ) 18 66 90 Rated Torsion (KG.cm) 12 3.27 2 Rated Current (A) less than 0.60 less than 0.60 less than 0.60 Rated Speed (rmp+10percent ) 13 48 70 Locked Rotor Torsion (KG.cm) 21 5.72 4 Locked Rotor Current (A) 1.5 1.5 1.5 . Package List: 1 x Double Shaft Gear Motor[Double Shaft] The gear motor adopts double output shaft design, which can be self locked and fixed when not powered on, safer to use. [CW CCW] DC speed reduction motor supports CW CCW, the direction of rotation of the shaft can be changed by changing the positive and negative wiring. [Excellent Material] Aluminum alloy shell is not easy to corrode and rust, sturdy and strong. Brass coil has better conductivity and less heat. Lubricating oil makes friction force smaller, motor operation more powerful. [Metal Turbine Gear] Good wear resistance, low power consumption, slow temperature rise, low noise, allowing long term use in various harsh environments. [Wide Applications] Suitable for automation equipment, medical equipment, electronic field, intelligent robot, intelligent electric, aircraft model and so on.
