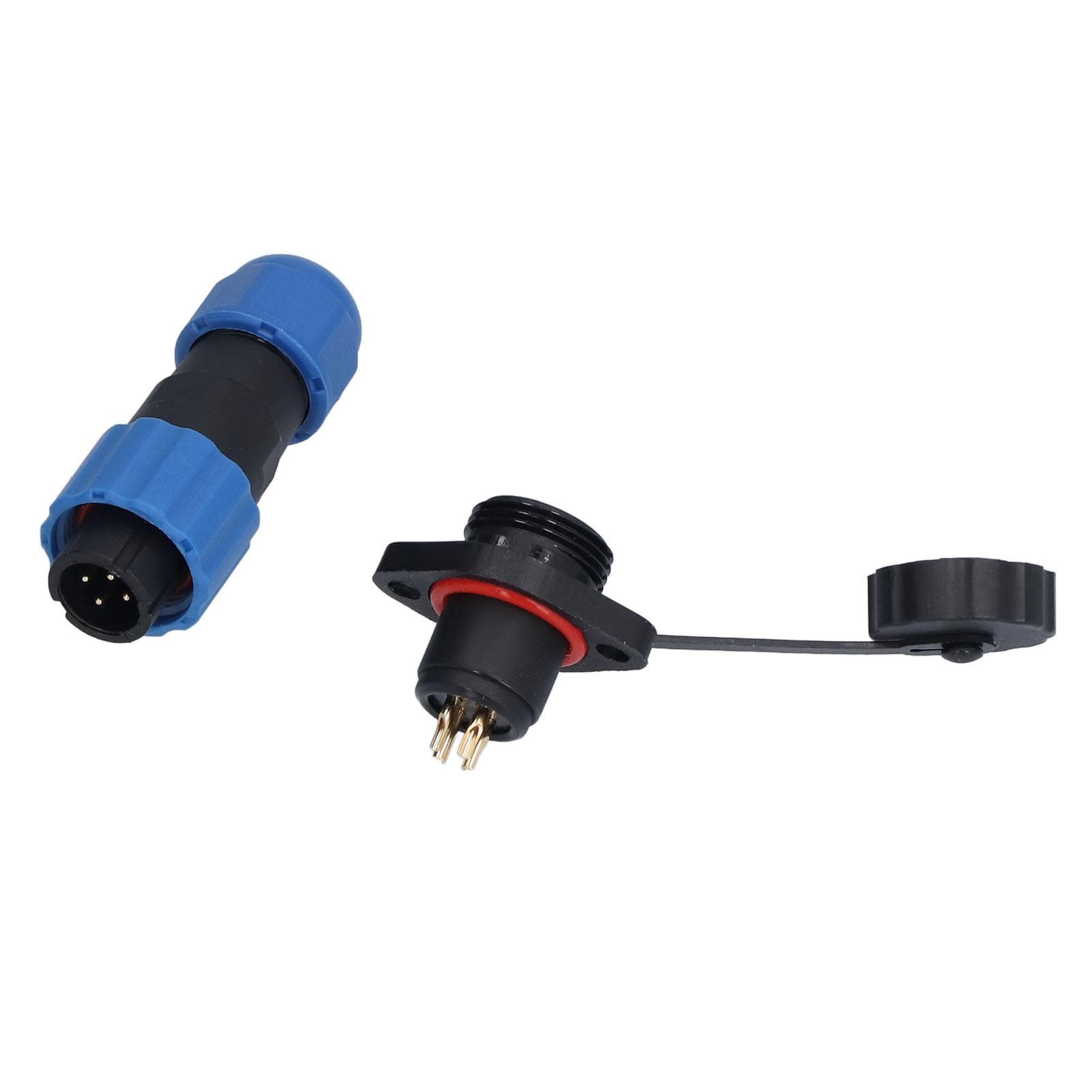

IP68 Waterproof Plug Socket Male Female Flange Mount Industrial Aviation Power Connector SP134 Pin

About this item

• Feature: 1. Simple Installation: The waterproof connector is flange installation design, and the conductive wire is connected by welding. 2. Copper Contacts: Using copper plated gold contacts, it has good electrical conductivity and oxidation resistance. 3. Durable Shell: The shell is made of PA66 and PA6, which have good corrosion resistance and flexibility, and will not crack due to low temperature. 4. IP68 Protection: IP68 aviation grade sealing waterproof, and with silicone sealing ring, the connection is tight and no leakage. 5. Multiple Usages: Widely used in communications, instrumentation, computers, program controlled machines, alarms, etc. Specification: Item Type: Waterproof Plug Socket Material: PA66, PPS, silicone, copper Uses: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms and electronic equipment, etc. Shell Material: PA66, PA6 Insulator: Thermoplastic PPS (high temperature resistant 220 celsius ) Contact Material: Copper (gold plated) Wiring Method: Soldering (if solder paste is used, it must be cleaned) Connection Method: Threaded connection Head Size: Approx. 13mm 0.5in Thread Specification: M13 x 1mm Insulation Resistance: 2000M Ohm Withstand Voltage: 1500V Shell Applicable Wire: 46mm2 Mounting Hole Distance: Approx. 22mm 0.9in Mating Times: More than 500 times Operating Temperature Range: 25 celsius to 85 celsius Tightness: Comply with IP68 Number of Core 1pin 2pin 3pin 4pin 5pin 6pin 7pin Working Voltage 380V 380V 250V 250V 250V 250V 250V Rated Current 25A 10A 5A 5A 5A 5A 5A Applicable Wire Gauge less than 4mm212AWG less than 1.5mm214AWG less than 0.75mm218AWG less than 0.75mm218AWG less than 0.75mm218AWG less than 0.75mm218AWG less than 0.75mm218AWG Copper Needle Diameter 2.8mm 1.8mm 1mm 1mm 1mm 1mm 1mm . Package List: 1 x Male Plug1 x Female Socket Note: For soldering with rosin, such as soldering with solder paste, it must be cleaned with related fluids.Simple Installation: The waterproof connector is flange installation design, and the conductive wire is connected by welding. Copper Contacts: Using copper plated gold contacts, it has good electrical conductivity and oxidation resistance. Durable Shell: The shell is made of PA66 and PA6, which have good corrosion resistance and flexibility, and will not crack due to low temperature. IP68 Protection: IP68 aviation grade sealing waterproof, and with silicone sealing ring, the connection is tight and no leakage. Multiple Usages: Widely used in communications, instrumentation, computers, program controlled machines, alarms, etc.
